4G MIFI

ZLT M30 PRO

4G MIFI

The ZLT M30 PRO is a compact 4G MiFi hotspot delivering fast wireless connectivity. Featuring Type-C PD fast charging and a long-lasting battery, it converts 4G signals (up to 150Mbps downlink) into powerful 2.4GHz Wi-Fi (802.11b/g/n) for up to 16 users. Ideal for industrial use, business travel, and home internet access.
Watch Video

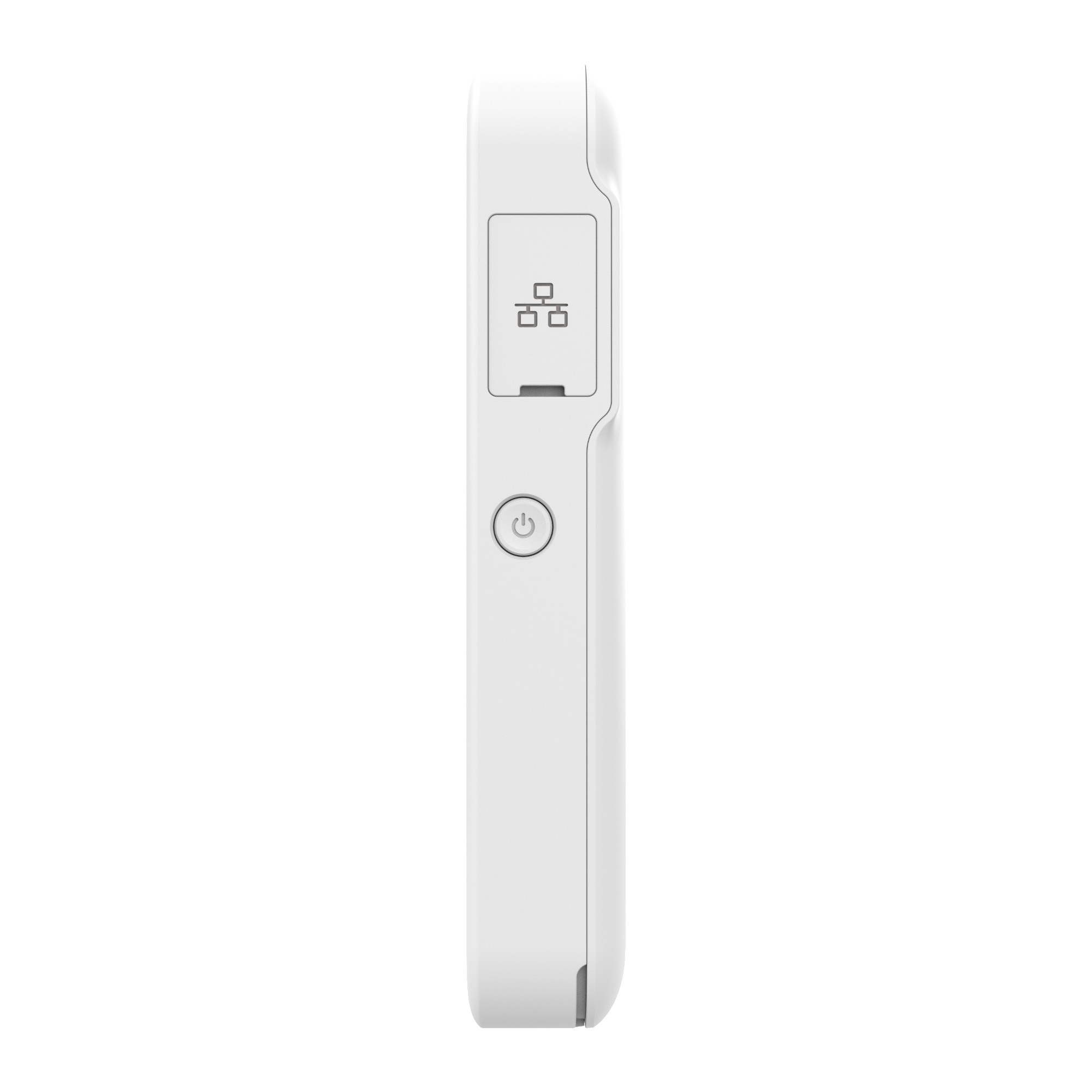

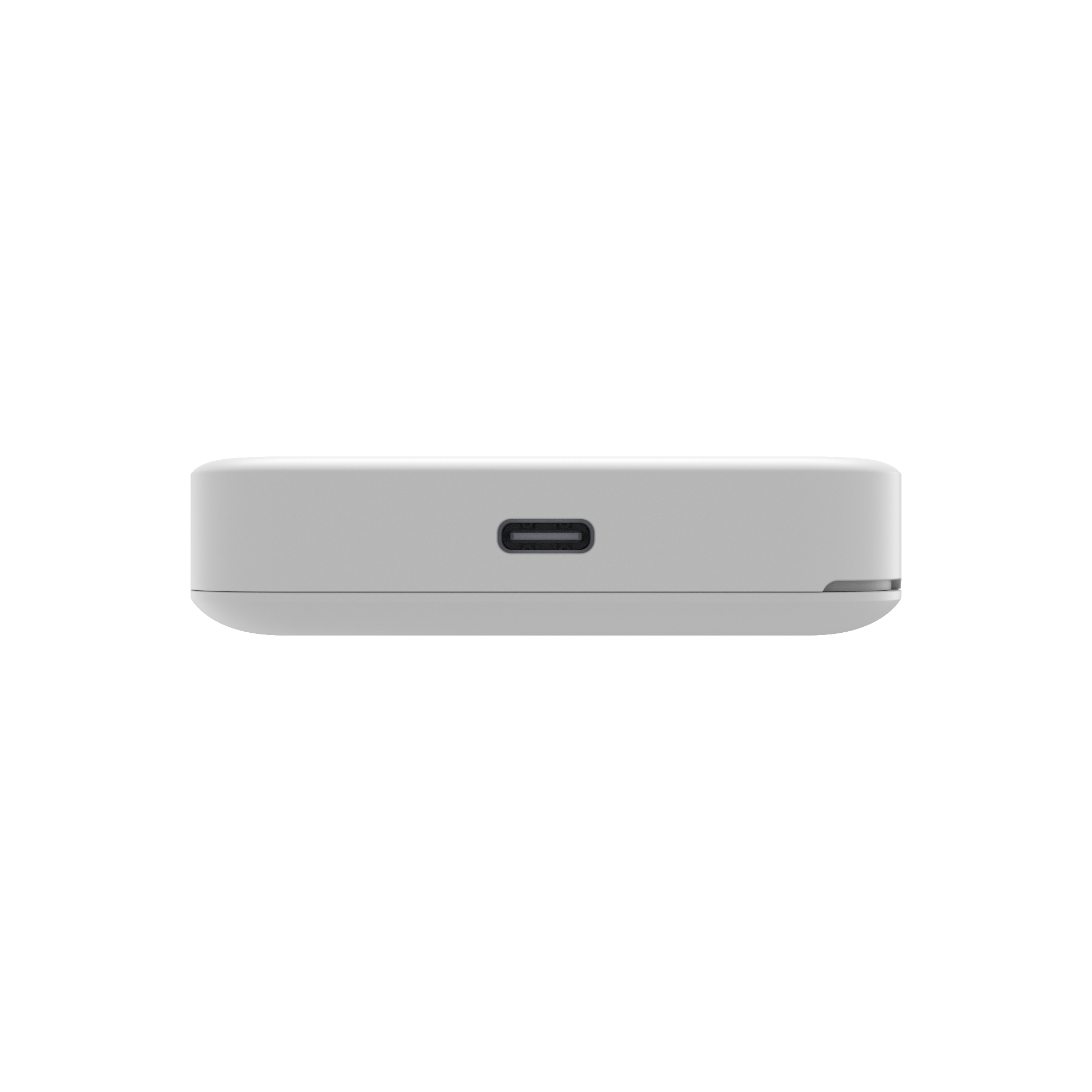

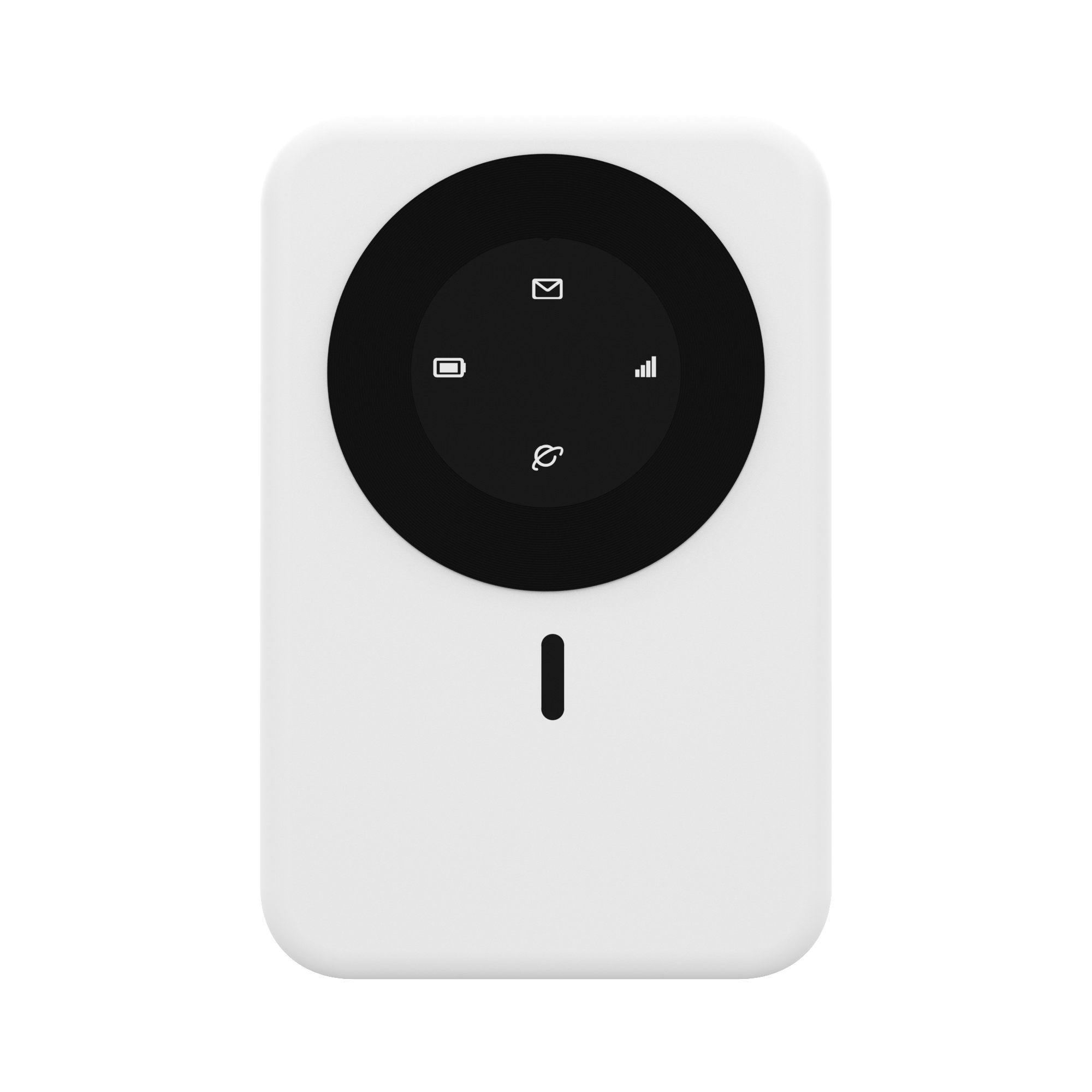

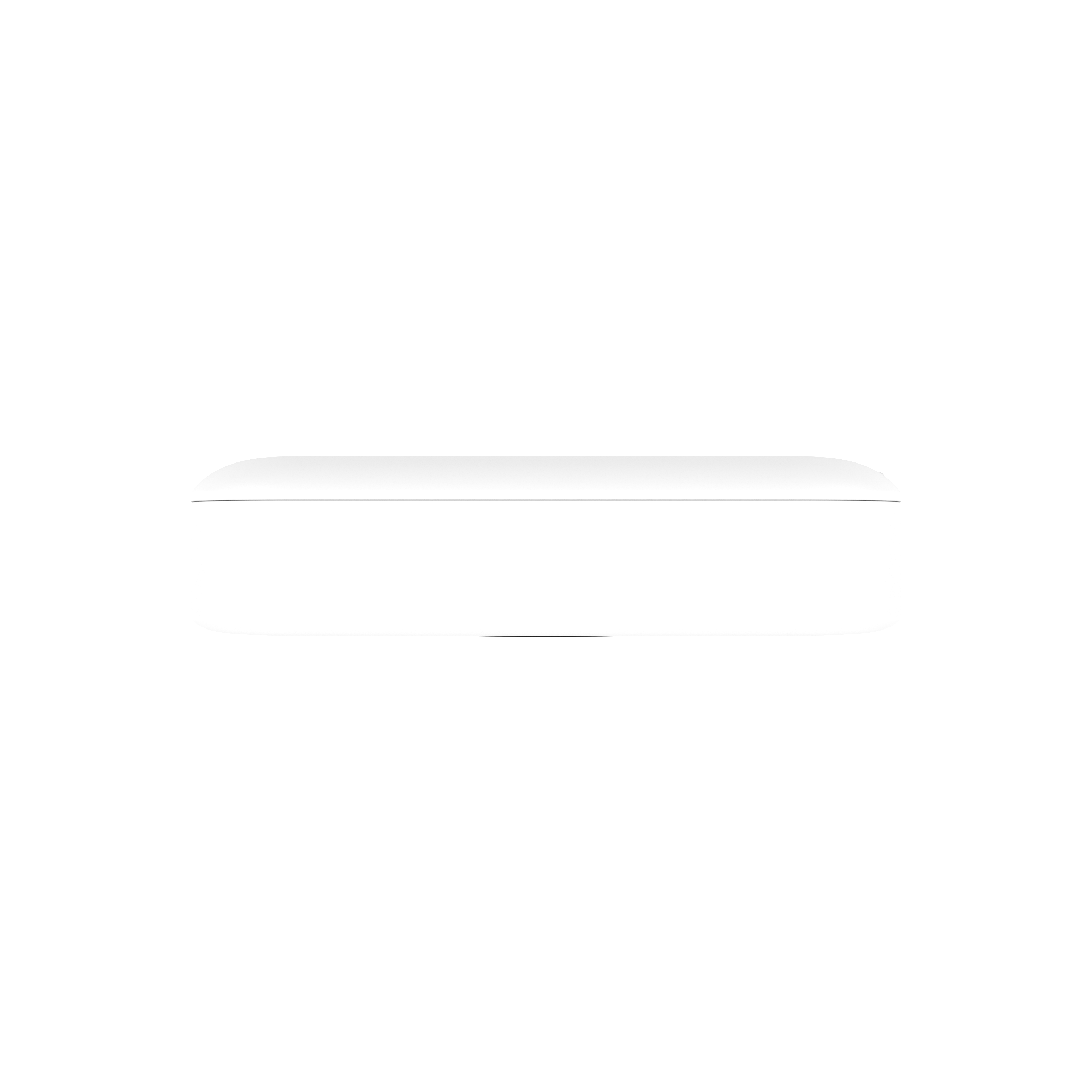

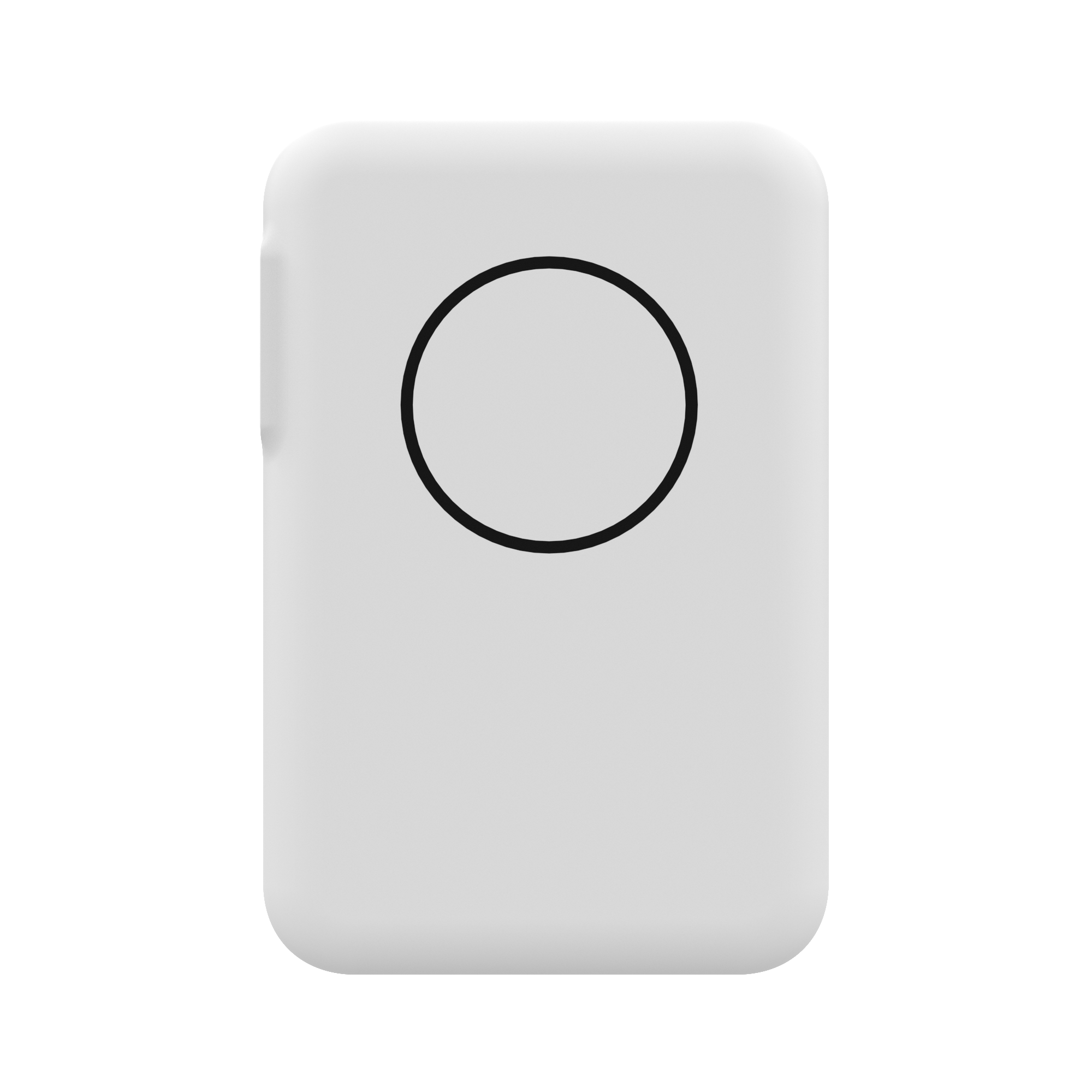

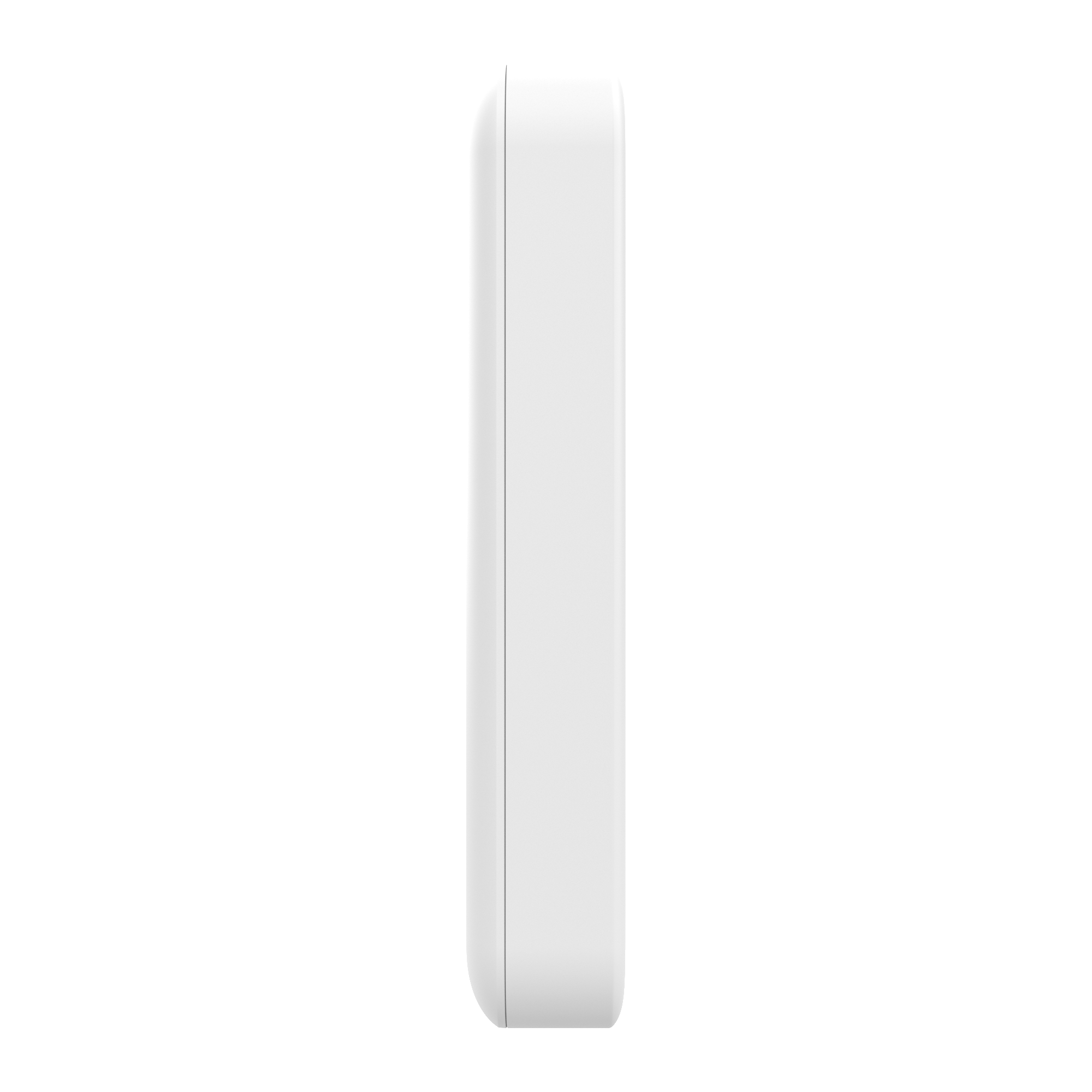

Appearance

Introduction

Stay connected anywhere with the ZLT M30 PRO, a powerful and portable 4G MiFi device. It effortlessly transforms 3G/4G cellular data into reliable Wi-Fi signals, providing high-speed internet access on the go for industrial applications, business professionals, and families. Experience fast downloads with theoretical 4G speeds reaching up to 150Mbps downlink.



●Robust Connectivity & Performance:
The M30 PRO offers strong 2.4GHz Wi-Fi (802.11b/g/n) supporting up to 16 concurrent users. Its integrated web server allows for easy configuration and management. Benefit from essential features like multiple SSIDs, SMS functionality, IPv6 support, traffic statistics, and robust firewall security.



●Designed for Convenience & Longevity:
Powering the device is simple thanks to the versatile Type-C interface with Power Delivery (PD) fast charging support. A high-capacity battery ensures extended usage time between charges. Its compact, pocket-sized design (106x70x17.2mm) makes it the perfect travel companion.



●Advanced Management & Security:
Manage your connection with ease through the web interface, featuring dual user/admin accounts. The device supports SIM PIN/PUK management, TR069 for remote platform management, and offers comprehensive security features including WPA2/WPA3-PSK encryption, MAC filtering, URL filtering, and port controls.



The ZLT M30 PRO delivers a seamless blend of speed, portability, and advanced features, making it the ideal solution for demanding mobile internet needs.

Specifications

FeatureDescription
Cellular Network ModeTDD-LTE/FDD-LTE/HSPA+/GSM
LEDDisplay battery, signal strength status, Internet status, SMS status
ButtonReset button,  Power button
InterfaceLAN Port * 1
SIM Slot * 1 (4FF)
TYPE_C power supply
Ethernet LAN1*100 Mbps
SIM1*SIM (4FF, Nano SIM)
Support 1.8V & 3.0V,
eSIM circuit is reserved
Antenna2 Built-in(WIFI),2 Built-in(LTE)
Dimensions106*70*17.2mm
Power SupplyTYPE-C 5V/1A, 3.7V battery
Battery2500mAh/3000mAh high-capacity lithium battery
Support BandsLTE:B4/B5/B7/B13/B28/B66
3G:B2/B5
2G:B2/B5
LTE Category CAT4
LTE MIMOLTE DL 2 × 2 MIMO:B4/B5/B7/B13/B28/B66
TDD/FDD LTE Peak ThroughputDL: 150Mbps
UL: 50Mbps
Wi-Fi Frequency2.4 GHz
Wi-Fi Mode2.4G:802.11b/g/n
Wi-Fi Channel BW20MHz, 40MHz
Wi-Fi MIMOMIMO 2*2 (2T2R)
Wi-Fi Concurrent Users16

Application

Home Internet Backup

Home Internet Backup

Outdoor Live Streaming

Outdoor Live Streaming

Office Network

Office Network

In-car Hotspot

In-car Hotspot

SMB Point-of-Sale Connectivity

SMB Point-of-Sale Connectivity

Business Travelers' Mobile Office

Business Travelers' Mobile Office
