ZLT M92

Developed by Tozed Kangwei Tech Co., Ltd., the ZLT M92 is a high-performance wireless communication hub built for demanding 4G network applications. It excels in providing critical services like industrial data transmission, remote equipment monitoring, and stable wireless internet routing, offering a reliable connectivity backbone in diverse environments.

●Hardware Excellence & Connectivity

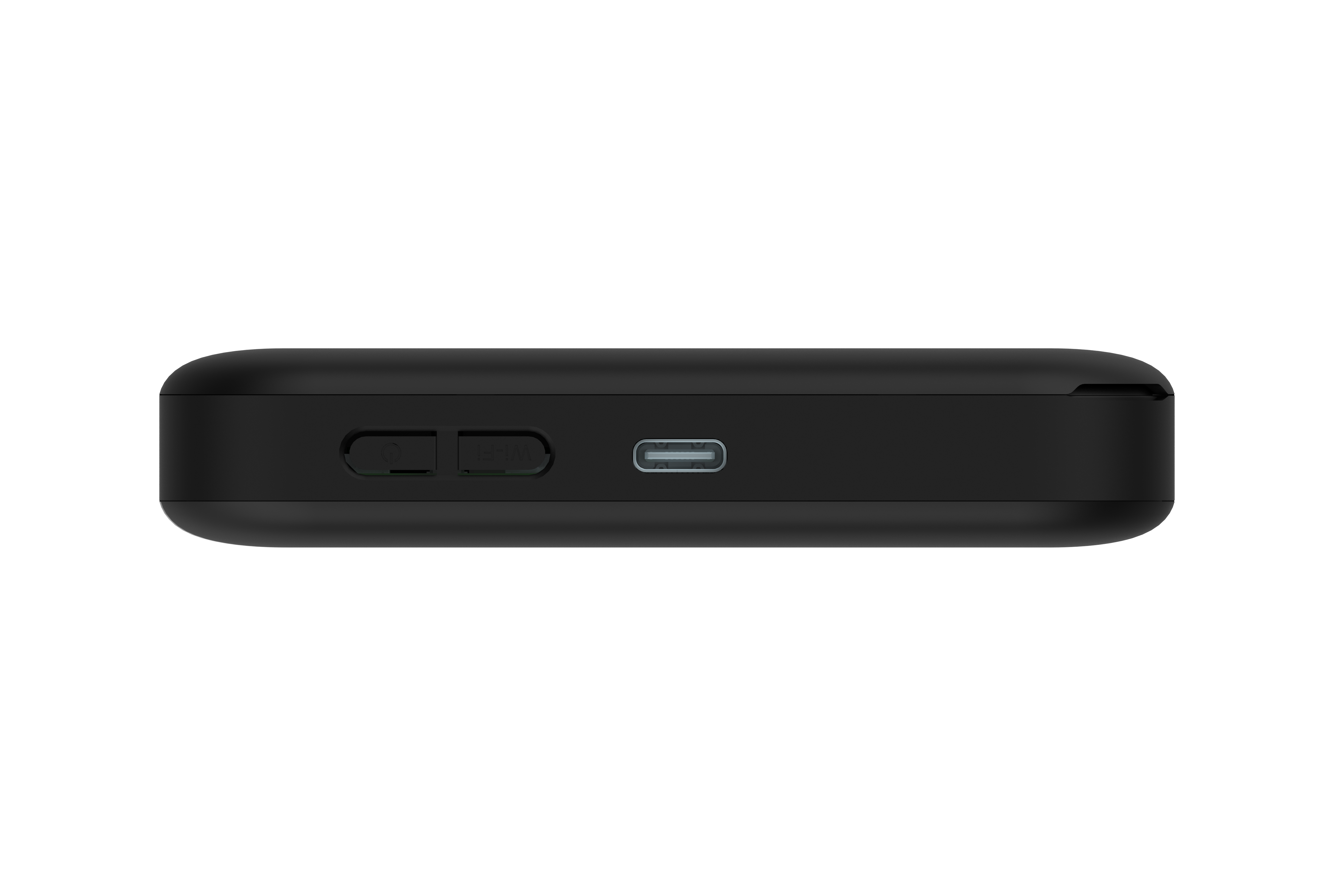

Engineered for efficiency and portability, the ZLT M92 boasts a compact form factor (97x66x16mm) and is powered by a substantial rechargeable battery, delivering up to 8 hours of continuous operation or 72 hours on standby. It features a user-friendly interface with intuitive status indicators and controls. The device is equipped with versatile connectivity options, including a SIM slot (4FF) supporting eSIM (optional) and a Type-C port for power and data.

●Powerful Network Performance
Supporting a wide range of global FDD-LTE, TDD-LTE, and WCDMA bands, the ZLT M92 delivers high-speed mobile data with peak download rates up to 300 Mbps and uploads up to 50 Mbps. It simultaneously provides advanced dual-band Wi-Fi access (2.4GHz & 5GHz), supporting the latest 802.11ax (Wi-Fi 6) standards alongside legacy protocols. With MIMO 2x2 technology, it offers strong concurrent Wi-Fi throughput (up to 573.5 Mbps @2.4GHz and 600 Mbps @5GHz) for up to 16 concurrent users.

●Advanced Management & Security
The ZLT M92 provides comprehensive remote and local management capabilities. Users can easily configure Wi-Fi settings (SSID, channels, security - WPA3/WPA2/WPA), monitor device status (signal strength, network type, SIM status), and manage connections via an intuitive web interface. Advanced networking features include static routing, NAT, firewall (IP/MAC/URL filtering, DMZ), DHCP, and DNS management. Robust remote device management is enabled through TR069 support (HTTP/HTTPS ACS) for configuration, monitoring, and firmware upgrades, alongside detailed system logging.

●Reliable Solution for Critical Applications
Designed for operational stability within a 0°C to 45°C range, the ZLT M92 combines high-speed 4G connectivity, powerful dual-band Wi-Fi, and extensive management tools in a rugged, portable package. It is an ideal solution for M2M, industrial IoT, field deployments, and any scenario requiring dependable wireless data transfer and network access.
