ZLT M200
5G MIFI
Introduction

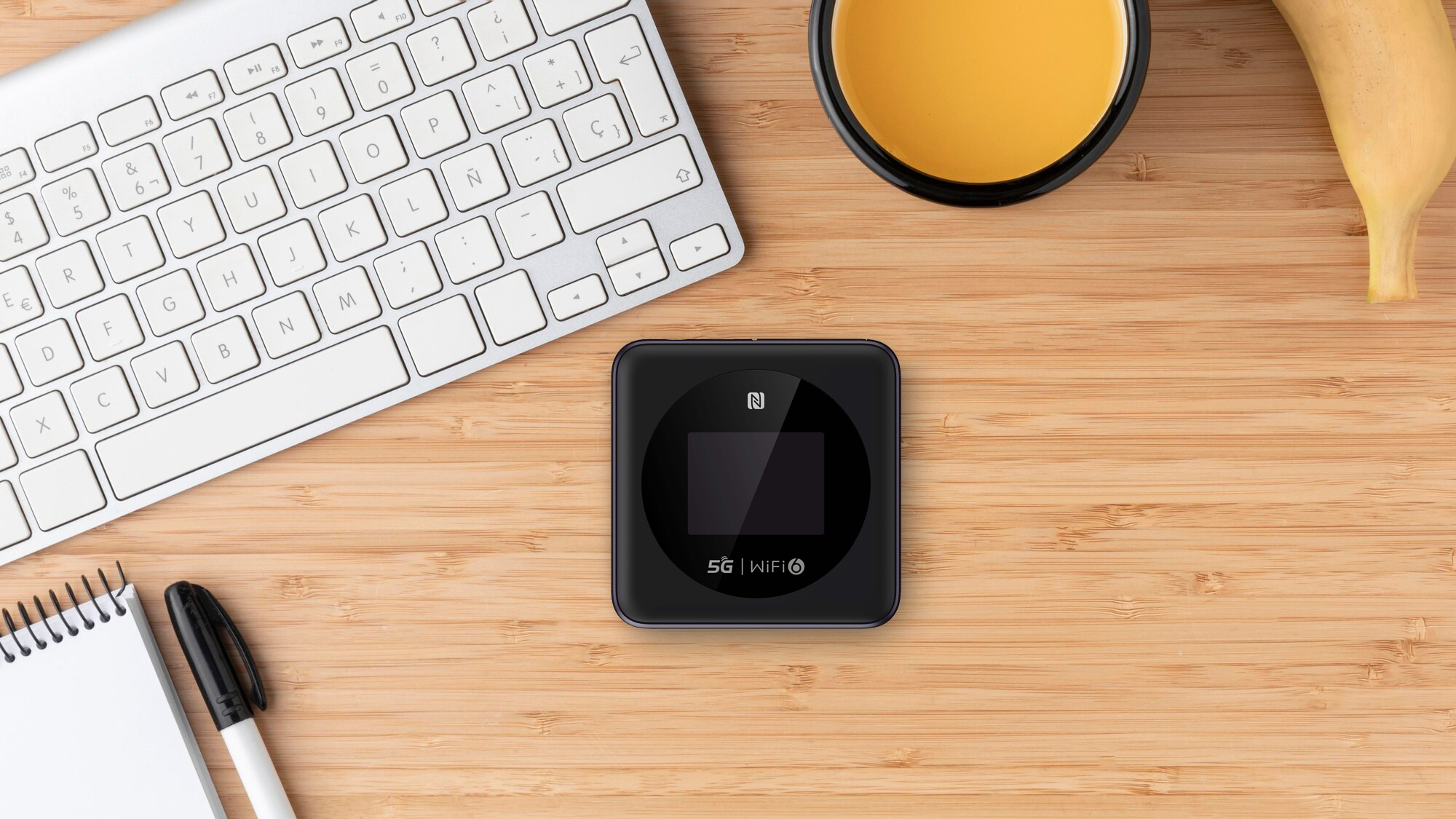

The ZLT M200 is a premium 5G Mobile Hotspot engineered to meet the demanding data and Wi-Fi needs of residential users, businesses, travelers, and outdoor content creators. It provides a reliable, high-speed wireless broadband gateway, seamlessly integrating 5G/4G access, advanced Wi-Fi 6, and wired networking capabilities.
●Powerful Performance & Versatility: Enjoy blazing-fast speeds with dual-band Wi-Fi 6 (2.4GHz & 5GHz, up to 1800Mbps combined) and a versatile 2.5Gbps Ethernet port for wired connections. The M200 supports global 5G and 4G LTE bands, ensuring wide compatibility. Its substantial 8000mAh rechargeable battery delivers over 10 hours of continuous operation and supports 18W fast charging and reverse charging. The intuitive 2.4-inch LCD touchscreen provides real-time network status.
●Advanced Features for Seamless Management: Simplify connections with NFC one-touch Wi-Fi access. Benefit from professional-grade features including comprehensive VPN support (PPTP, L2TP, IPSEC), robust firewall options (DMZ, Port Mapping, MAC/IP Filtering, ACL), IPv6/IPv4 support, and DHCP management. The device offers flexible remote and local management via TR069, Telnet, HTTP/HTTPS, and supports remote firmware updates and configuration backups.
●Designed for Mobility: Encased in a compact (120x120x20mm) design, the ZLT M200 combines extensive functionality with portability. Eight internal antennas ensure strong 5G/4G and Wi-Fi signal reception, making it ideal for reliable high-speed internet access anywhere.
Specifications
Feature | Description |
---|---|
Standard | NR:NSA/SA, Sub-6 GHz LTE: Cat 19(DL) / Cat 18(UL) |
Buttons | 1.Power ON/OFF Button 2.Reset Key |
Interfaces | 1*TYPE-C 1* SIM Slot |
SIM | 1.SIM(4FF) Support 1.8V& 3.0V 2.ESIM(Optional) |
Battery | Rechargeable lithium battery Capacity: 3.7V/8000mAh |
Power Supply | Support PD3.0/BC1.2charger with fast charging protocol |
Dimensions | 120*120*20mm |
5G Support Bands | N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N71/N75/N76/N77/N78 |
MIMO | MIMO 4*4 |
Channel BW | 5M, 10M, 15M, 20M, 25M, 30M, 40M, 50M, 60M, 80M, 90M, 100M |
Peak Throughput | SA: DL 4.67Gbps / UL 1.875Gbps NSA: DL 5.47Gbps/ UL 1.375Gbps |
NR Antenna | 8 Built in 5G<E antennas |
Wi-Fi Frequency | 2.4GHz, 5GHz |
Wi-Fi Mode | 2.4G: 802.11b/g/n/ax; 5G: 802.11a/n/ac/ax |
Wi-Fi Channel Bandwidth | 20MHz, 40MHz, 80MHz |
Wi-Fi MIMO | MIMO 2*2 (2T2R) |
Wi-Fi Concurrent Users | 2.4G: 32 users 5G: 32 users |
