ZLT T300
4G Indoor CPE
Introduction
The ZLT T300 is a powerful indoor CAT6 4G CPE designed to provide instant, high-speed internet access by converting cellular network signals into robust Wi-Fi and wired Ethernet connections. Perfect for scenarios requiring quick network deployment without fixed-line infrastructure, such as temporary offices, retail locations, smart homes, or backup connectivity.
●Robust Connectivity Features: Equipped with versatile network ports, the T300 offers one configurable Gigabit WAN/LAN port and two 100M LAN ports for flexible device connections. It broadcasts a strong, concurrent dual-band Wi-Fi 6 (802.11ax) signal (2.4GHz & 5GHz, AX1500 rated) supporting up to 32 concurrent users. Supporting CAT6 LTE speeds (300Mbps down / 50Mbps up) across major global 4G bands, it ensures reliable performance. Additional features include a telephone (VoLTE/VoIP) port and multiple external LTE antennas for enhanced signal reception.
●Advanced Management & Security: The T300 provides comprehensive software capabilities for easy setup and control. It supports remote device management (TR069), local and remote firmware updates, IPv4/IPv6 dual-stack, firewall protection (IP/MAC/URL filtering, DMZ, Port Mapping), VPN passthrough, QoS, and detailed traffic statistics. User-friendly web management offers configuration of Wi-Fi settings (SSID, encryption like WPA3, channel selection), LAN/DHCP, and SIM card management (PIN lock).
●Designed for Convenience: With its compact, desktop form factor (180x125x60mm), built-in battery option for temporary power backup, and clear status indicators, the T300 is built for straightforward setup and operation within standard indoor environments (0°C to 45°C). Power is supplied via a standard 12V DC adapter.
●Ideal For: Homes needing primary or backup internet, small businesses, pop-up shops, temporary sites, construction offices, and any application demanding rapid, flexible network deployment with carrier-grade cellular connectivity.
Specifications
Feature | Description |
---|---|
Cellular Network Mode | TDD-LTE/FDD-LTE/HSPA+ |

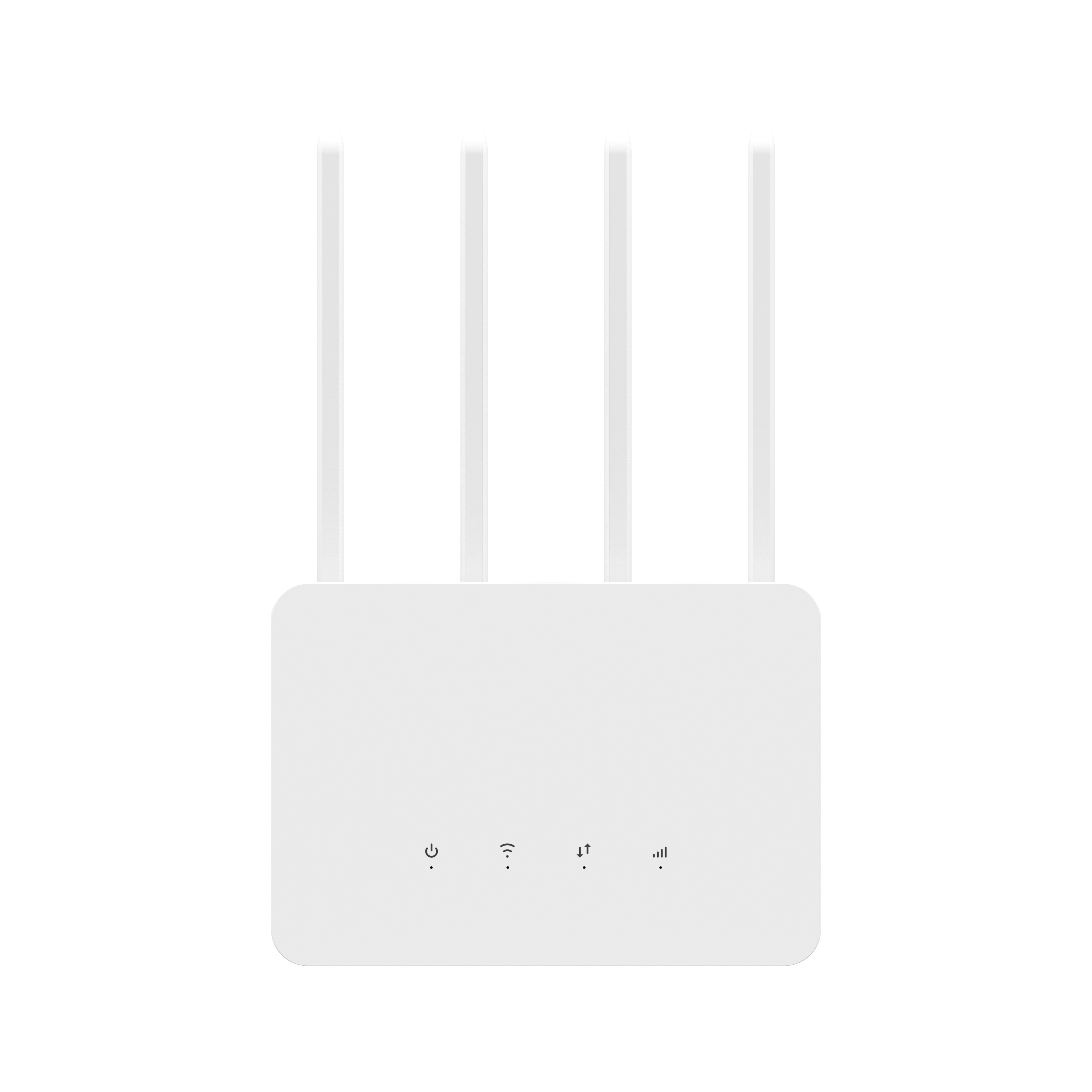

LED | 1. Power 2. Wi-Fi Switch (Used on WPS) 3. 4G/3G Internet 4. Signal Strength (Three-color light indication) Red Flash: NO SIM card Red: Weak Signal Blue: Normal Signal Green: Strong signal |
Button | LINK/Wi-Fi/POWER/Reset Switch |

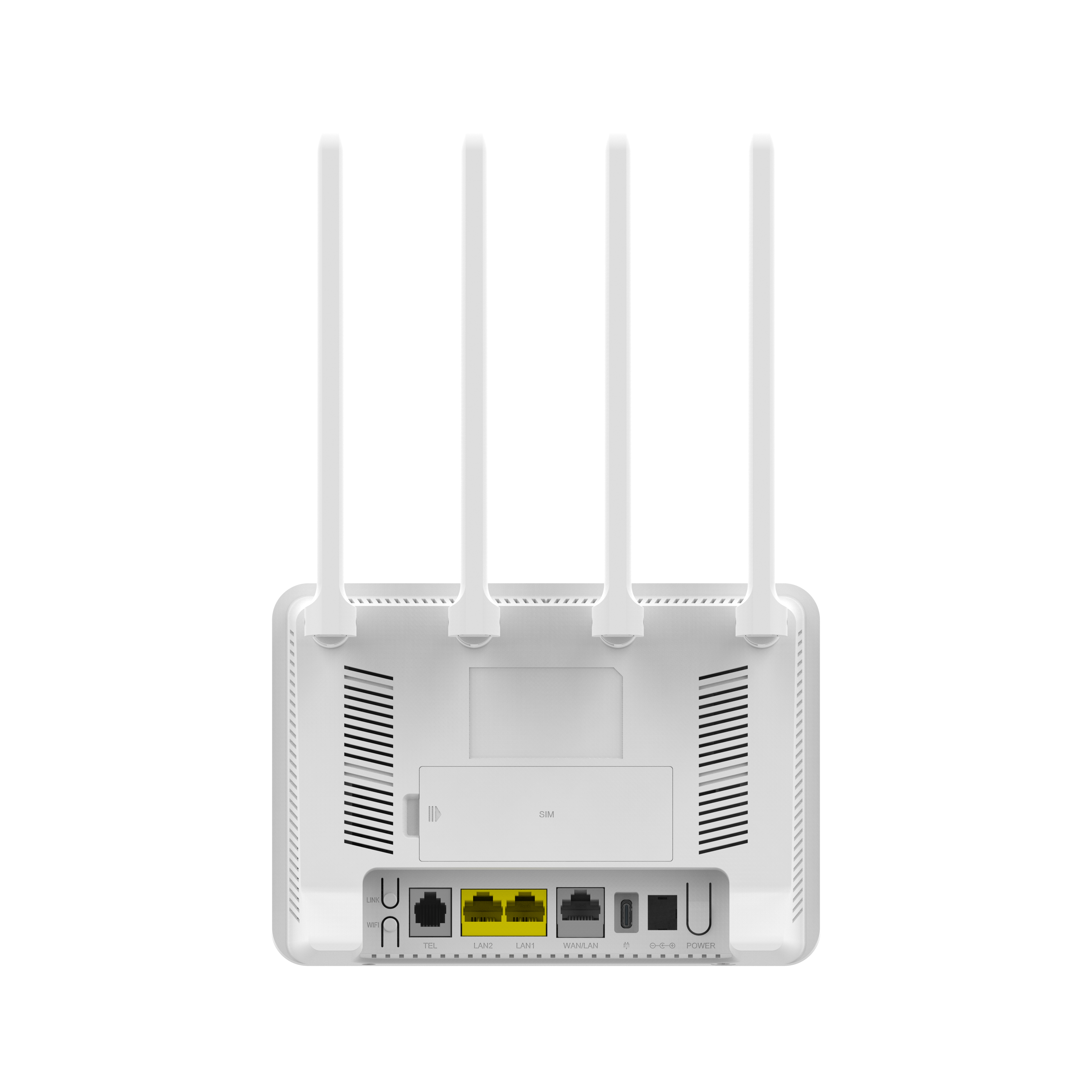

Interface | LAN Port * 3 (1 WAN/LAN Port) SIM Slot * 1 (4FF) DC Socket TYPE_C USB2.0 for Manufacture RJ11 Port * 1 |
Ethernet LAN | 1*100 Mbps |
SIM | 1*SIM (4FF, Nano SIM) Support 1.8V & 3.0V, eSIM circuit is reserved |
Antenna | 2 Built-out Wi-Fi antennas (1 fake antenna), 2 Built-out LTE antennas |
Dimensions | 180 * 251.6 * 56.5 mm |
Power Supply | DC 12V/1A, 3.8V battery |
Battery | 2200mAh/4500mAh large capacity lithium battery |
Support Bands | FDD Band :B1/3/5/7/8/20(28) TDD Band :B38/B40/B41 WCDMA:B1/5/8 GSM: 850/900/1800MHz (optional) |
LTE Category | CAT4 |
LTE MIMO | LTE DL 2 × 2 MIMO:B1/B3/B5/B7/B8/B20/B38/B40/B41 |
TDD/FDD LTE Peak Throughput | DL: 150Mbps UL: 50Mbps |
Wi-Fi Frequency | 2.4 GHz + 5 GHz |
Wi-Fi Mode | 2.4G:802.11b/g/n/ax 5G: 802.11b/g/n/ac/ax |
Wi-Fi MIMO | 2.4G:SISO 1*1 (1T1R) 5G:SISO 1*1 (1T1R) |
Wi-Fi Concurrent Users | 2.4G: 8 5G:8 |
