ZLT T12 PLUS
4G Indoor CPE
Introduction
The ZLT T12 PLUS is a powerful and versatile 4G mobile router designed to transform 2G, 3G, or 4G cellular signals into a high-performance Wi-Fi network. It delivers reliable, high-speed wireless broadband access (up to 150Mbps downlink / 50Mbps uplink) wherever mobile coverage exists, eliminating the need for fixed broadband in many situations.
●Built for Performance and Portability: Enjoy seamless connectivity with dual-band Wi-Fi 6 (2.4GHz and 5GHz), supporting modern devices and offering combined speeds up to 573Mbps. Its integrated large-capacity battery option (2200mAh or 4500mAh) ensures extended operation on the go. Flexible connectivity is provided through a 100Mbps Ethernet port, a versatile Type-C interface (supporting virtual network/RNDIS), and standard DC power input.
●Advanced Features for Secure & Managed Connectivity: Beyond basic routing (NAT, DHCP), the T12 PLUS includes enterprise-grade capabilities like an integrated firewall, VPN support (for secure access), and Multi-APN management. It offers robust network controls including Multi-SSID, MAC/IP/URL filtering, port forwarding, DMZ, and remote management options (including TR069). IPv6 readiness ensures future compatibility.
●Ideal for Diverse Needs: Whether you're at home needing backup internet, running a small shop, traveling, working remotely, or simply require personal mobile broadband, the ZLT T12 PLUS delivers a stable and secure Wi-Fi connection. Its compact design and comprehensive feature set make it the perfect solution for users demanding reliable internet access independent of fixed lines.
Specifications
Feature | Description |
---|---|
Cellular Network Mode | TDD-LTE/FDD-LTE/HSPA+/GSM (optional) |

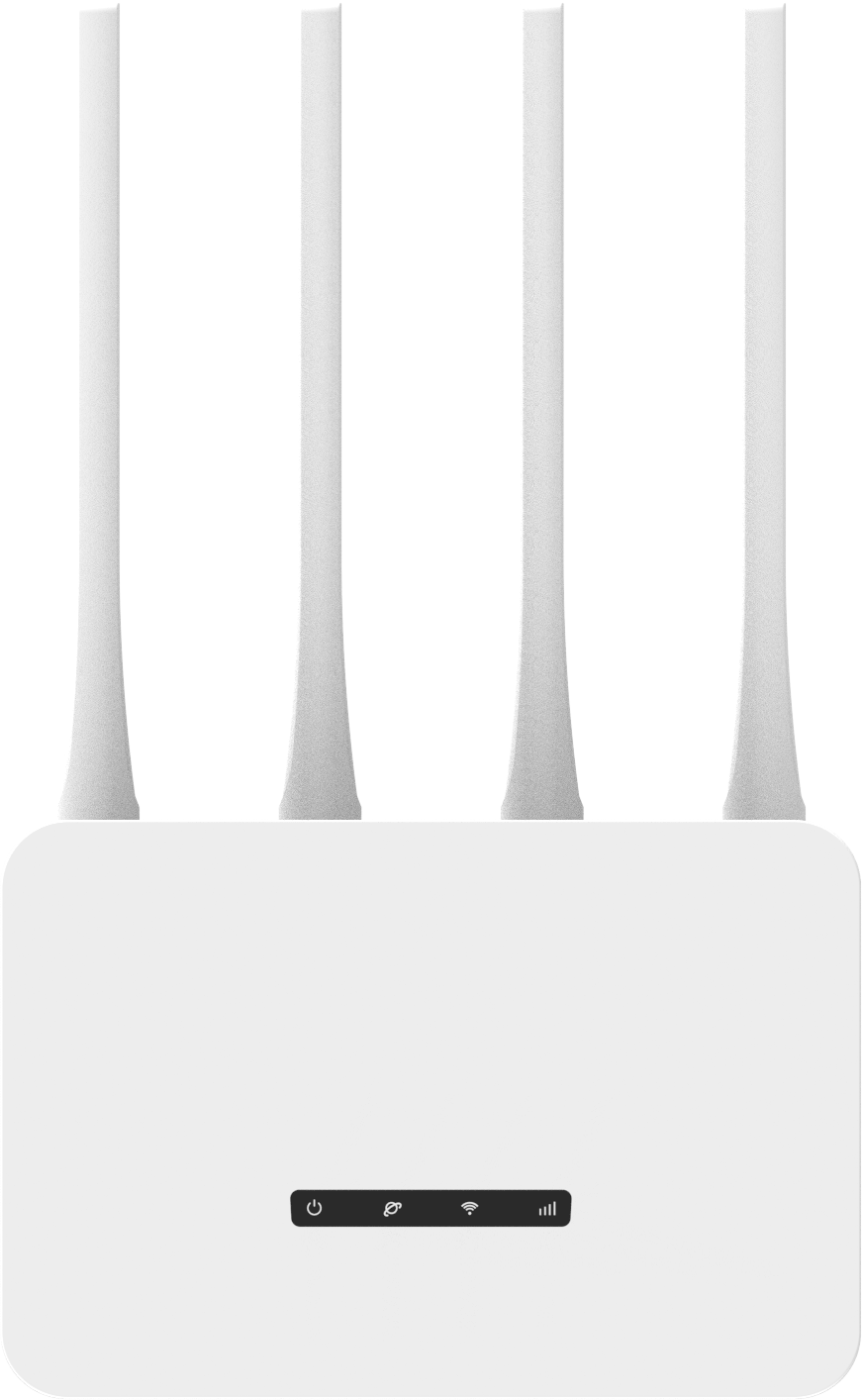

LED | Power light, Data light, Wi-Fi light, Signal light |
Button | RESET Button, Power Switch Button, WPS Button |

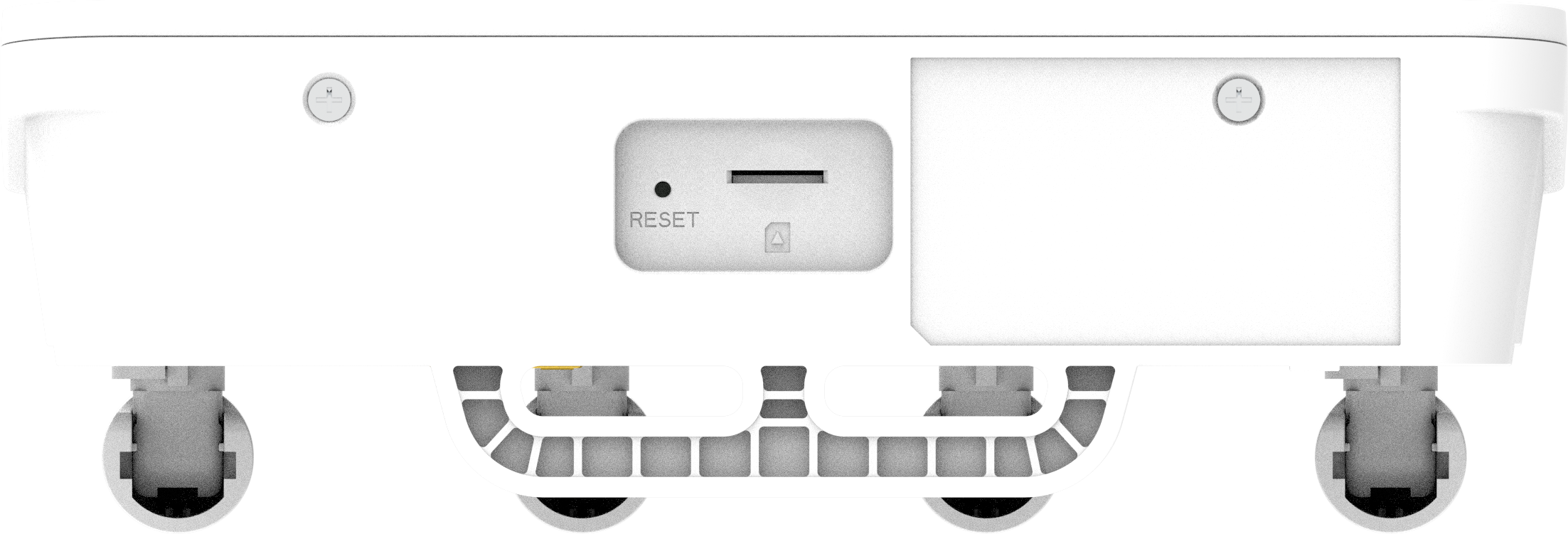

Interface | SIM Slot * 1 (4FF) TYPE_C data interface RJ45 * 1 DC power port |
Ethernet LAN | 1*100 Mbps |
SIM | 1*SIM (4FF, Nano SIM) Support 1.8V & 3.0V, eSIM circuit is reserved |
Antenna | 2 Built-out Wi-Fi antennas (1 fake antenna), 2 Built-out LTE antennas |
Dimensions | 180 * 251.6 * 56.5 mm |
Power Supply | DC 12V/1A, 3.8V battery |
Battery | 2200mAh/4500mAh large capacity lithium battery |
Support Bands | FDD Band :B1/3/5/7/8/20(28) TDD Band :B38/B40/B41 WCDMA:B1/5/8 GSM: 850/900/1800MHz (optional) |
LTE Category | CAT4 |
LTE MIMO | LTE DL 2 × 2 MIMO:B1/B3/B5/B7/B8/B20/B38/B40/B41 |
TDD/FDD LTE Peak Throughput | DL: 150Mbps UL: 50Mbps |
Wi-Fi Frequency | 2.4 GHz + 5 GHz |
Wi-Fi Mode | 2.4G:802.11b/g/n/ax 5G: 802.11b/g/n/ac/ax |
Wi-Fi MIMO | 2.4G:SISO 1*1 (1T1R) 5G:SISO 1*1 (1T1R) |
Wi-Fi Concurrent Users | 2.4G: 8 5G:8 |
