5G Indoor CPE

ZLT Hybrid 100 PRO

5G Indoor CPE

The ZLT Hybrid 100 PRO is a versatile indoor PON + Wi-Fi 6 5G CPE fusion gateway delivering ultra-reliable, high-speed internet by seamlessly combining fiber-optic (PON) and 5G/4G connectivity. Featuring dual-band Wi-Fi 6 (AX3000), four Gigabit Ethernet ports, and enterprise-grade functions like VPN and firewall, it ensures uninterrupted internet for demanding home, business, and industrial applications. Its unique PON+5G failover guarantees you stay always connected.
Watch Video

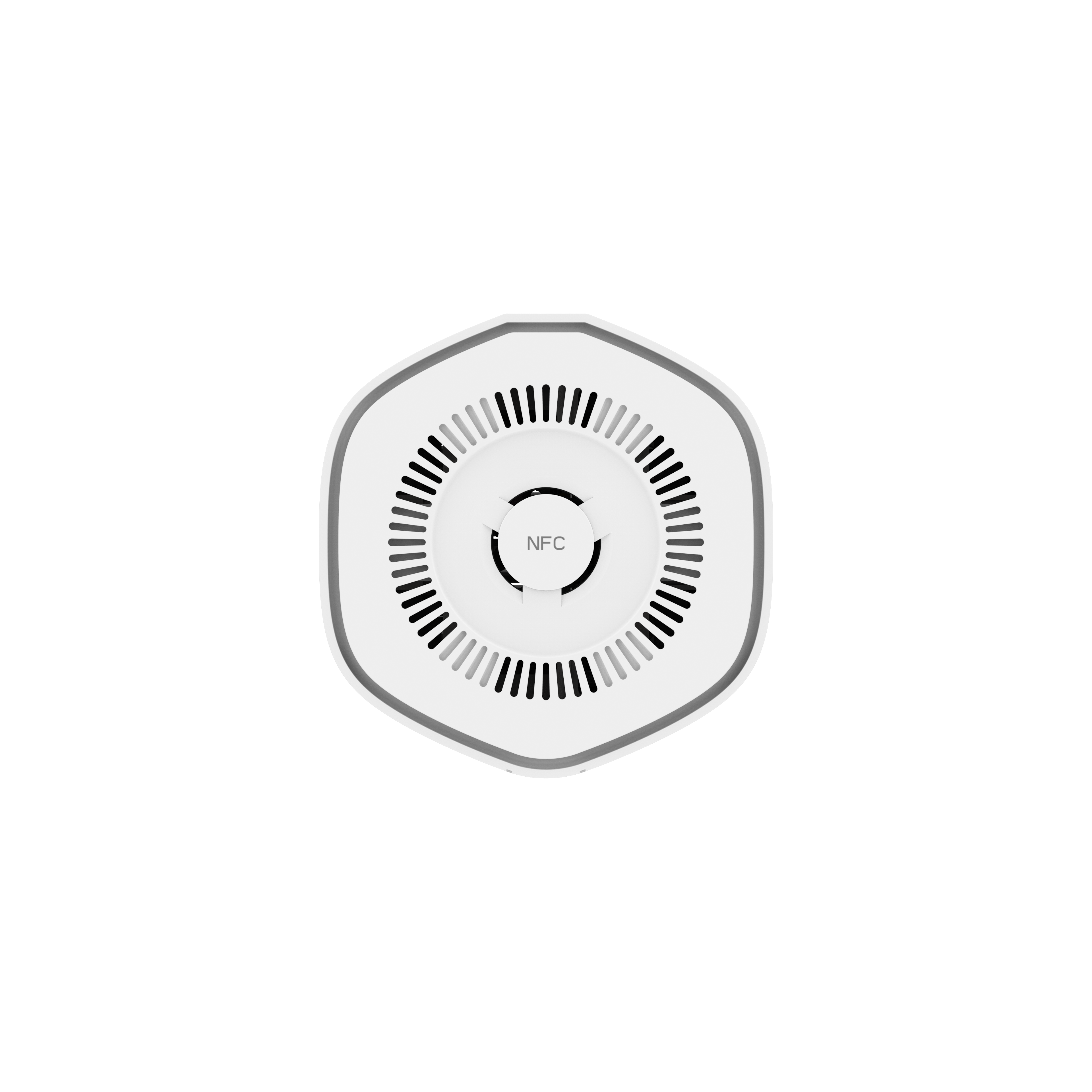

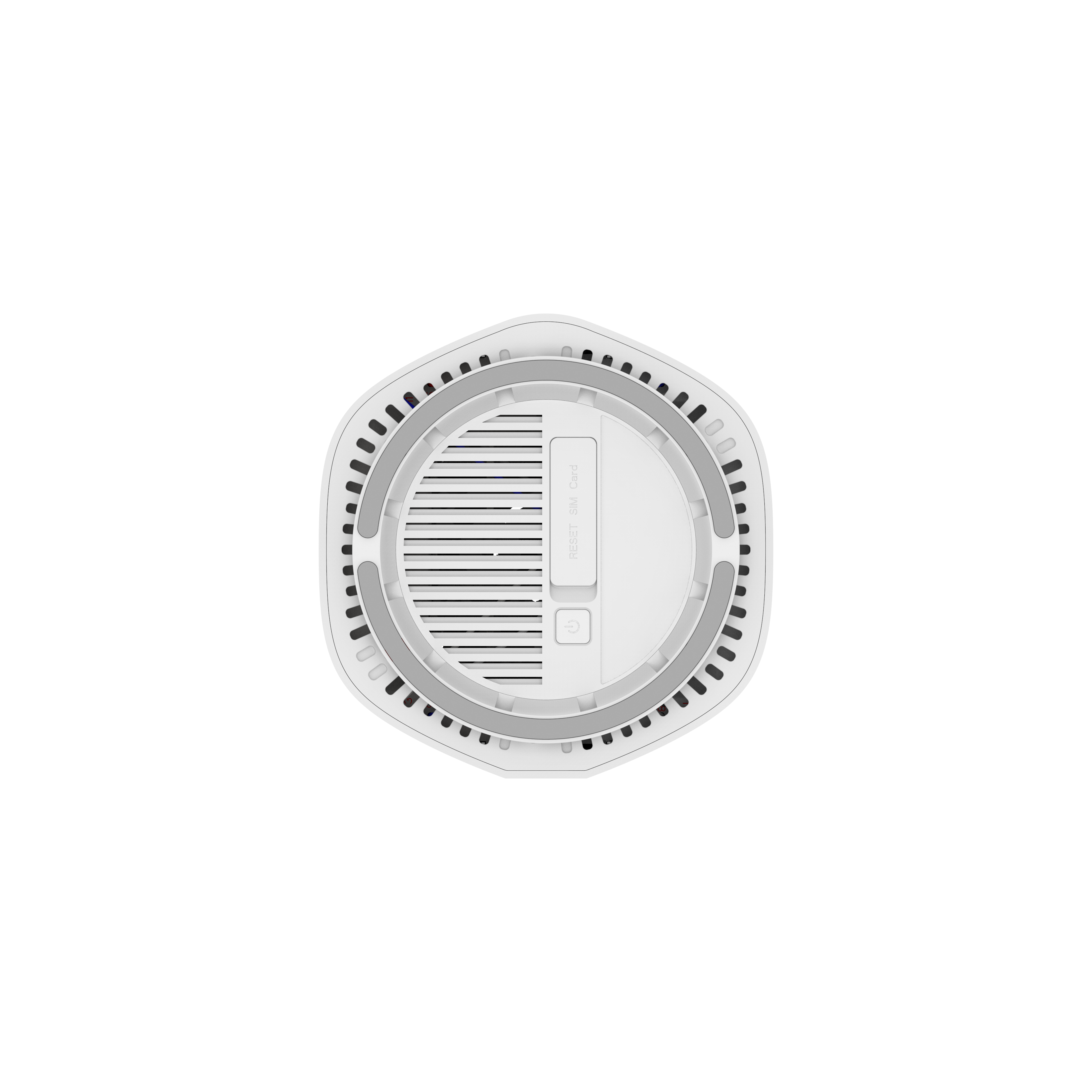

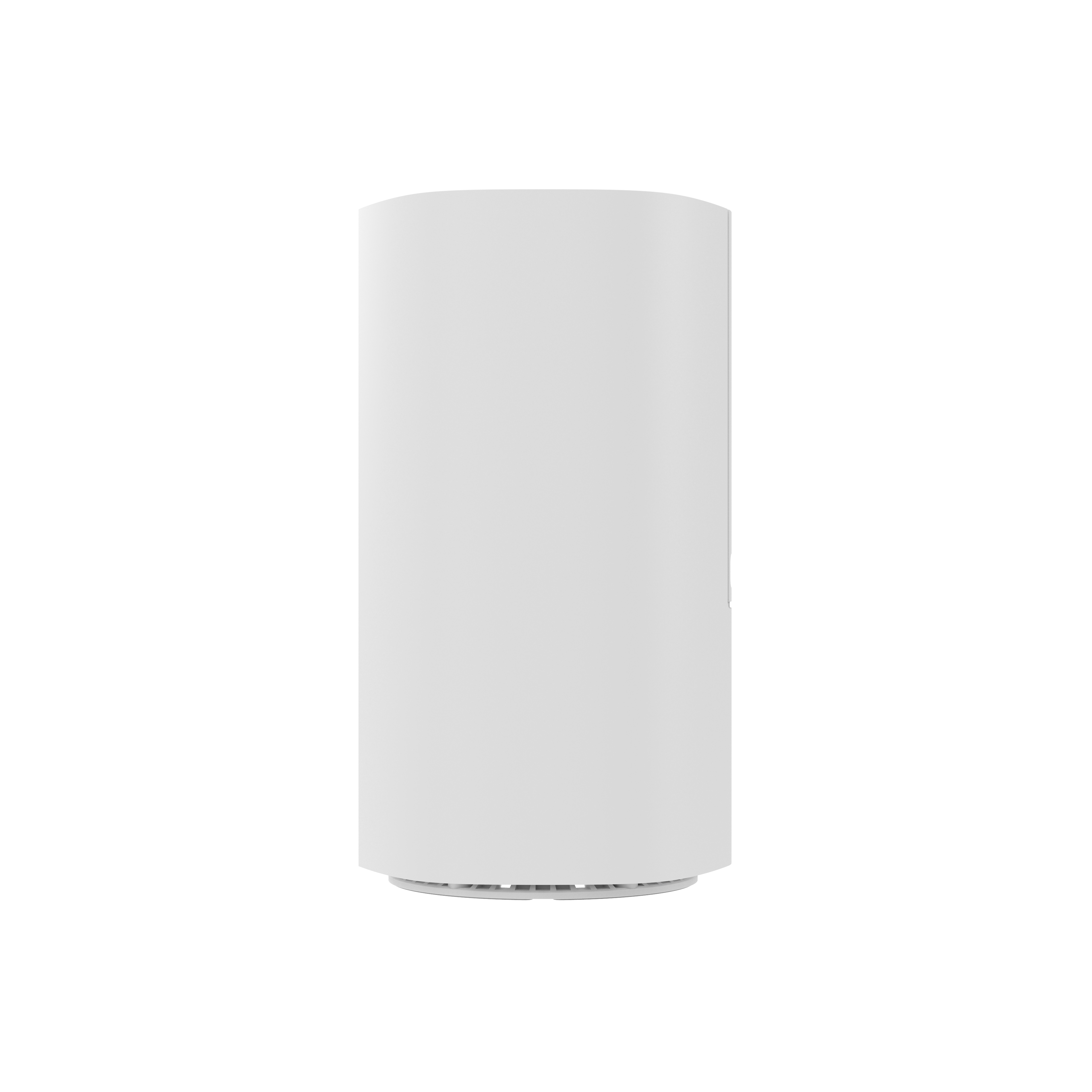

Appearance

Introduction

The ZLT Hybrid 100 PRO is a powerful PON + Wi-Fi 6 5G CPE fusion gateway designed to provide robust, high-performance internet access for environments demanding maximum reliability. It uniquely integrates fiber-optic broadband (GPON/EPON) with advanced 5G/4G cellular connectivity, creating a resilient dual-modem solution. Should one connection fail, its intelligent uninterrupted internet switching (UIS) function automatically fails over to the backup, ensuring critical applications and users remain online without interruption.



Experience superior wireless performance with dual-band Wi-Fi 6 (AX3000), supporting the latest 802.11ax protocol and 160MHz bandwidth for speeds up to 3000Mbps. An intelligent antenna design, combining omnidirectional and high-gain directional elements, provides strong, consistent Wi-Fi coverage throughout your space. For wired devices, four 1Gbps Ethernet ports offer high-speed, stable connections. The gateway also supports EasyMesh for effortless expansion of whole-home Wi-Fi coverage and NFC for simple one-tap Wi-Fi connection setup (Android devices).



Beyond connectivity, the Hybrid 100 PRO boasts robust networking capabilities suitable for both sophisticated home users and small businesses. It includes comprehensive features such as NAT, DHCP server, a powerful firewall with filtering options (IP, MAC, URL, port), VPN client/server support (PPTP, L2TP, IPSec), DMZ, and remote management (TR-069, HTTP/HTTPS, TELNET). IPv6 readiness and Quality of Service (QoS) tools further enhance network management.



Engineered for versatility, the ZLT Hybrid 100 PRO is the ideal solution for homes requiring premium connectivity, small to medium businesses needing dependable uptime, retail shops, and industrial settings where network resilience is paramount. It delivers a future-proofed, all-in-one solution for fast, secure, and always-on internet access.

Specifications

FeatureDescription
PONGPON:DL 2.5Gbps,UL 1Gbps
Cellular Network ModeNSA/SA/TDD-LTE/FDD-LTE/HSPA+
ButtonReset Tact Switch , MESH Button

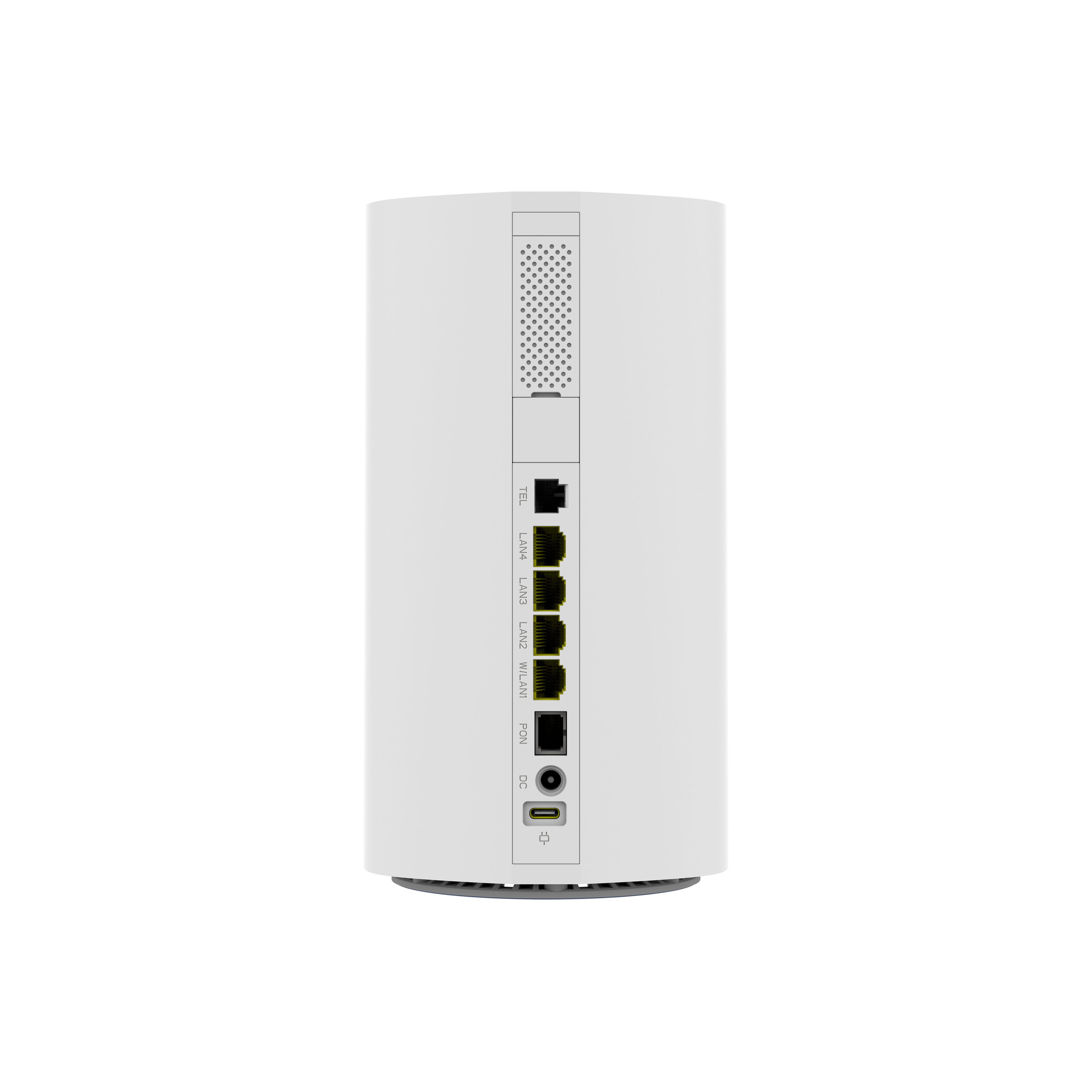

InterfacePON*1(SC/APC)
LAN Port * 4
SIM Slot * 1 (4FF)
DC Socket
One TYPE_C USB3.1 for Manufacture
RJ11 Port * 1 (Optional)
Ethernet LAN4 *10/100/1000Mbps
SIM1*SIM (4FF, Nano SIM)
Support 1.8V & 3.0V ,
eSIM circuit is reserved
NFCSupport one-touch connection to Wi-Fi (Only for Android device with NFC function)
Antenna

13 Built-in (5G<E&Wi-Fi)

2 External antenna(TS-9,Optional)

Dimensions120 * 120 * 220mm
Power Supply1. DC 12V/2A
2. TYPE-C 9-12V
PON InterfaceSupport GPON/EPON
Wavelength:Tx1310nm,Rx 1490nm
SC/APC connector
Receiving saturation:≥-8dBm
Receiving sensitivity: ≤-28dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20KM
Frequency BandN1/3/5/7/8/20/28/38/40/41/71/75/77/78
MIMO1T2R:N5/N8/N20/N28/N71
2T4R:N1/N3/N7/N38/N40/N41/N77/N78
4R:N75
Channel BW5M,10M,15M,20M,25M,30M,40M,50M,60M,80M,90M,100M
5G HPUEN41/N77/N78
Peak ThroughputSA: DL 4.67Gbps / UL 1.875Gbps
NSA: DL 5.47Gbps/ UL 1.375Gbps
(Theoretical value, actual speed is subject to the operator)
5G Wi-Fi Frequency2.4 GHz + 5GHz
Wi-Fi Mode2.4G:802.11b/g/n/ac/ax
5G:802.11a/n/ac/ax
Wi-Fi Channel BW20MHz, 40MHz, 80MHz,160MHz
Wi-Fi MIMOMIMO 2*2 (2T2R)
Wi-Fi Link SpeedAX3000
Wi-Fi Concurrent Users2.4G: 64 users
5G: 64 users

Application

Enterprise Office

Enterprise Office

Audio-Video Entertainment

Audio-Video Entertainment

Online Education

Online Education

Large File Transfer

Large File Transfer

Smart Home

Smart Home

HD Video Conferencing

HD Video Conferencing
