ZLT M93 PLUS
4G MIFI
Introduction
The ZLT M93 PLUS is a powerful 4G wireless communication device engineered to deliver reliable data transmission, seamless equipment monitoring, and advanced Wi-Fi routing capabilities. Built for demanding environments, it leverages 4G LTE networks to provide robust primary or backup connectivity where traditional wired solutions fall short.
●Superior Wireless Performance:
Experience high-speed connectivity with the ZLT M93 PLUS. It supports major global 4G LTE bands for widespread network compatibility and features next-generation dual-band Wi-Fi 6 (802.11ax), operating on both 2.4GHz and 5GHz frequencies simultaneously. This delivers peak throughput up to 600Mbps (AX600), supporting multiple concurrent users with enhanced efficiency and reduced latency, perfect for data-intensive tasks and stable connections.
●Enhanced User Experience & Management:

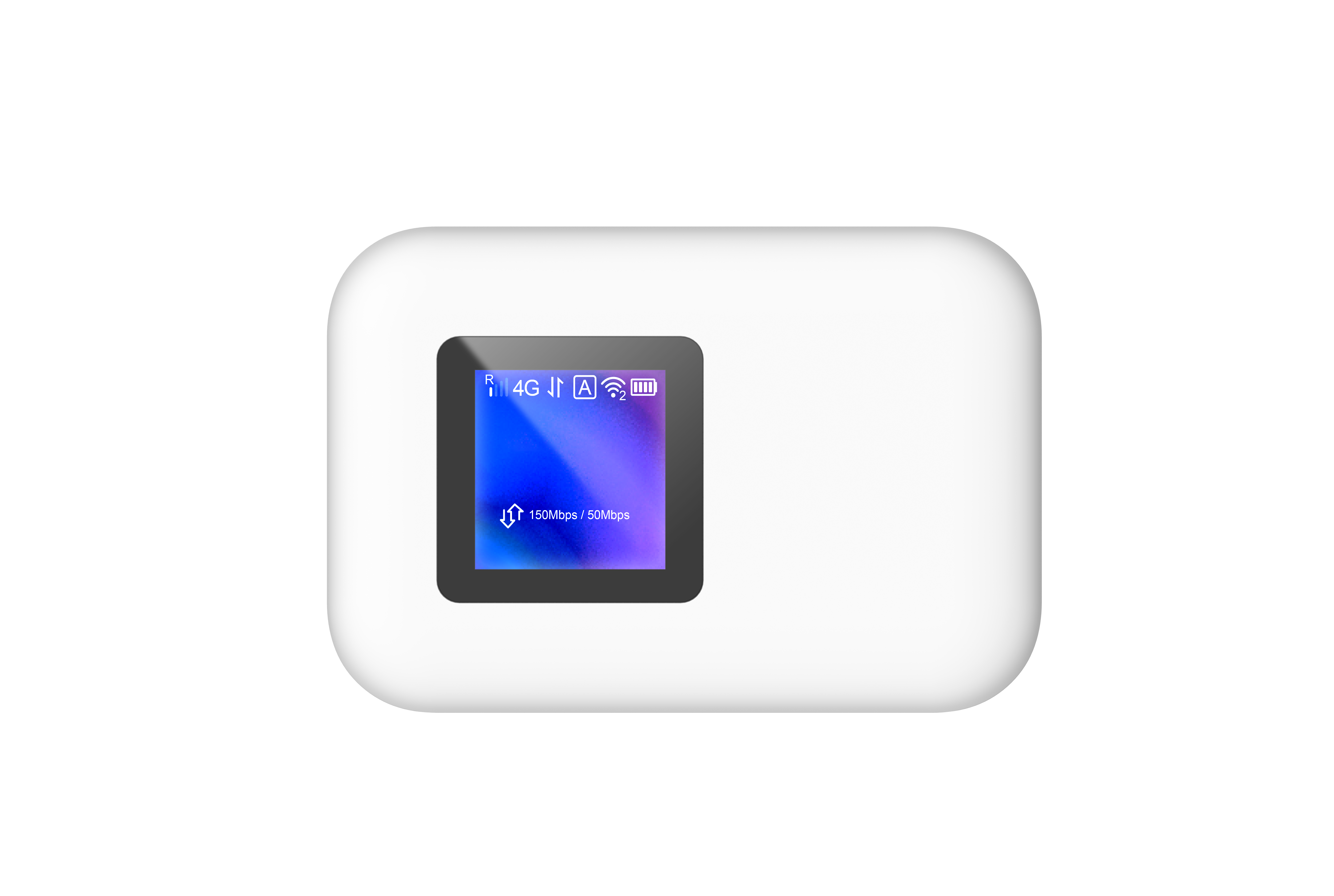

Manage your network with ease using the integrated 1.4-inch color screen, providing clear status information for network connection, signal strength, SIM status, and more. Advanced software features include comprehensive firewall protection (IP/MAC/URL filtering, DMZ), flexible routing protocols, VPN passthrough, TR069 remote management for enterprise-level control, and secure web-based configuration. Dual account management separates administrative and user privileges.
●Designed for Versatility and Reliability:
The compact and rugged device includes a substantial 2000mAh rechargeable battery for extended operation, powered efficiently via a standard USB Type-C port (5V/2A). It offers flexible SIM card management, cell locking, and detailed diagnostics with log export. Ideal for M2M/IoT applications, industrial automation, field operations, temporary sites, and providing managed, secure wireless access anywhere 4G coverage exists.
Specifications
Feature | Description |
---|---|
LCD Indicators | 1.4-inch color screen (non-touch) |

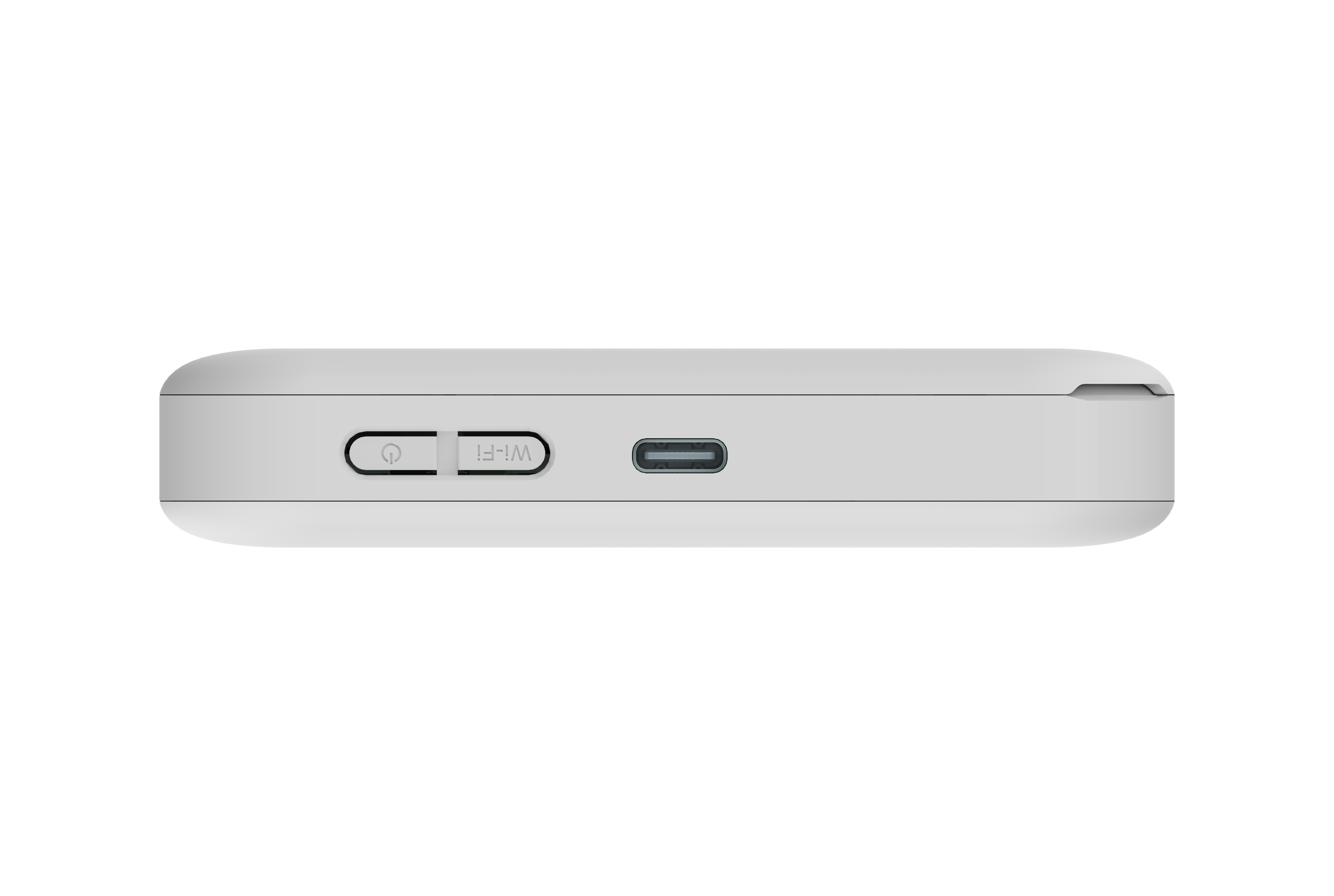

Button | 1.Power Button 2.Wi-Fi Switch Button 3.Reset Key |
Interface | 1*TYPE-C 1* SIM Slot |
SIM | SIM(4FF) Support 1.8V& 3.0V |
Dimensions | 97*66*15.8 mm |
Battery | Support 3000mAh large capacity lithium battery |
Power Supply | Support 5V/2A |
Support Bands | FDD-LTE:B1/B3/B5/B7/B8/B20/B28/B32(RX) TDD-LTE:B38/B40/B41 WCDMA:B1/B5/B8 |
LTE Category | CAT6 |
LTE MIMO | MIMO 2*2 |
LTE Peak Throughput | 300Mbps (DL)/50 Mbps (UL) |
Wi-Fi Frequency | 2.4 GHz or 5GHz(DBSC) |
Wi-Fi Mode | 2.4G:802.11b/g/n/ax 5G:802. 11a/n/ac/ax |
Wi-Fi Channel BW | 20MHz, 40MHz |
Wi-Fi MIMO | MIMO 2*2 (2T2R) |
Wi-Fi Link Speed | AX600 |
Wi-Fi Concurrent Users | 2.4G Wi-Fi: 16 or 5G Wi-Fi: 16 |
