ZLT X17M PRO+ZLT W304VA PRO

5G ODU Set

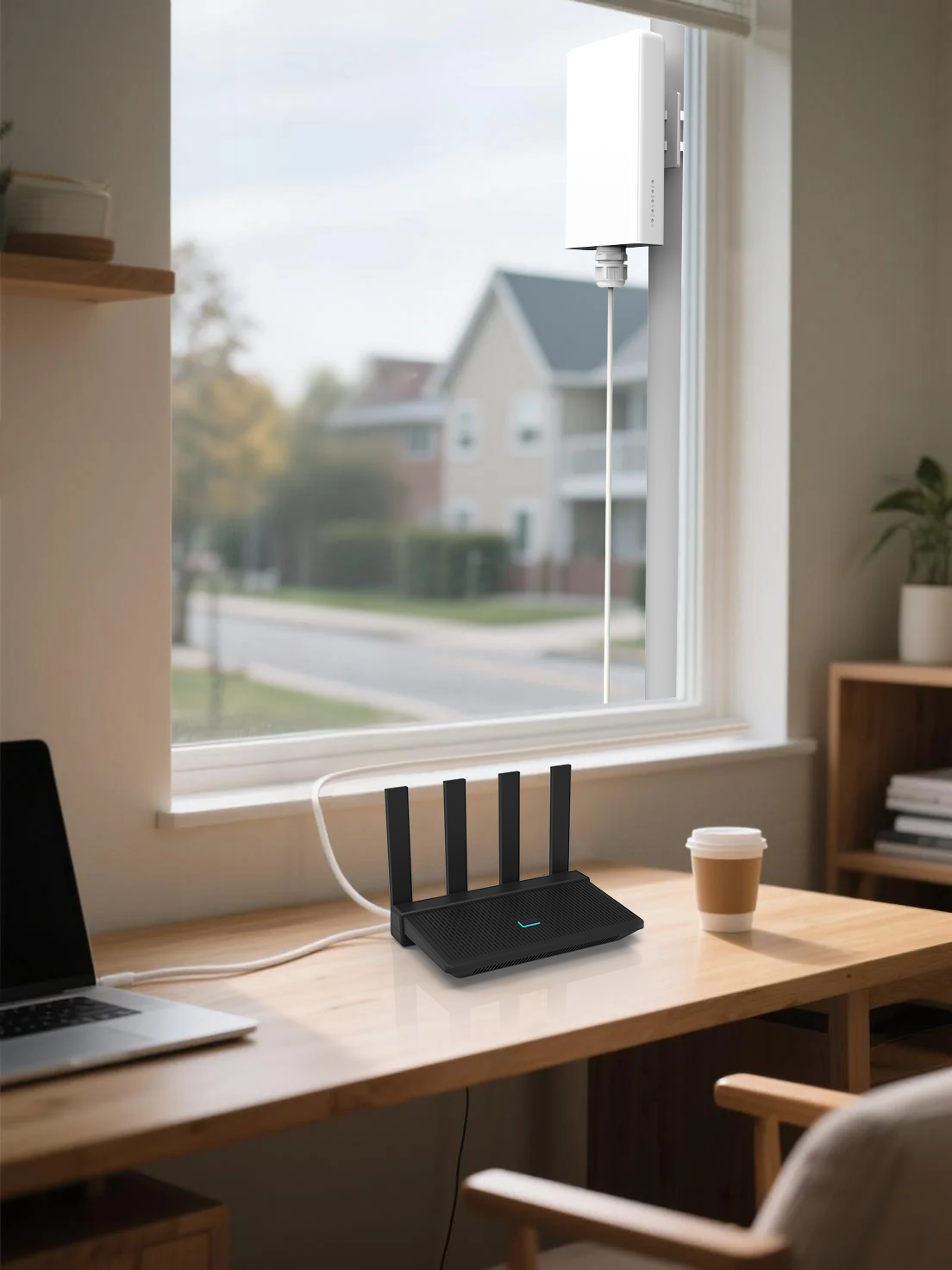

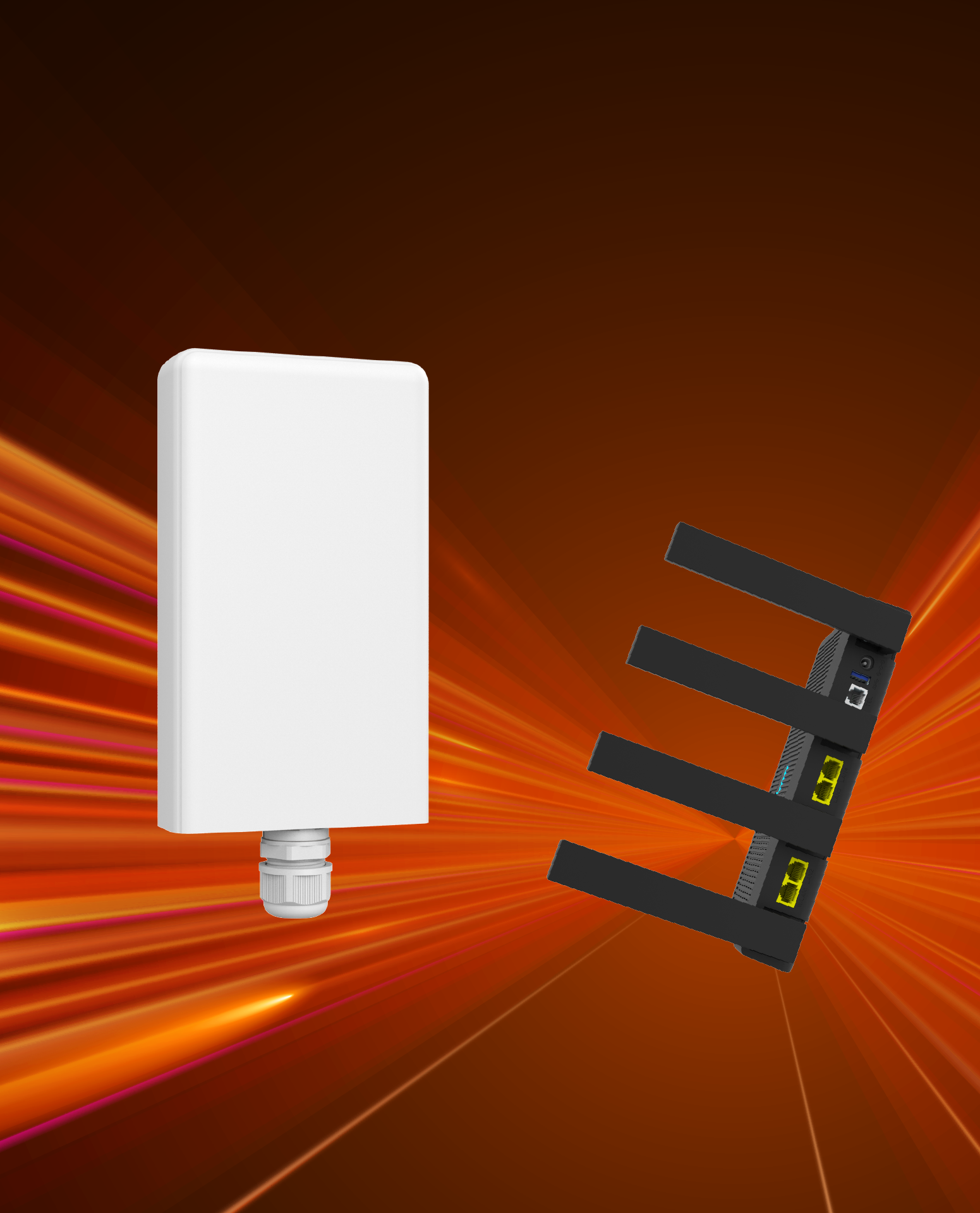

The ZLT X17M PRO-W304VA PRO is an integrated high-performance wireless solution engineered for mission-critical data transmission, equipment monitoring, and enterprise routing. This innovative system pairs a rugged outdoor 5G modem (X17M PRO) with a powerful indoor Wi-Fi 6 router (W304VA PRO), delivering end-to-end connectivity for the most demanding environments.

Introduction

The outdoor X17M PRO unit leverages an MTK T830 chipset supporting both SA/NSA 5G modes, 4-carrier aggregation (4CA), and global 5G/4G bands. Capable of 7.01Gbps downlink speeds and operating in extreme conditions (-30°C to 65°C, IP67 rated), it features dual high-gain antennas (11dBi directional + omnidirectional) and PoE support for simplified outdoor deployment. The indoor W304VA PRO router boasts Wi-Fi 6 (AX3000) with 160MHz bandwidth, NFC pairing, Easy Mesh scalability, and a 2.5Gbps WAN port—ensuring seamless high-density connectivity for up to 64 concurrent users.

Enterprise-Grade Features

●Robust Hardware: 5Gbps Ethernet (X17M PRO), 2.5Gbps WAN (W304VA PRO), eSIM readiness, and optional VoLTE/VoNR support.

●Advanced Software: Dual-stack IPv4/IPv6, multi-APN, VPN client/server (IPSec/L2TP/PPTP), TR069 remote management, and industrial security protocols.

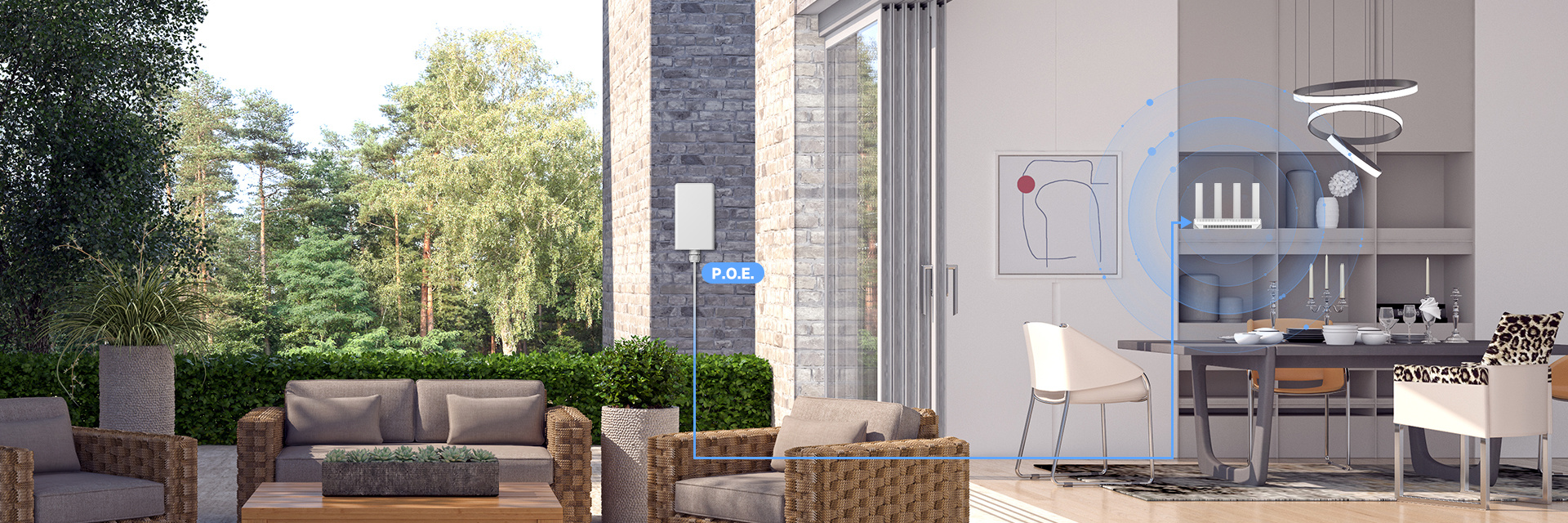

●Flexible Deployment: PoE powering, band/cell locking, thermal resilience, and configurable Bluetooth/eSIM authorization.

Ideal For: Smart city infrastructure, remote industrial monitoring, mobile backhaul, and high-availability enterprise networks requiring carrier-grade 5G performance and Wi-Fi 6 coverage. The ZLT X17M PRO-W304VA PRO sets a new standard for scalable, future-proof wireless connectivity.

Specifications

●X17M PRO Basic Specifications

Feature	Description
Cellular Network Mode	NSA/SA/TDD-LTE/FDD-LTE/HSPA+
Button	Reset Button
Interfaces	1 * Ethernet RJ45 interface 1 * SIM Card Interface (4FF) 1 * TYPE_C USB3.1 debugging interface
Ethernet	1 * 5Gbps
SIM	1 * SIM (4FF, Nano SIM) 1.8V & 3.3V adaptive eSIM circuit reserved
Antenna	4 * built-in omnidirectional antenna 4 * directional antenna
Dimensions	19511042mm
Power Supply	POE 36-57V/DC 48V, 0.5A
Protection Level	IP67
Operating Temperature	-30°C~65°C
Storage Temperature	-40°C~65°C

●W304VA PRO Basic Specifications

Feature	Description
Button	2 Key: RST key + (WPS/MESH combination key)
Antenna	4 external antenna
Relay	Support MESH function
Ethernet Port	LAN* 3(10/100/1000 Mbps) + WAN* 1(100/1000/2500 Mbps , 2.5GE default configuration, 1GE optional)
PSE Power Supply	WAN port is used as PSE power supply and supports protocol power supply (Supported by default, Optional )
Voice Port	1*telephone port (Supported by default, Optional )
USB	USB 3.0 TYPE-A
Wi-Fi	2.4G & 5.8G dual frequency; 802. 11a/b/g/n/ac/ax; 2x2 MIMO ;AX3000
NFC	Support one-touch connection to Wi-Fi (Only for Android device with NFC function)(Supported by default, Optional )
Dimensions	237* 154*47mm

●5G/NR Specifications

Feature	Description
Frequency Bands	N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78/ N71(optional)
NR CA	4 NRCA
NR SCS	30kHz, 15kHz
MIMO	DL MIMO 44; UL MIMO 22
Supported Bandwidth	5M, 10M, 15M, 20M, 25M, 30M, 40M, 50M, 60M, 80M, 90M, 100M
5G HPUE	Supported
Peak Throughput	5G NR DL 7.01Gbps UL 2.5Gbps

●IDU Wi-Fi Specifications

Feature	Description
Wi-Fi Frequency	2.4GHz +5GHz
Wi-Fi Mode	802. 11a/b/g/n/ac/ax
Wi-Fi Channel BW	20MHz, 40MHz, 80MHz, 160MHz
Wi-Fi MIMO	2.4G supports 2X2 MIMO with 40MHz bandwidth; 5G supports 3X3 MIMO with 160MHz bandwidth.
Wi-Fi Concurrent Users	2.4G 32+ 5.8G 32
NFC	Support one-touch connection to Wi-Fi
