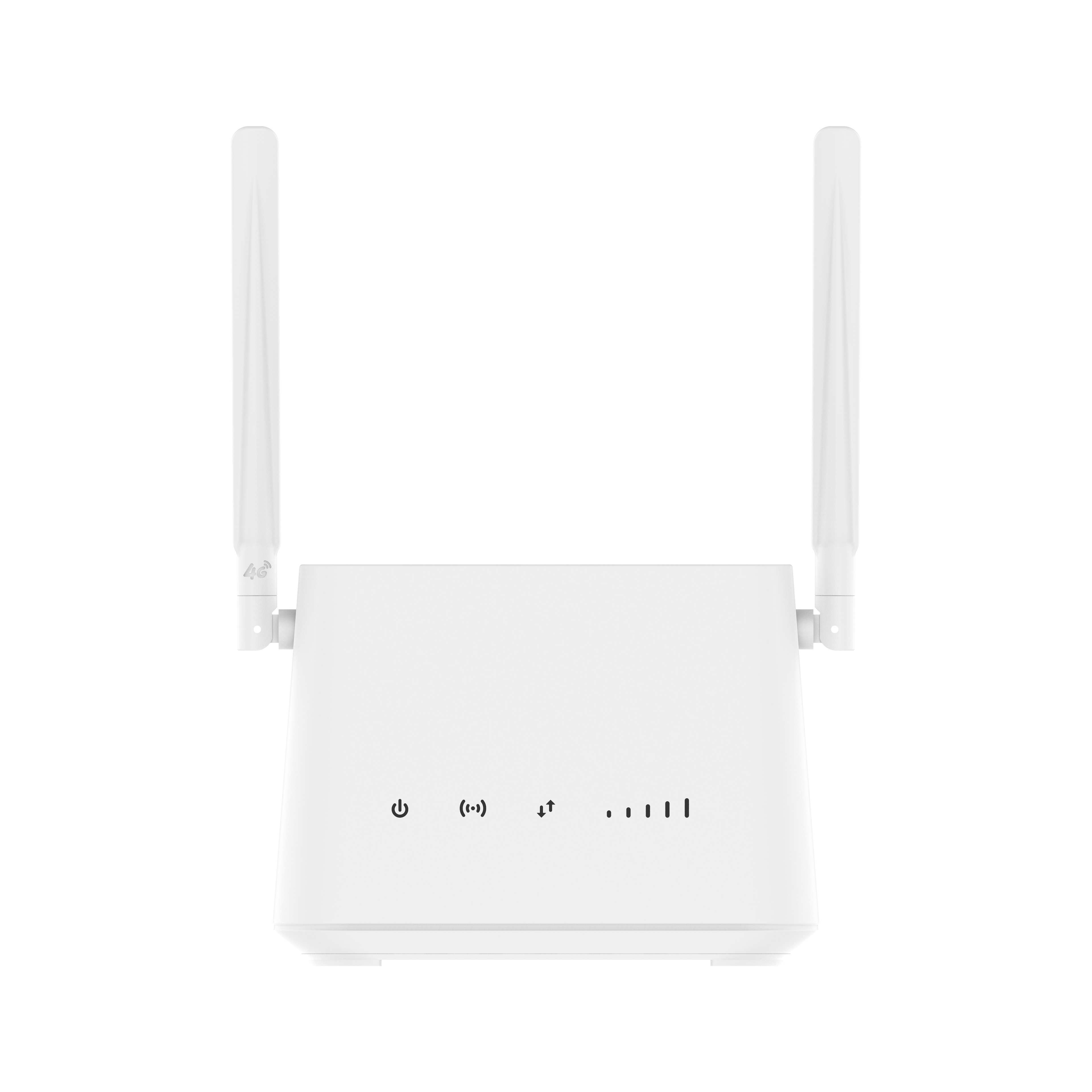

ZLT S12M

4G INDUSTRIAL ROUTER

Advanced CAT4 CPE delivering 150Mbps DL/50Mbps UL speeds across LTE bands B3/B7/B20/B31/B72(Optional). Features 4x LAN ports (LAN4 configurable as WAN), dual-external 5dBi antennas, 2.4GHz 2T2R Wi-Fi, and optional 2000mAh battery for 2-hour mobility. Supports IPv4/IPv6 dual-stack, multi-VPN, TR069, and RJ11 voice functionality.

Introduction

This enhanced CAT4 CPE delivers high-speed wireless connectivity (150Mbps downlink/50Mbps uplink) across LTE bands B3/B7/B20/B31/B72 (optional) with dual external 5dBi antennas. Equipped with a high-performance processor, it enables robust data transmission, industrial monitoring, and failover connectivity for critical applications.

Expanded Connectivity & Mobility

●Wired Ports: 4x FE LAN ports (LAN4 convertible to WAN) + optional RJ11 for voice

●Power: Standard DC input + Socket for 2000mAh backup battery (optional)

●Wireless: 2.4GHz Wi-Fi 2T2R (802.11b/g/n) with external antennas

●Critical Interfaces: SIM slot, dedicated reset/Wi-Fi buttons

Advanced Network Features

Dual-stack IPv4/IPv6 routing with NAT

Multi-VPN support (L2TP/PPTP/GRE) + TR069 remote management

Port forwarding/DMZ/industrial temperature tolerance (0°C-40°C)

Carrier SIM lock and cell locking capabilities

Designed for demanding deployments, the S12M Pro combines carrier-grade 4G performance with enterprise routing flexibility in a compact desktop form factor.

Specifications

Feature	Description
LTE Standard	LTE CAT4
Supported Bands (Band will be customized as per requirement)	LTE FDD: B3/7/20/31 HSPA+/HSPA/UMTS
LTE Antenna	2 Built-in 2 External via SMA interface
LTE MIMO	MIMO 2*2(1TX 2RX)
LTE Peak Throughput	150 Mbps(DL)/50 Mbps(UL)
Wi-Fi Frequency	2.4 GHz
Wi-Fi Channel BW	20MHz, 40MHz
Wi-Fi MIMO	MIMO 2*2 (2T2R)
Wi-Fi Protocol	802.11 b/g/n
Wi-Fi Concurrent Users	32

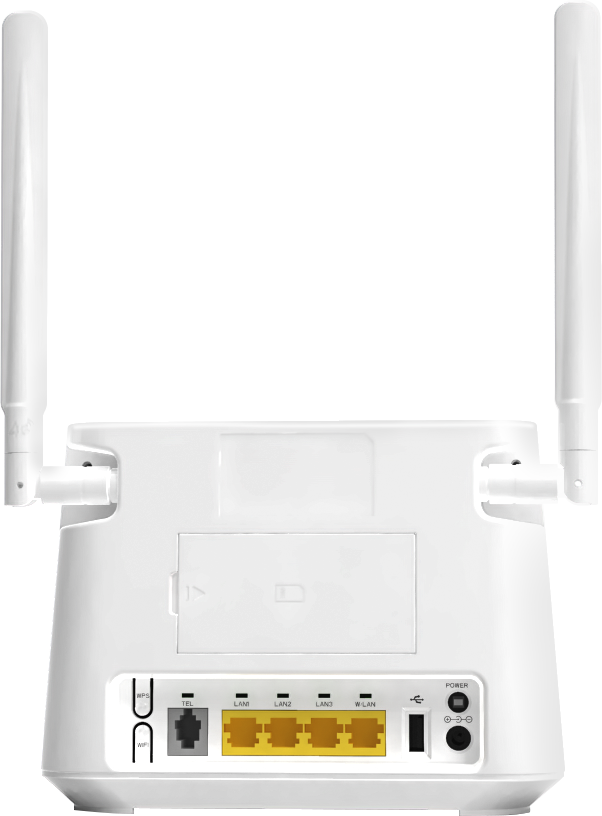

Interfaces	LAN RJ45 Port (FE) * 4(LAN4 can be used as WAN mode); RJ11 Port * 1 (Optional); Battery Socket, DC Socket, SIM Slot
Battery	2000mAh Battery (optional)
Buttons	POWER On/Off Button WPS Button Wi-Fi Button RESET Button
SIM	Mini SIM(2FF) Support 1.8V & 3.3V
Power Adaptor	AC100V~240V,50Hz~60Hz DC 12V 2A
Dimensions	18013248mm
Operating Temperature	0°C~40°C
Storage Temperature	-20°C~65°C
