ZLT G304VA SE

The ZLT G304VA SE is a carrier-grade GPON Optical Network Terminal (ONT) designed specifically to meet the growing Fiber-to-the-Home (FTTH) and triple-play (data, voice, video) service demands of fixed network operators. Built on the mature and highly cost-effective Airoha chipset platform, it delivers robust performance, operational simplicity, and guaranteed Quality of Service (QoS) for diverse applications.

Powerful Connectivity & Performance

●GPON Uplink: Compliant with ITU-T G.9807.x standards, supporting 2.5Gbps downstream and 1.25Gbps upstream speeds for high-bandwidth delivery.

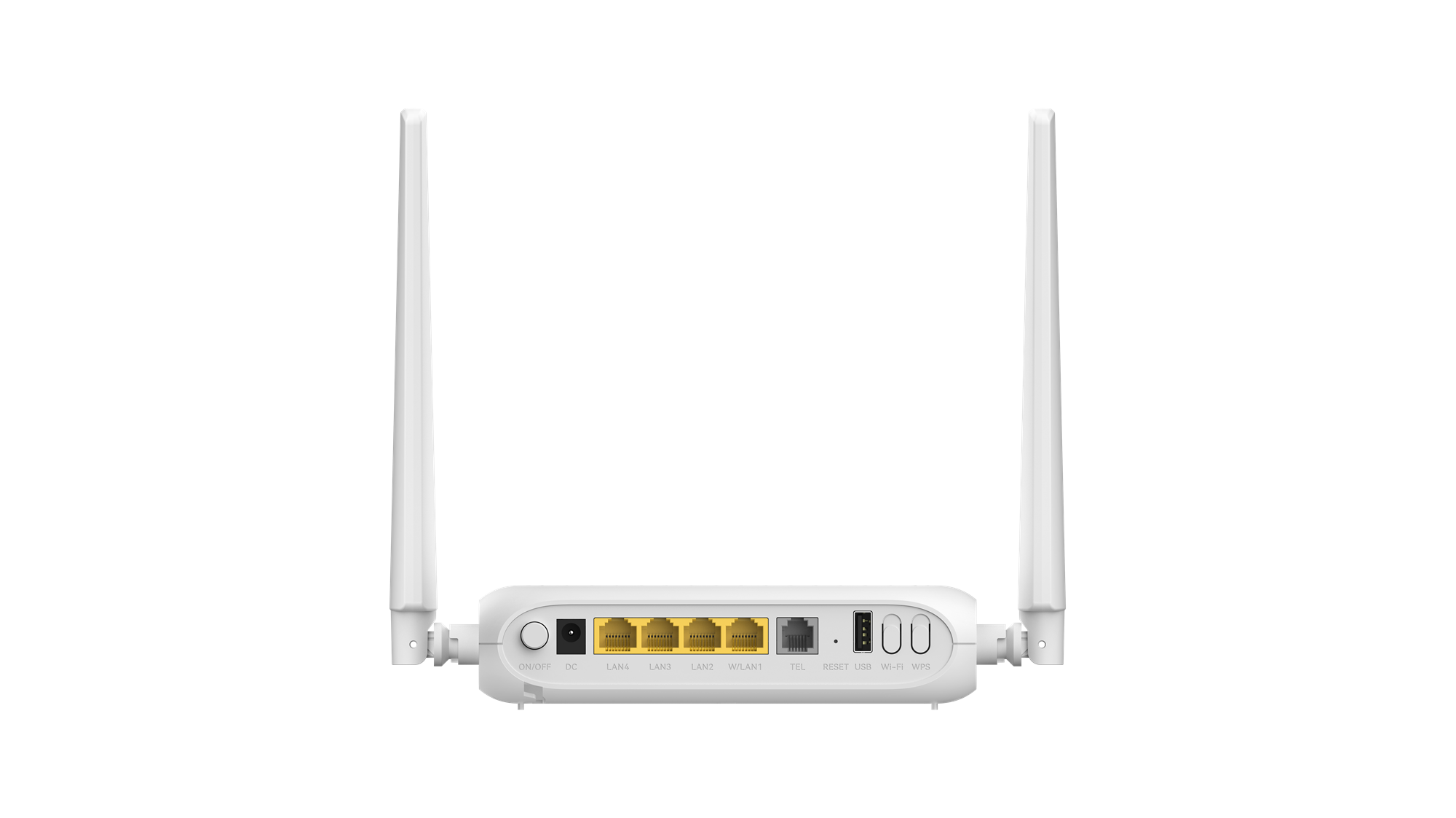

●Wired Networking: Equipped with four Gigabit Ethernet (GE) ports for connecting PCs, IPTV set-top boxes, and other wired devices.

●Advanced Wi-Fi 6: Features dual-band Wi-Fi 6 (802.11ax) with 2x2 MU-MIMO, offering combined speeds up to 3000 Mbps (574 Mbps @2.4GHz + 2402 Mbps @5GHz) and supporting multiple SSIDs for enhanced home network performance and capacity.

●Voice Ready: Includes one RJ11 port for traditional telephone service (POTS) over fiber.

Reliable & Manageable Operation
Engineered for high reliability and ease of maintenance, the G304VA SE supports Layer 2 features and comprehensive remote management via the OLT using the OMCI protocol suite. This ensures efficient provisioning, monitoring, and troubleshooting for operators. Its compact design (160mm×112mm×40mm) offers flexible placement options.

Key Hardware Specifications

●Chipset: Airoha AN7552CT + EN7571 + MT7916AN + MT7976DN

●Memory: 512MB Flash, 4GB RAM

●Power: 12V/1.5A DC (<18W consumption)

●Optical Interface: SC/APC connector, TX: 1310nm, RX: 1490nm (Sensitivity: ≤ -28 dBm, Power: 0 ~ +4 dBm)

●Indicators: 11 LEDs for clear status monitoring (POWER, PON, LOS, WAN, LAN1-4, Wi-Fi, POTS, USB)

●Environment: Operating: 0°C to +45°C, 5%~90% RH (non-condensing); Storage: -30°C to +75°C, 5%~90% RH.

●Certifications: CE (on demand basis), Network Access Certification, Model Approval.

The ZLT G304VA SE provides operators with a future-proof, feature-rich, and economical terminal solution to deliver high-quality broadband, voice, and video services over their GPON FTTH networks, backed by strong management capabilities and Wi-Fi 6 performance.
