ZLT G124VZ PRO

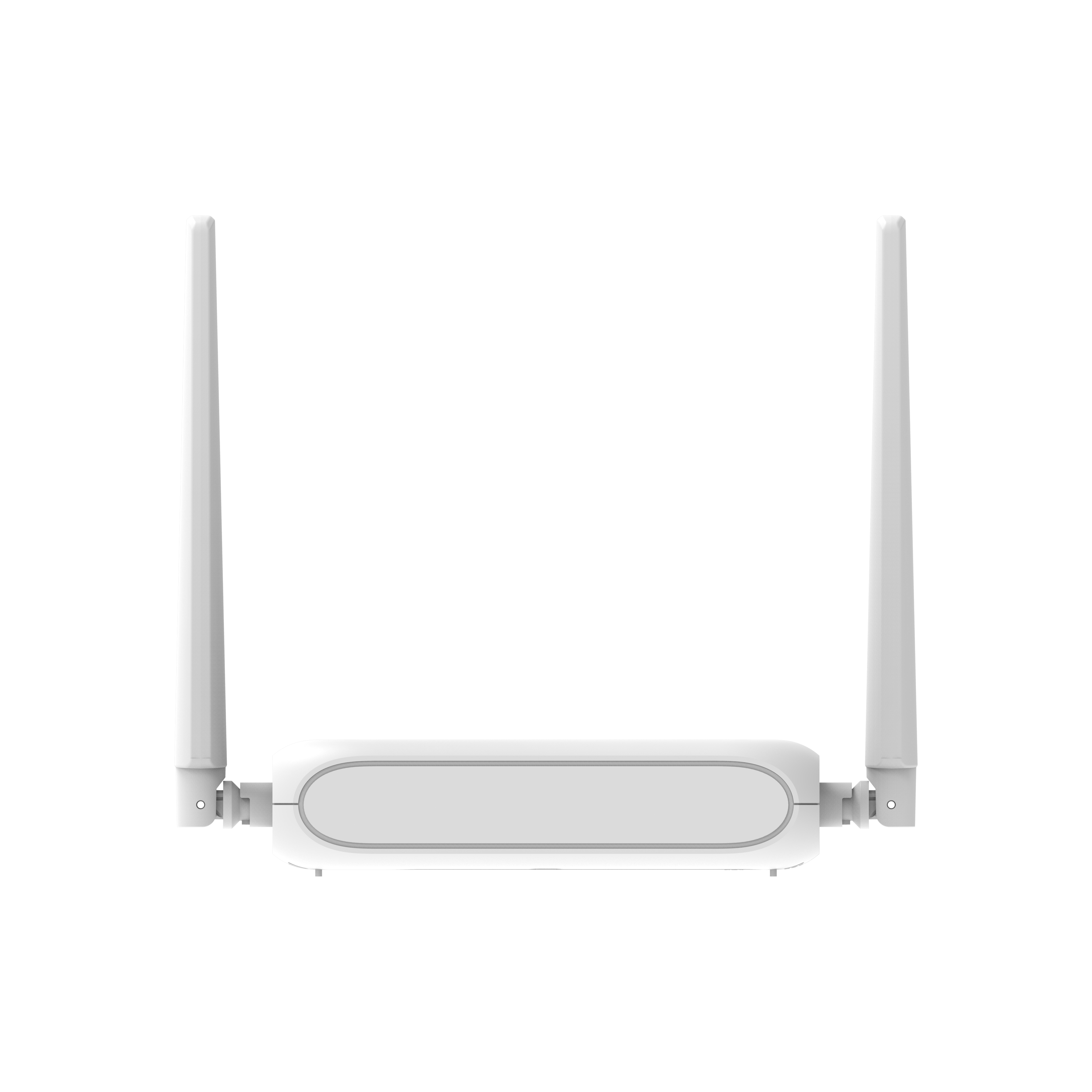

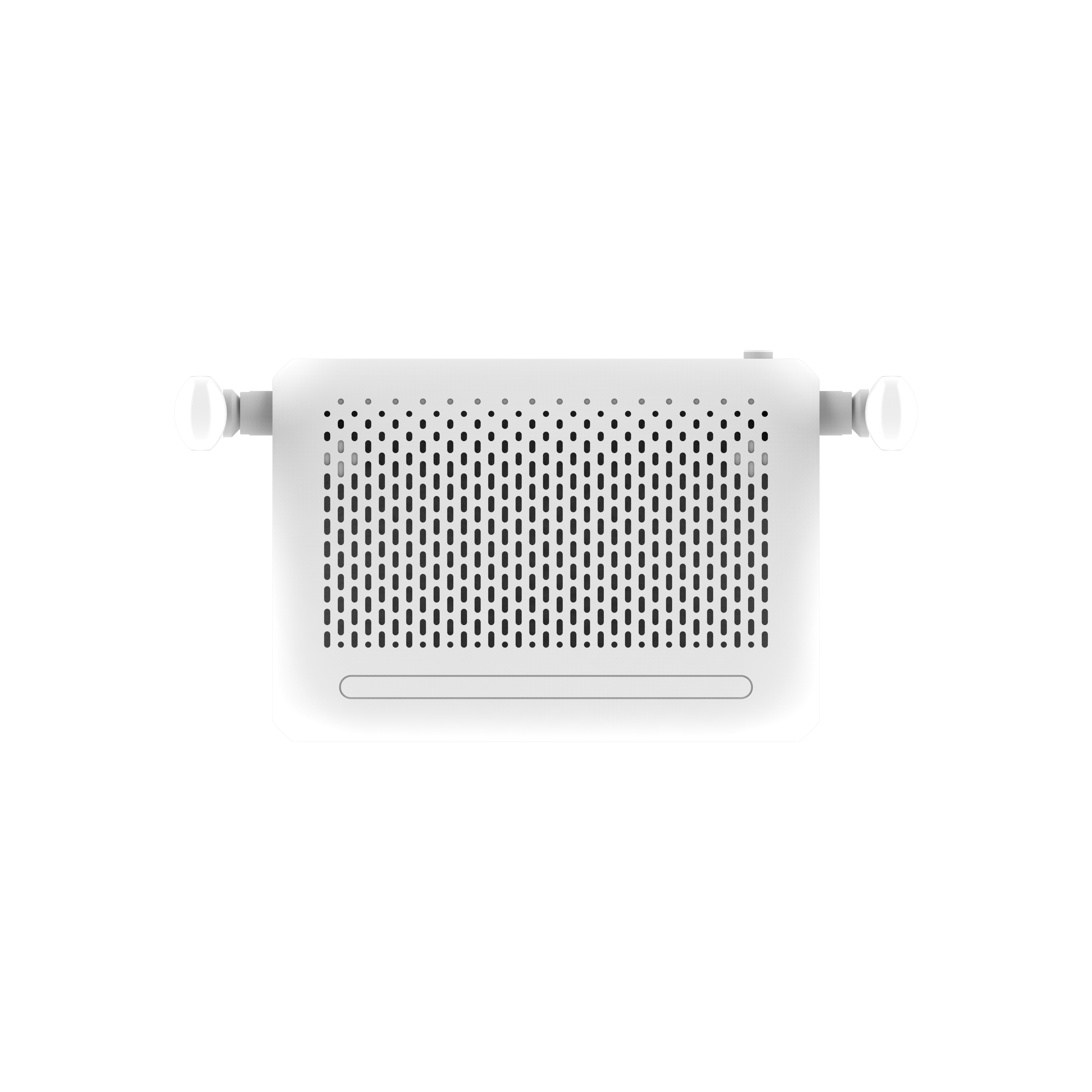

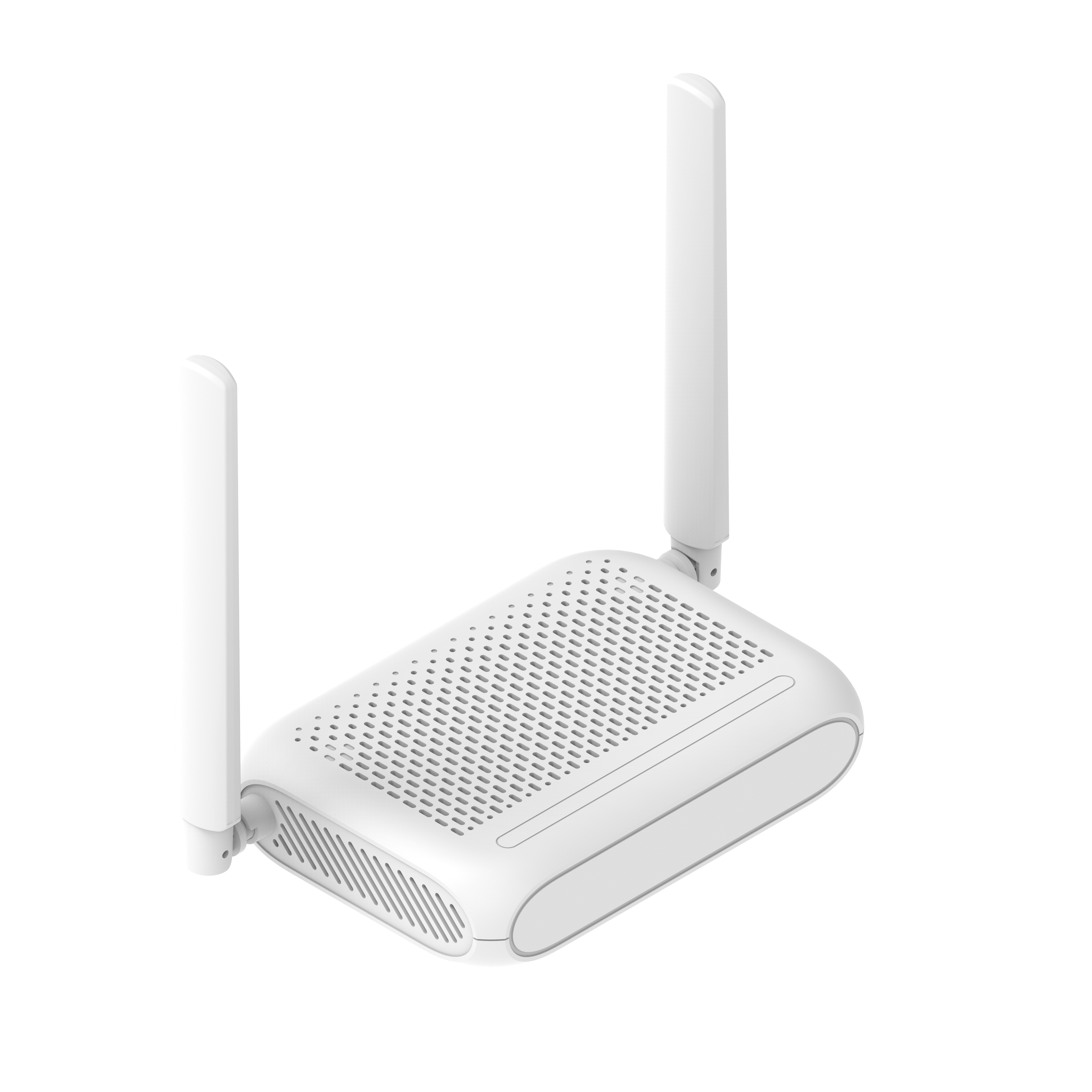

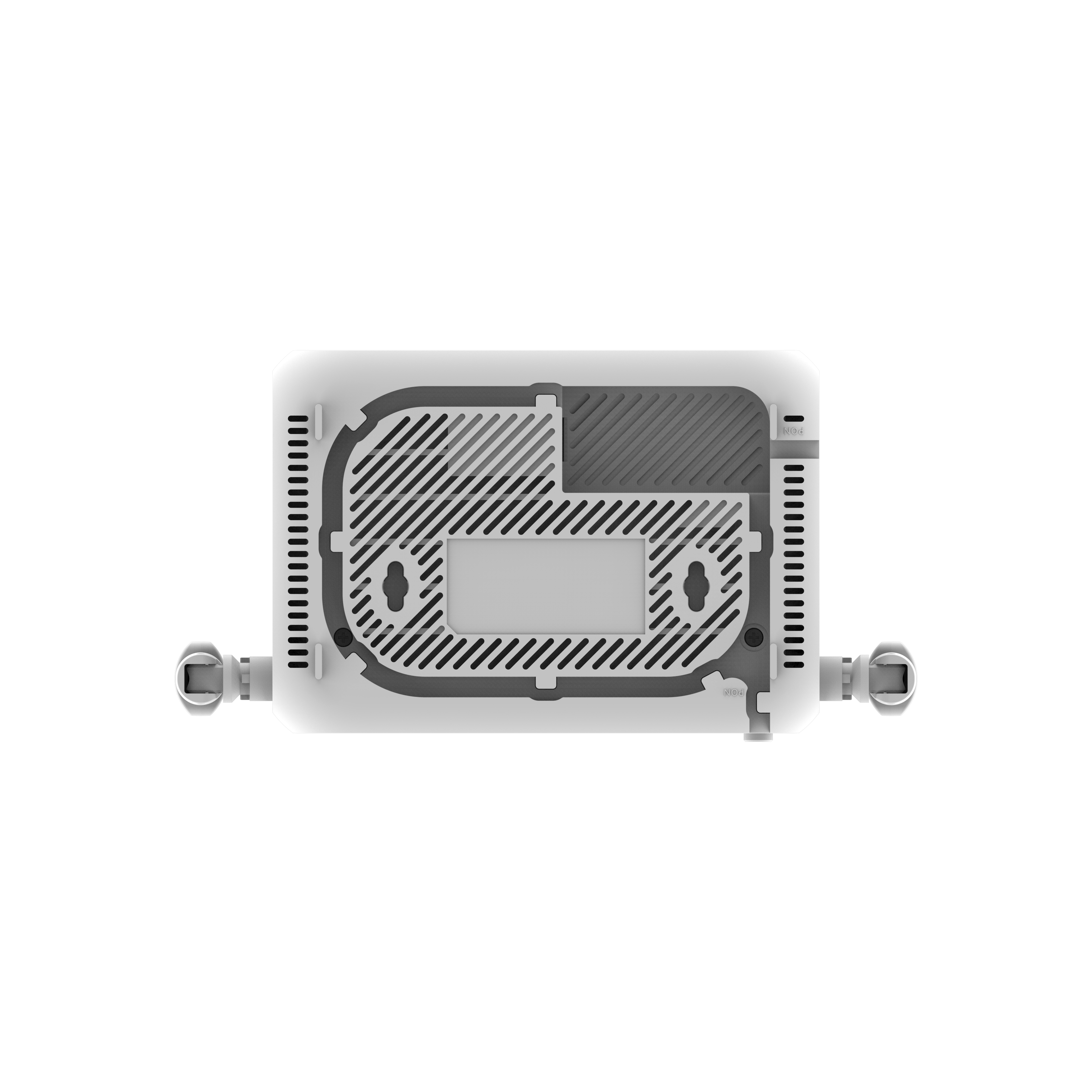

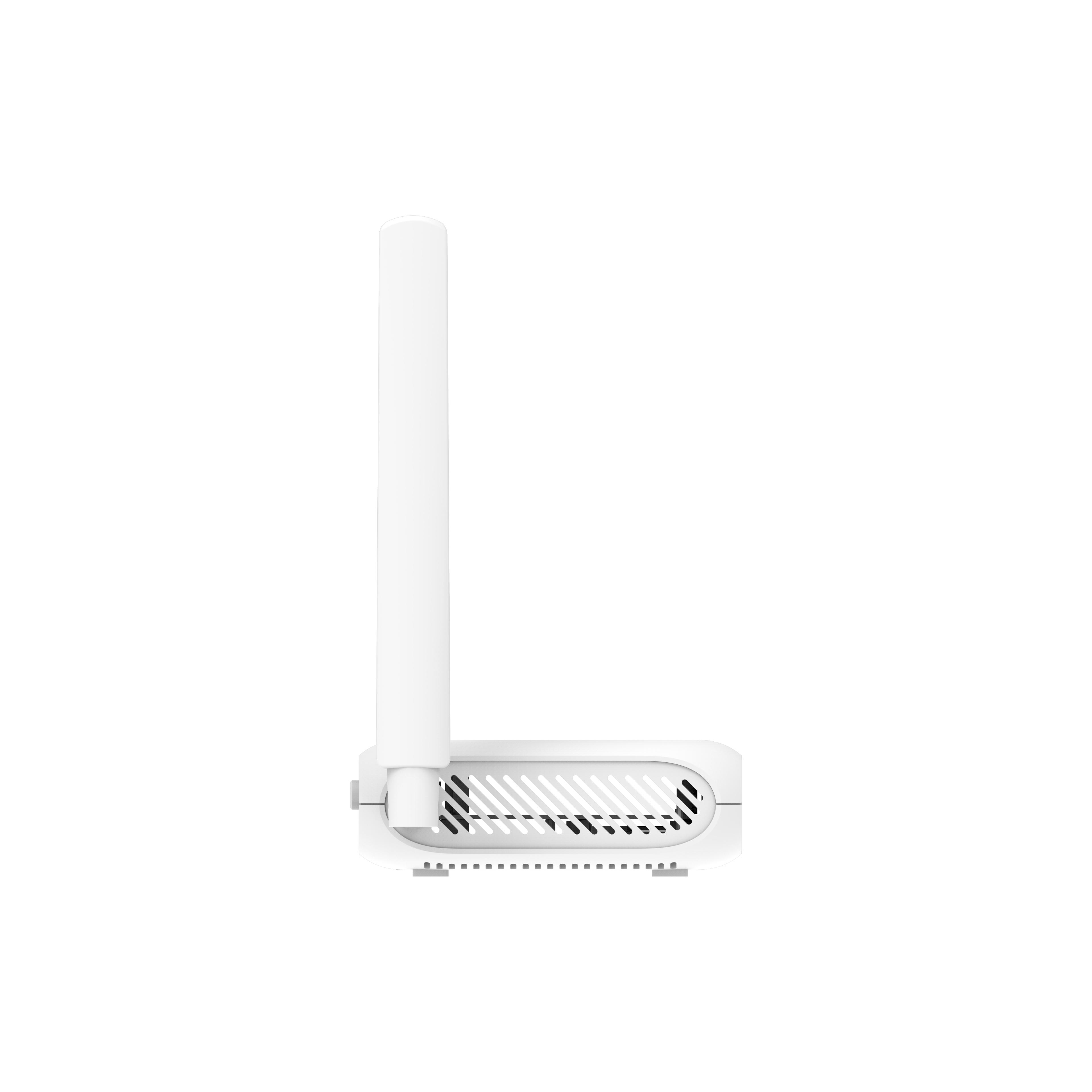

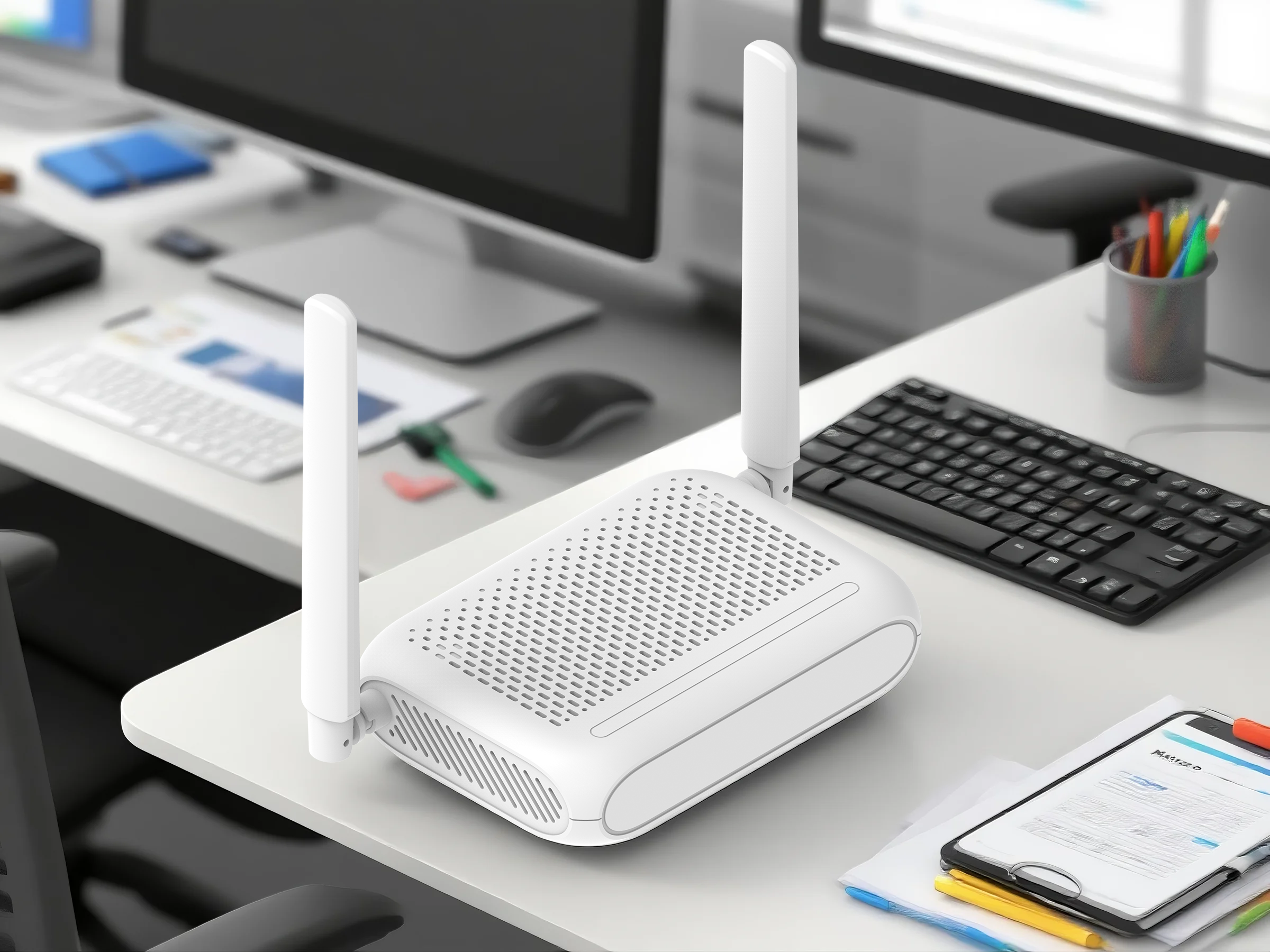

Built on the Sanechips ZX279128S platform, the ZLT G124VZ PRO is a versatile and cost-effective GPON gateway designed for seamless fiber-to-premises deployment. It connects upstream to major OLTs (Huawei, ZTE, Nokia, Fiberhome) via a 2.5G downlink/1.25G uplink GPON interface and delivers downstream connectivity through four Gigabit Ethernet ports and dual-band Wi-Fi 5 (AC1200) with 2×2 MIMO. Omni-directional antennas ensure full indoor coverage, while mesh functionality enables whole-home wireless networking.

●Hardware & Software Innovation
The gateway combines robust hardware—including 1Gb Flash, 2Gb DDR3 RAM, USB 2.0, and FXS telephone support—with advanced software capabilities. It supports multiple WAN modes (static IP/DHCP), VPN (PPTP/L2TP/IPsec client/server), TR069 remote management, and enterprise-grade security (firewall, MAC filtering, NAT, DMZ). IPv6/IPv4 compatibility, QoS, and VoIP features (jitter buffering, echo cancellation) further enhance its flexibility for diverse network environments.

●Reliable and Manageable
Designed for 24/7 operation (0°C to 45°C), the compact device (160×112×40mm) consumes ≤12W power. Administrators benefit from granular control via web/TELNET/TR069 interfaces, system diagnostics (ping/traceroute), and automated updates. With Wi-Fi customization (SSID broadcast, channel selection), concurrent support for 128+ devices, and industrial-grade reliability, the ZLT G124VZ PRO optimizes performance for modern residential and SMB networks.
