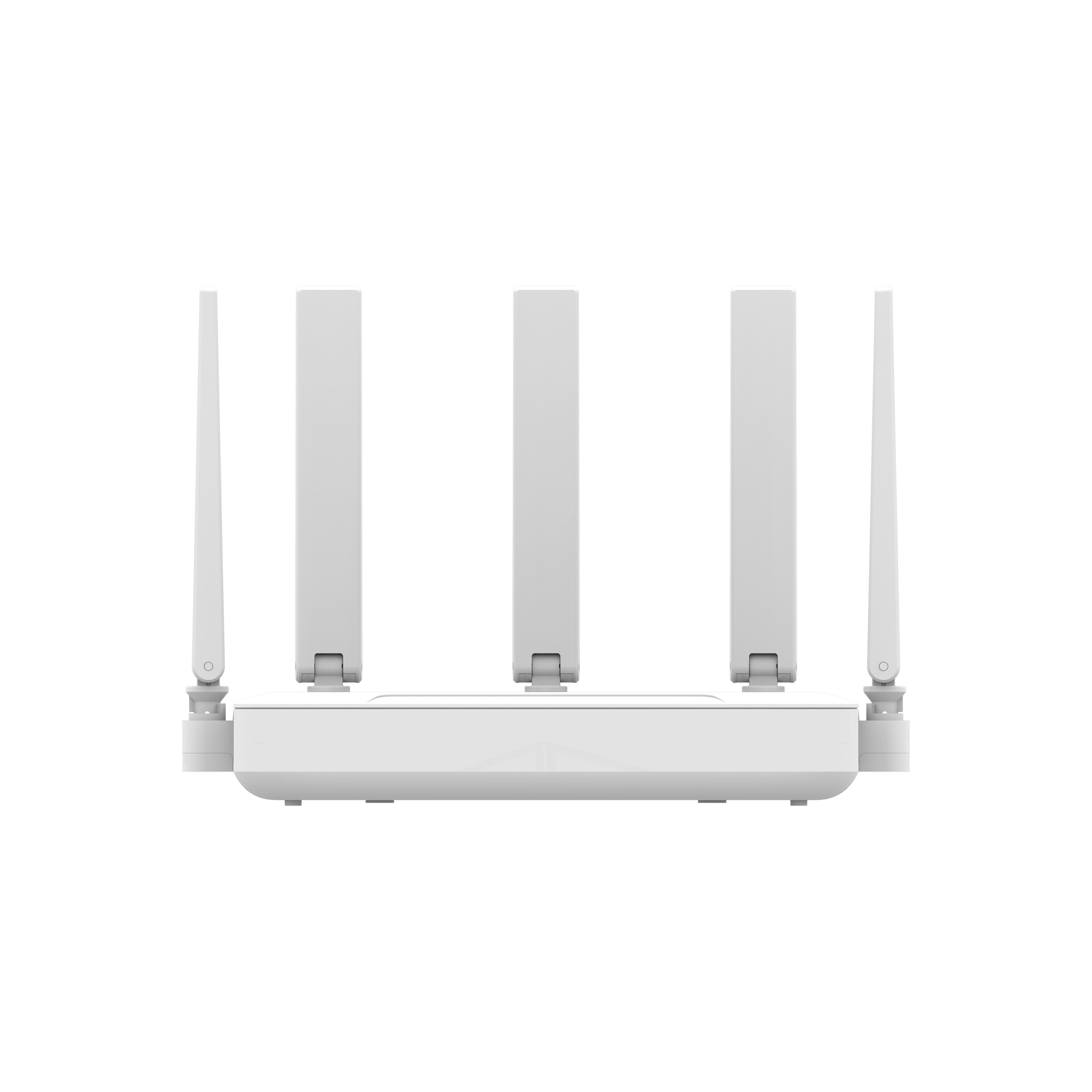

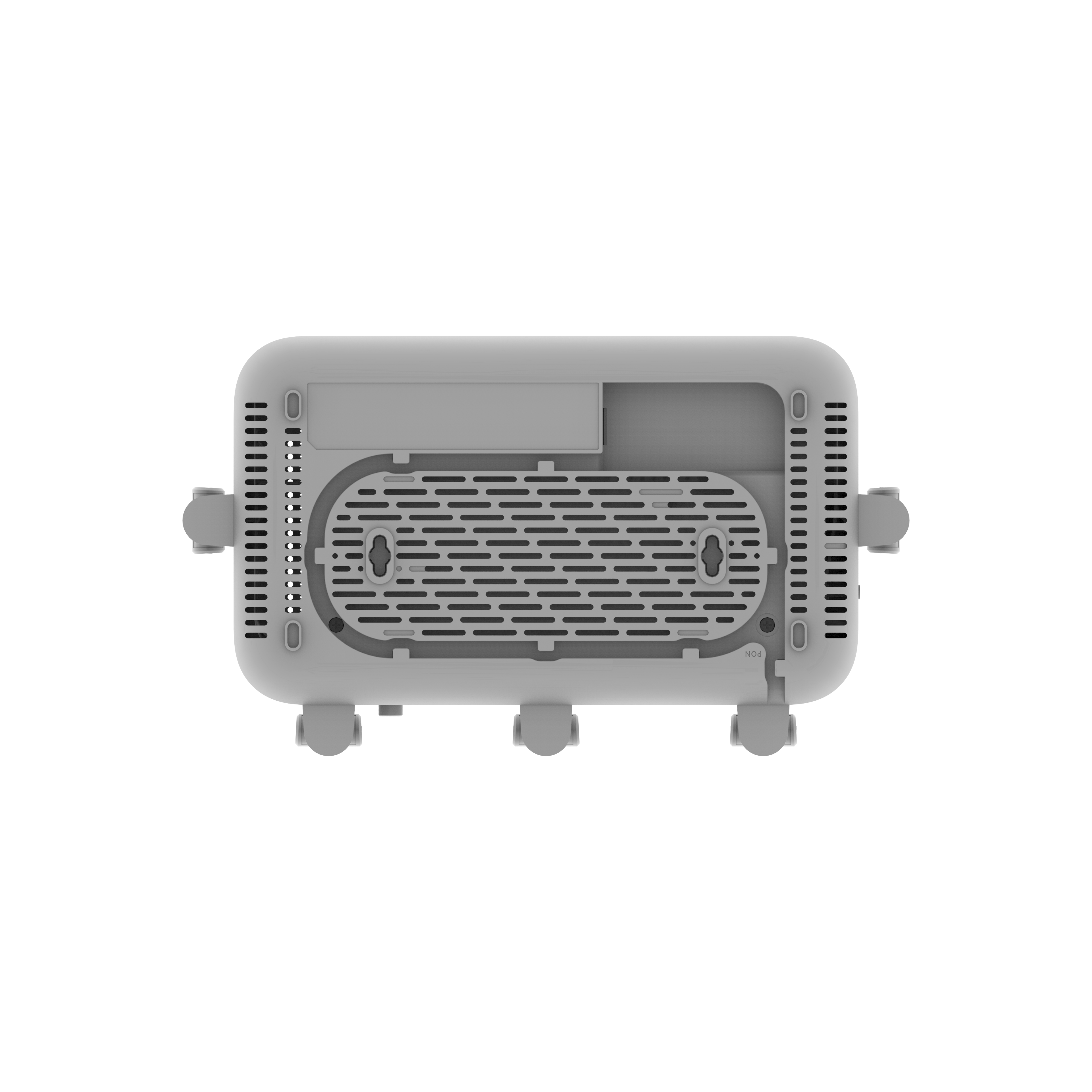

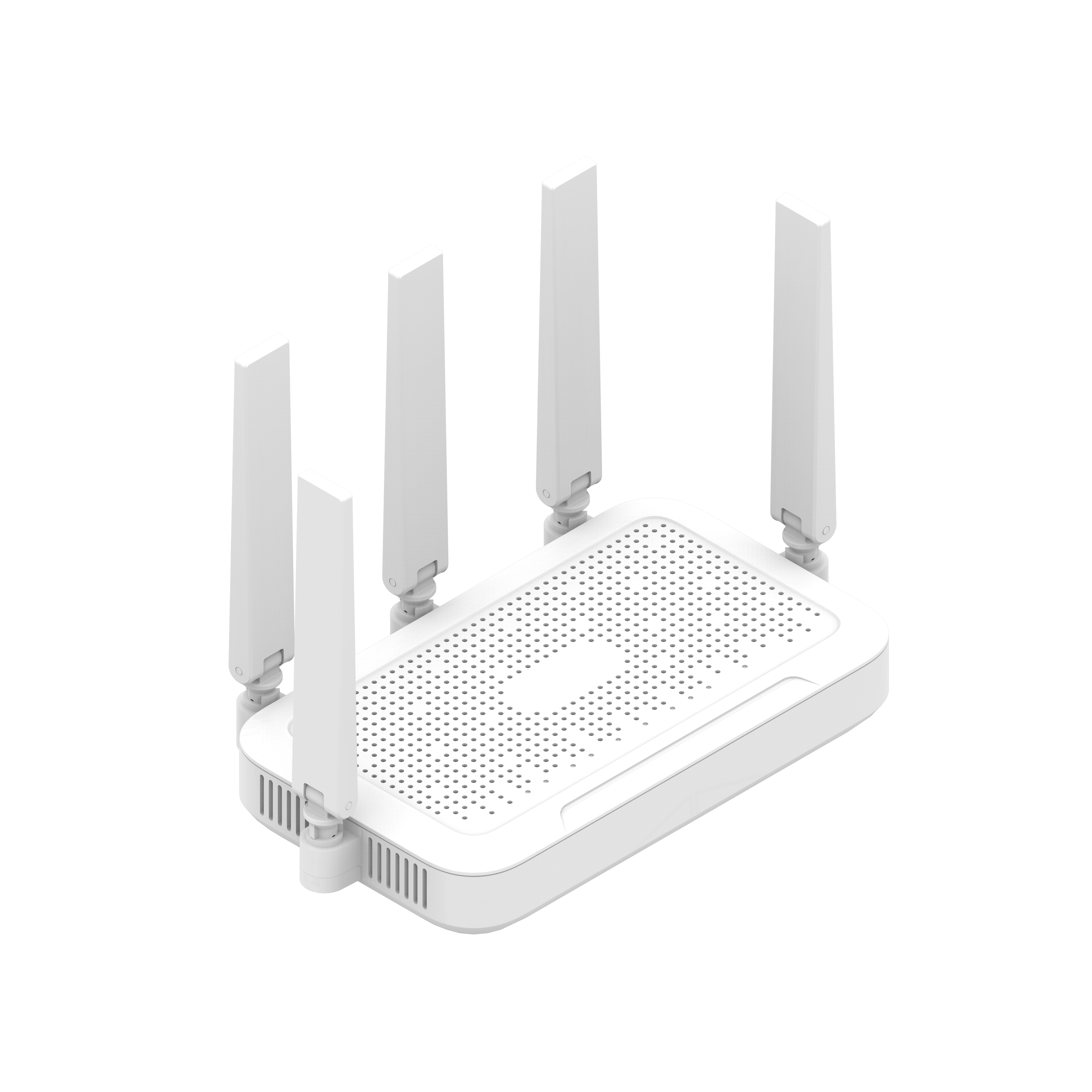

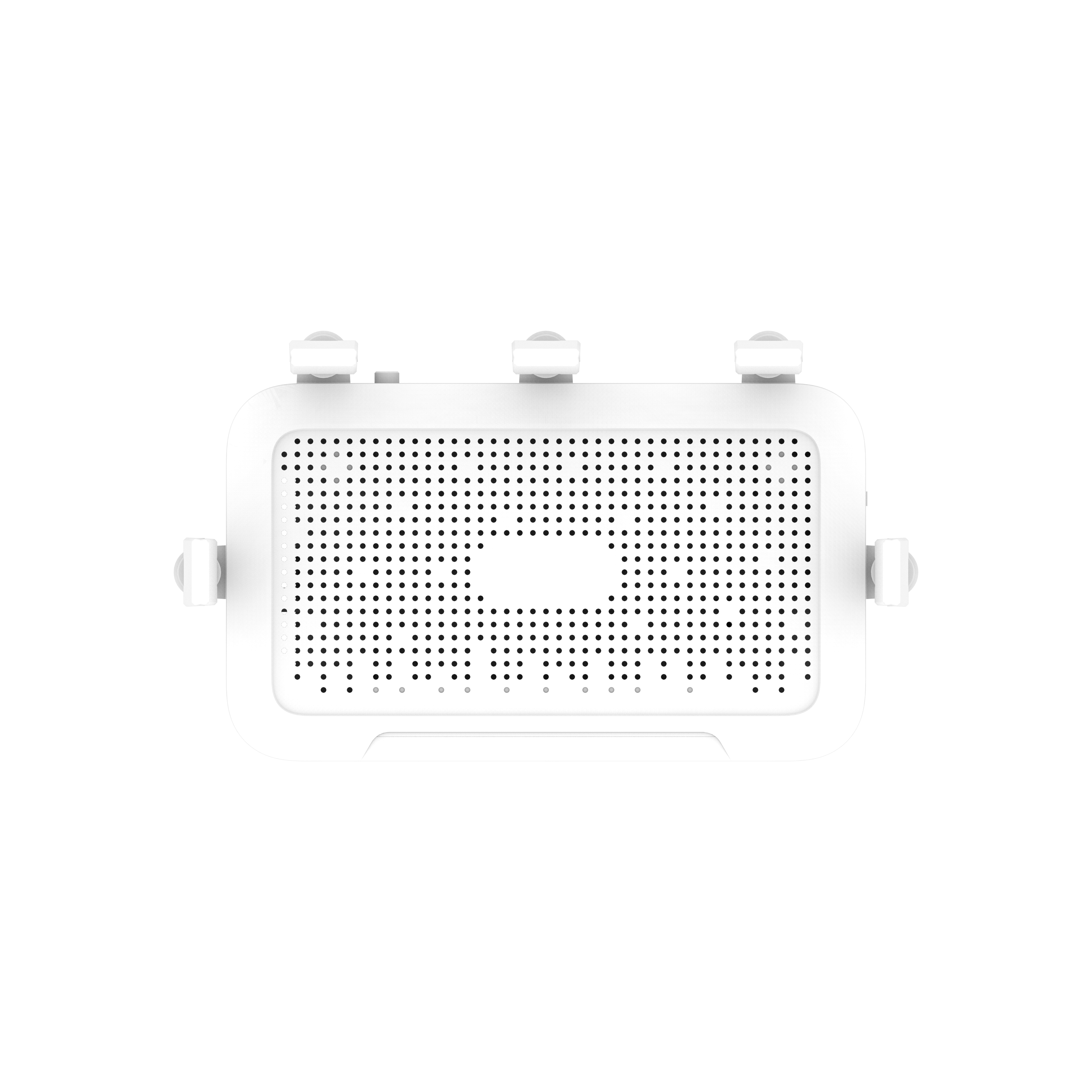

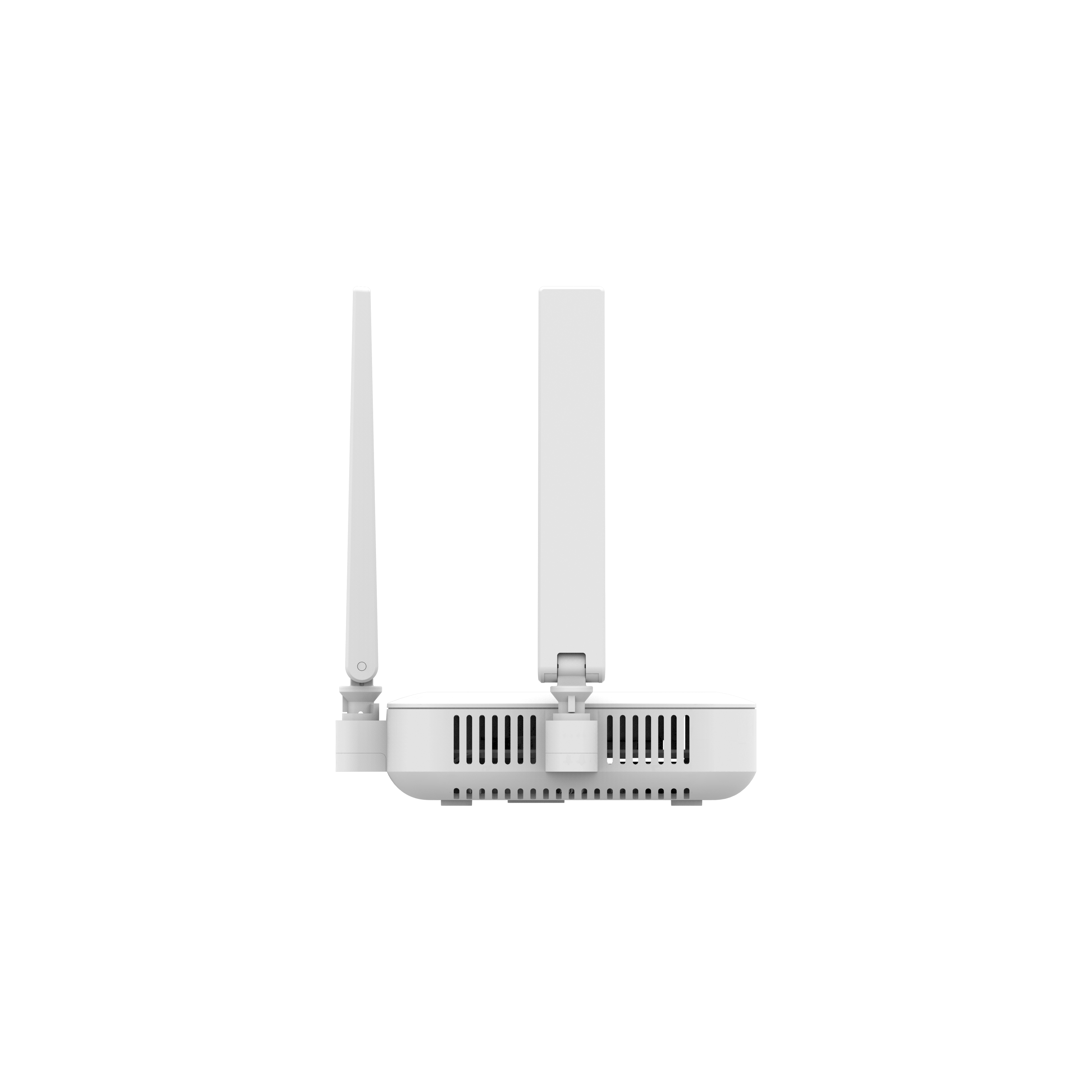

ZLT G3000A MAX

Designed for fixed network operators, the ZLT G3000A MAX is a high-performance GPON terminal that meets growing demands for FTTH deployment and triple-play services (data, voice, video). Combining proven AIROHA chipset technology with Wi-Fi 6 capabilities, it delivers exceptional value, reliability, and easy maintenance while guaranteeing QoS across diverse services.

Key Hardware Innovations:

●Ultra-Fast Connectivity: Dual-band Wi-Fi 6 (AX3600: 574Mbps @2.4GHz + 2400Mbps @5GHz) with 160MHz bandwidth and 5x omni-directional antennas for dead-zone-free coverage.

●Carrier-Grade Uplink: GPON interface compatible with major OLTs.

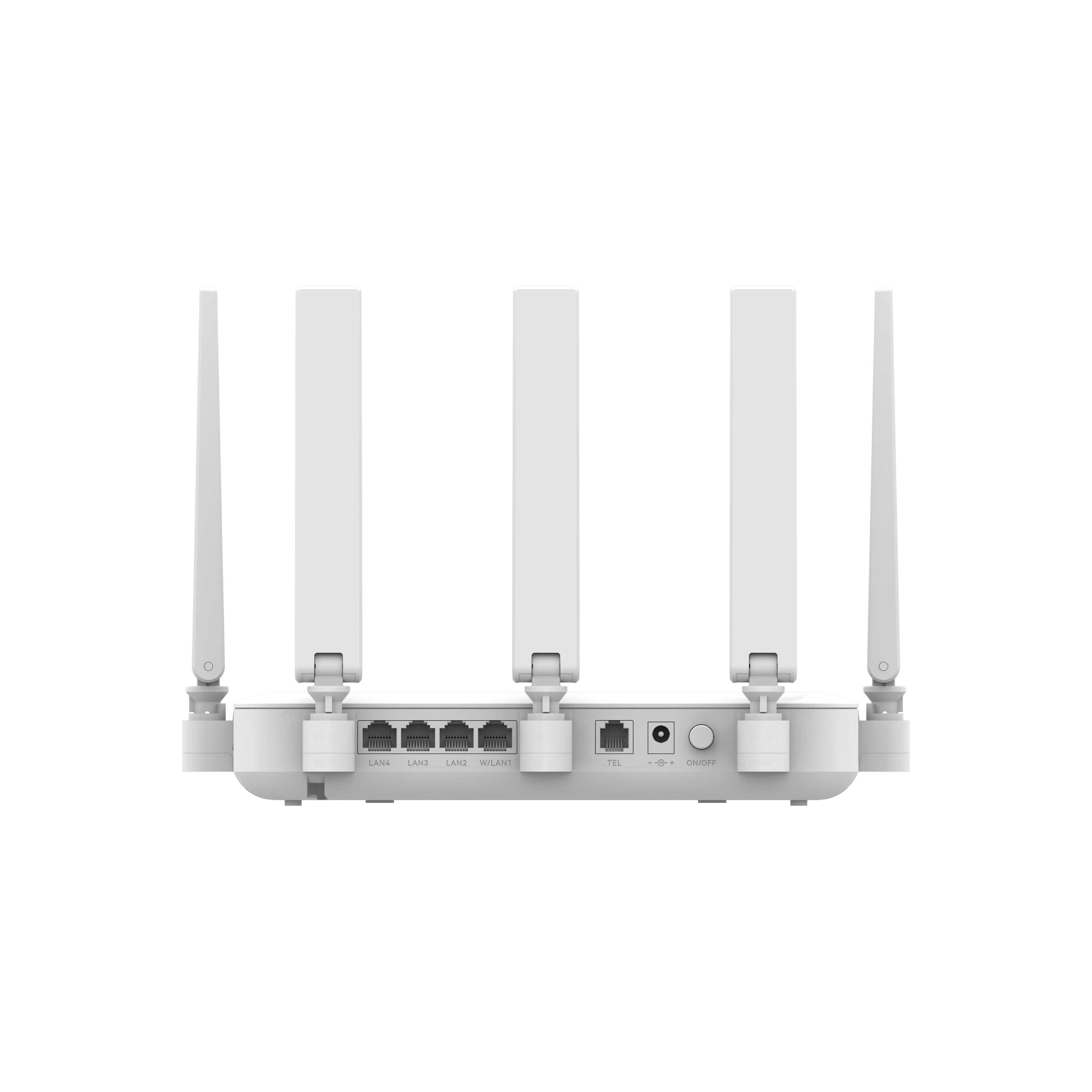

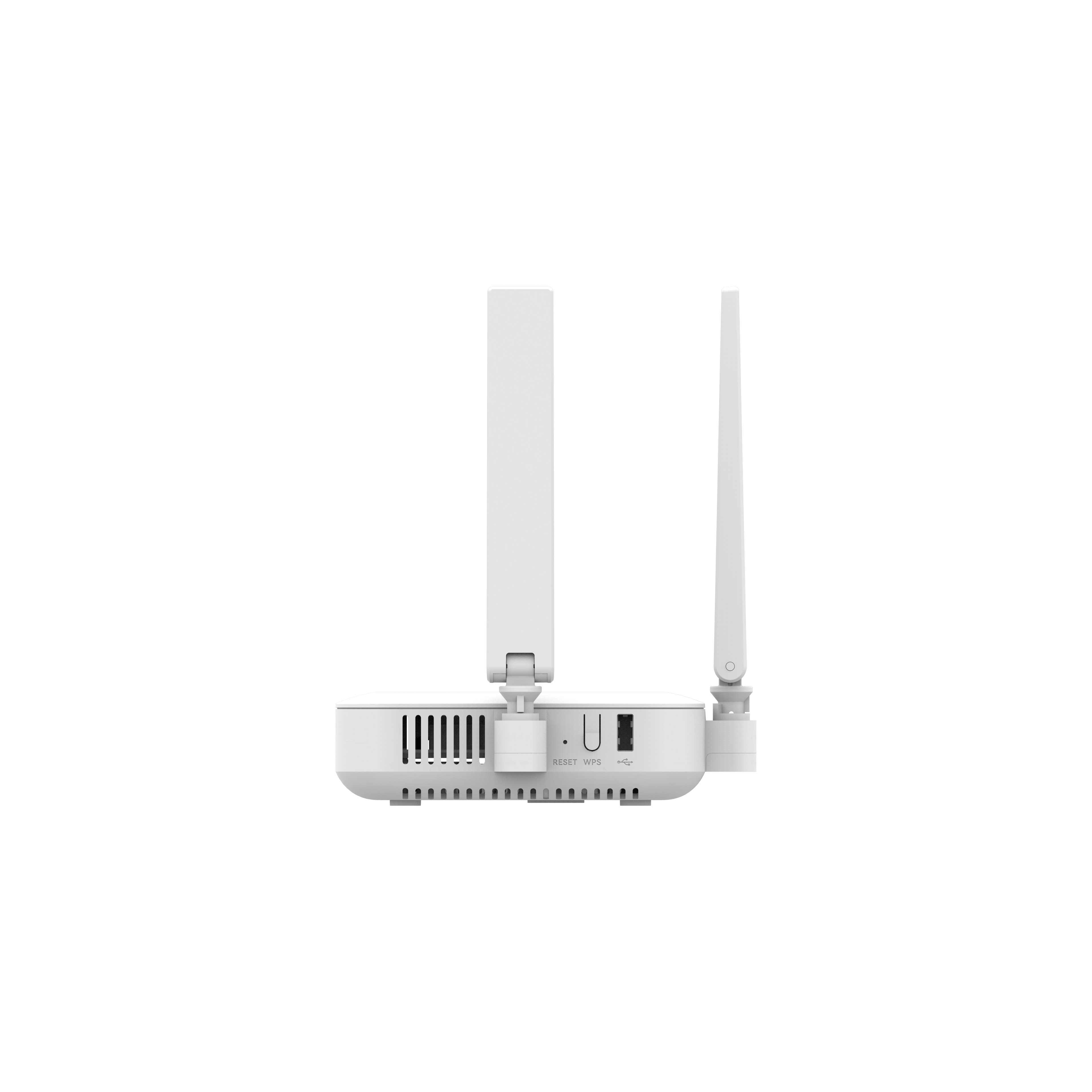

●Versatile Ports: 4x Gigabit Ethernet LAN, 1x FXS TEL port, USB 2.0, and SC/APC optical connector.

●Mesh-Ready: Enables seamless whole-home Wi-Fi expansion.

Advanced Software & Management:

●Flexible Networking: Supports static IP/DHCP, IPv4/IPv6, VPN (PPTP/L2TP/IPsec), NAT, DMZ, and firewall security (MAC/IP/URL filtering).

●Enterprise VoIP: SIP/IMS protocols with echo cancellation, jitter buffering, and loss compensation.

●Proven O&M: TR-069 remote management, OMCI/OAM, web/TELNET access, configuration backup, and zero-touch firmware upgrades.

●Robust Protocols: Full compliance with ITU-T G.984.x, IEEE 802.3ah, and 802.11a/b/g/n/ac/ax standards.

Specifications Highlights:

●Chipset: EN7529CT + MT7916AN + MT7976DN

●Memory: 1Gb Flash / 2Gb DDR3 RAM

●Power: 12V/1.5A (<18W consumption)

●Environment: 0°C to 45°C operating; -30°C to 75°C storage

●Dimensions: 256 x 148 x 40 mm (600g)

Ideal for operators seeking a scalable, feature-rich CPE, the G3000A MAX simplifies service delivery with carrier-grade performance, advanced management, and seamless Wi-Fi 6 coverage—all in a compact, energy-efficient design.
