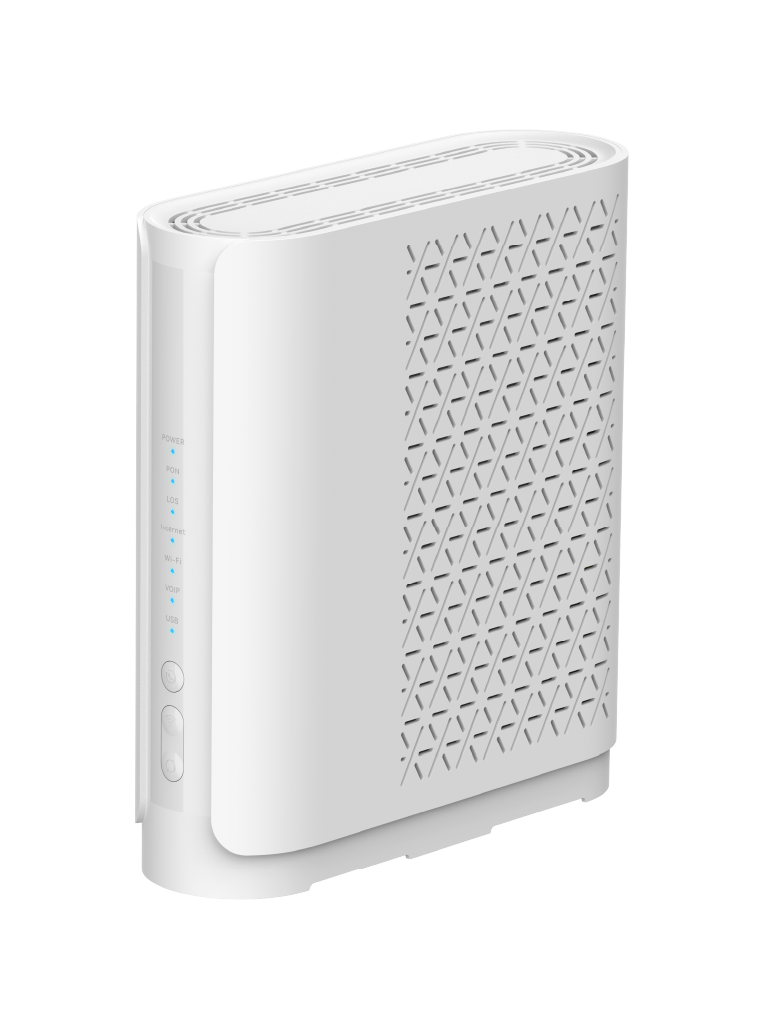

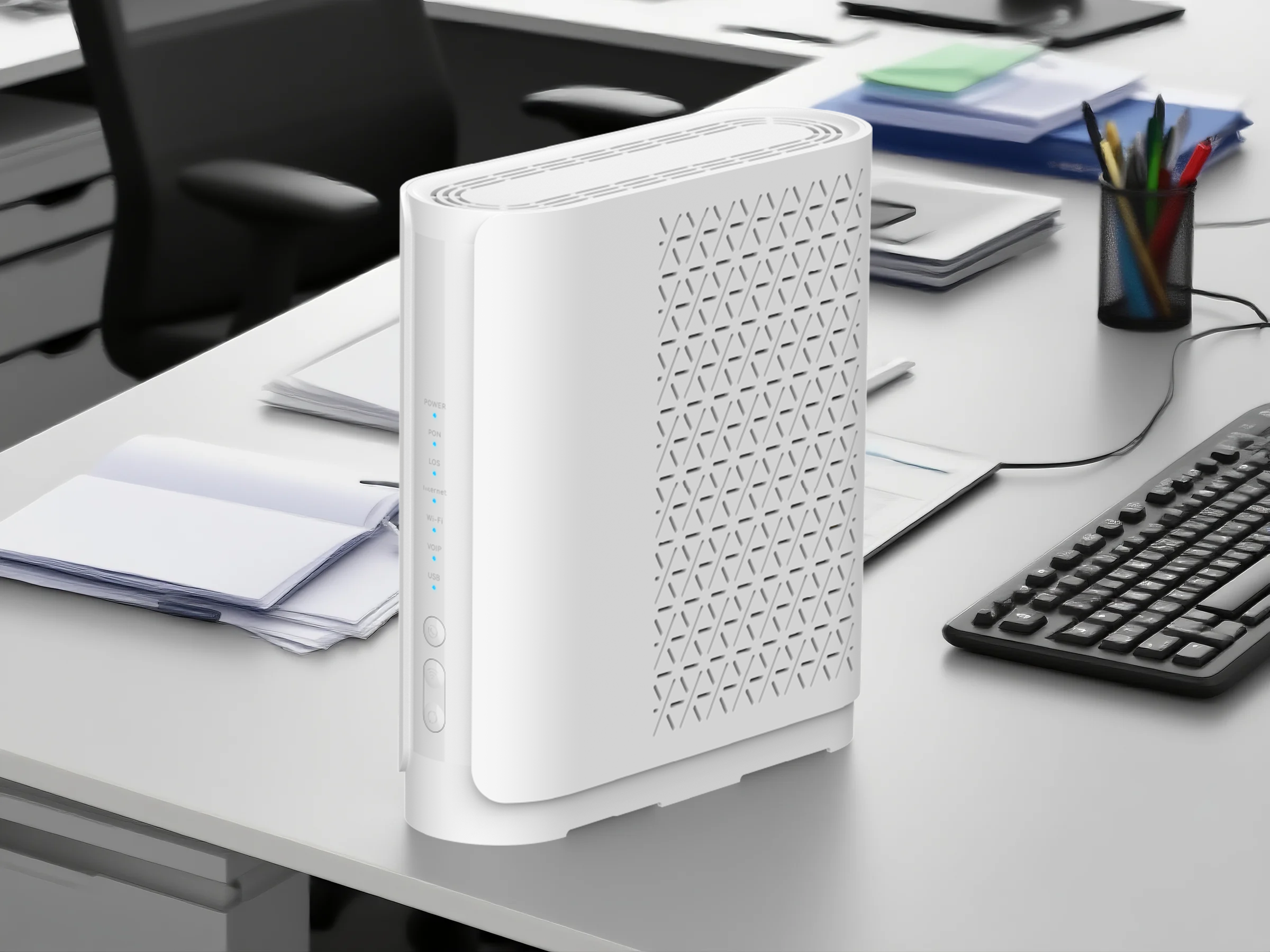

ZLT G7B4VA PRO

The ZLT G7B4VA PRO is a premium GPON Optical Network Terminal (ONT) designed specifically to meet the demanding FTTH and triple-play service requirements of fixed network operators. Built on mature AIROHA chipset technology, it delivers an exceptional price-to-performance ratio alongside advanced features for reliable, high-quality voice, data, and video delivery.

Advanced Hardware for Superior Connectivity

●Ultra-Fast Wi-Fi: Equipped with cutting-edge Wi-Fi 7 (802.11be) technology, supporting dual-band concurrent operation (2.4GHz & 5GHz), 4x4 MIMO, 160MHz channel bandwidth, and peak throughput up to 7200 Mbps for seamless wireless experiences.

●High-Speed Wired Networking: Features a versatile wired port configuration including 1x 2.5 Gigabit Ethernet port and 3x Gigabit Ethernet ports, catering to high-bandwidth devices.

●Robust Uplink: 1x GPON interface (2.488Gbps down / 1.244Gbps up) ensures high-speed fiber backhaul, compatible with major OLT vendors like Huawei, ZTE, Nokia, and Fiberhome.

●Enhanced Telephony: 2x FXS ports with support for multiple codecs (G.711/G.723/G.726/G.729), fax modes (T.30/T.38), and voice enhancements (echo cancellation, jitter buffering).

●Omni-Directional Coverage: Internal antenna design ensures comprehensive indoor Wi-Fi coverage without dead zones.

●Future-Ready: Includes USB 2.0 port and supports mesh networking for whole-home high-speed wireless coverage.

Intelligent Software for Flexibility & Control

●Multiple WAN Modes: Supports Static IP, DHCP, and PPPoE for flexible internet connection setup.

●Advanced Networking: Comprehensive Layer 2/3 features including IPv4/IPv6, VLAN (802.1Q, 802.1ad), QoS, NAT, DMZ, DDNS, IGMP Snooping, and multicast support.

●Enterprise-Grade VPN: Functions as both VPN Client and Server, supporting PPTP, GRE, L2TP, and IPSec protocols.

●Enhanced Security: Robust firewall with ACL/MAC/URL filtering, DoS protection, IP/Port filtering, MAC filtering, port mapping, and speed limiting.

●VoIP Excellence: Supports SIP and IMS-SIP protocols with critical voice enhancements for crystal-clear calls.

Simplified Management & Reliability

●Centralized Control: Fully manageable as an HGU device via TOZED OLT using OMCI (including private protocols) and industry-standard TR069 for remote configuration, monitoring, and firmware upgrades.

●Multiple Access: Offers local management through user-friendly Web UI (HTTP/HTTPS) and TELNET.

●Diagnostics & Maintenance: Features comprehensive system logs, diagnostic tools (Ping, Traceroute), easy configuration backup/restore, and local/remote firmware upgrade options.

●QoS Guaranteed: Ensures prioritized service delivery for voice, video, and data.

●Standards Compliant: Adheres to GPON (ITU-T G.984.x), Ethernet (IEEE 802.3ah), and relevant Wi-Fi (IEEE 802.11 a/b/g/n/ac/ax/be) standards.

Key Specifications Snapshot

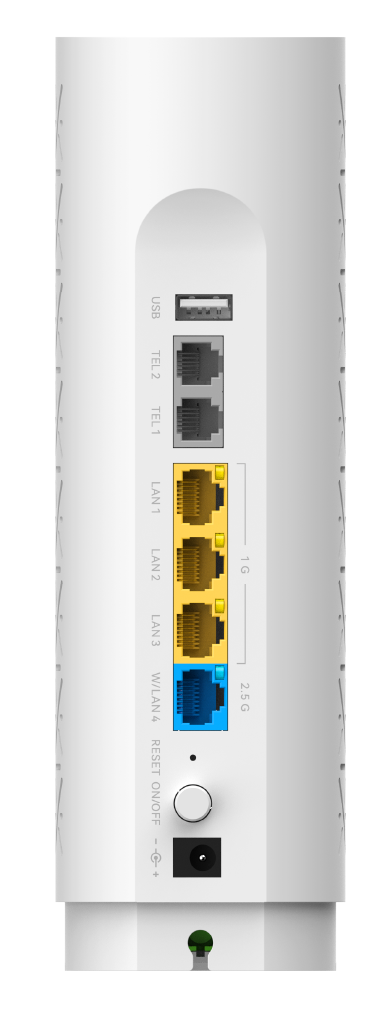

●Ports: 1x GPON (SC/APC), 1x 2.5GbE + 3x GbE LAN, 2x FXS (RJ11), 1x USB 2.0, DC 12V/3A

●Wi-Fi: Dual-Band Wi-Fi 7 (BE7200: 1600Mbps@2.4GHz + 5600Mbps@5GHz), 4x4 MIMO, WPA3 Security

●Management: TR069, OMCI, Web UI (HTTP/HTTPS), TELNET

●Power: ≤ 36W Consumption, 12V/3A Adapter

●Environment: Operating: 0°C to +40°C; Storage: -30°C to +75°C

The ZLT G7B4VA PRO combines cutting-edge hardware, intelligent software, and comprehensive manageability into a highly reliable and easy-to-maintain solution, guaranteeing quality of service for diverse operator deployments.
