ZLT M30S PRO

The ZLT M30S PRO is a versatile Type-C powered device designed to transform 3G/4G cellular network data into a reliable, high-speed Wi-Fi 6 signal. Its compact form factor (103 x 59 x 16 mm) and substantial battery (2500mAh/3000mAh) make it the perfect solution for staying connected anywhere – ideal for homes, small shops, travel, and personal mobile internet needs.

●Powerful Hardware for Global Connectivity:
Powered by a Sanechips 4G chipset (ZX297520V3T+ZX234230A, AIC8800DW Wi-Fi), the M30S PRO supports global 4G bands (FDD: B1/3/5/7/8/20/28; TDD: B38/40/41) and legacy 3G/2G networks. It delivers impressive speeds (DL: 150Mbps, UL: 50Mbps) and features 2x2 MIMO LTE antennas. The dedicated 2.4GHz Wi-Fi 6 (802.11ax) radio operates on 40MHz bandwidth, offering peak rates up to 286.8Mbps and supporting up to 8 concurrent users. Connectivity is simplified via the Type-C port (supporting 9W PD fast charging optionally) and RNDIS USB networking.

●Advanced Software & Management Features:
Beyond basic routing (NAT, DHCP, Static Routing), the M30S PRO includes enterprise-grade capabilities essential for security and control. It features a configurable firewall (IP/MAC/Port/URL filtering, DMZ, Port Mapping), VPN passthrough support, and multi-SSID functionality. Comprehensive management is available via a user-friendly web interface or remotely via TR069, including diagnostics, system logs, dual-account access, multi-APN, SMS handling, PIN/PUK management, and traffic statistics. IPv6/IPv4 dual-stack support ensures future compatibility.

●Reliable and Secure:

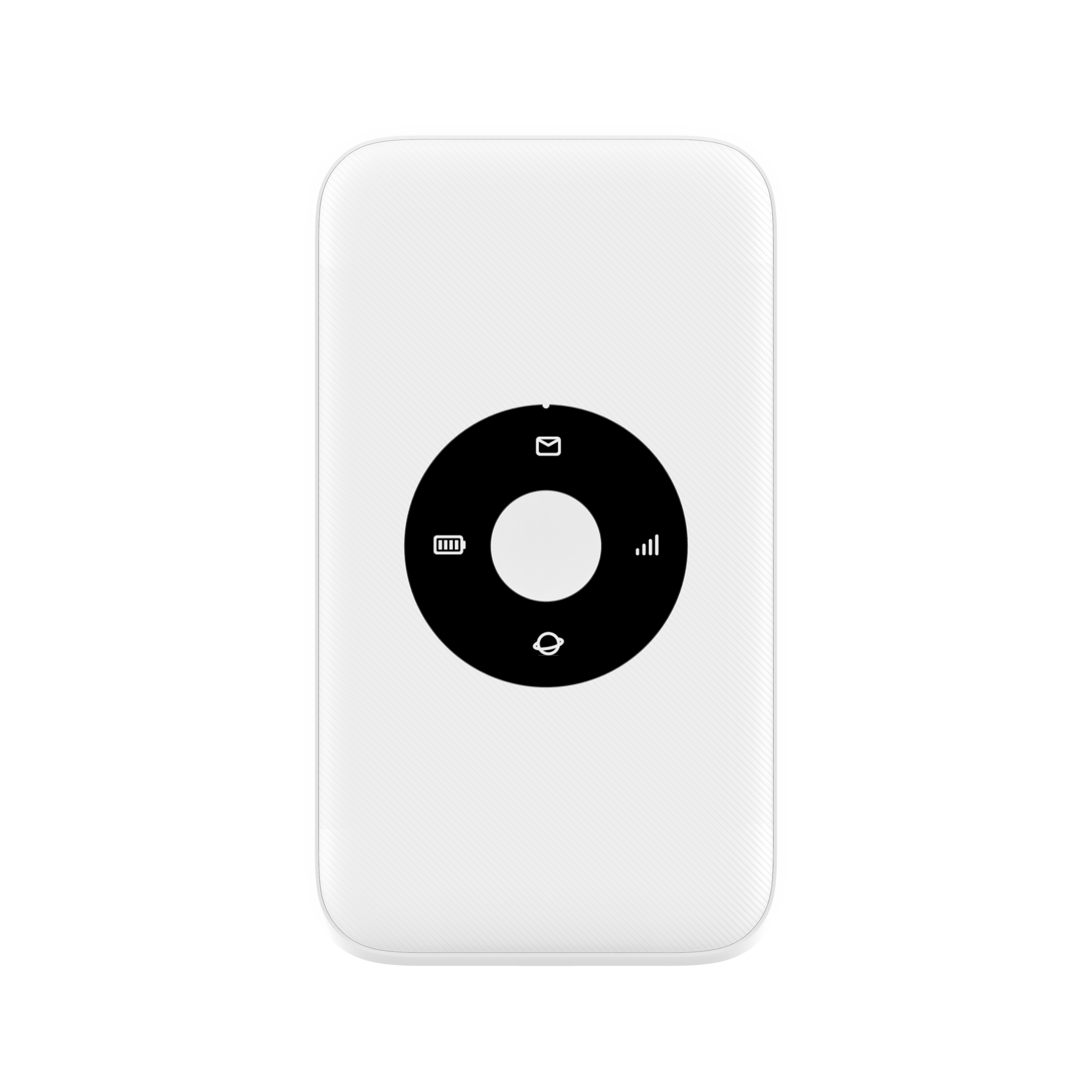

Built with robust security protocols (WPA2/WPA3-PSK) and equipped with essential indicators (Signal, Network, Battery, SMS), the M30S PRO provides a secure and user-friendly mobile broadband experience. Its efficient design ensures low power consumption (<5W), operating reliably within a 0°C to 45°C range.

In summary, the ZLT M30S PRO combines global 4G connectivity, Wi-Fi 6 performance, long battery life, and advanced networking features in a pocket-sized device, delivering a powerful and flexible internet solution for mobile users and small-scale deployments.
