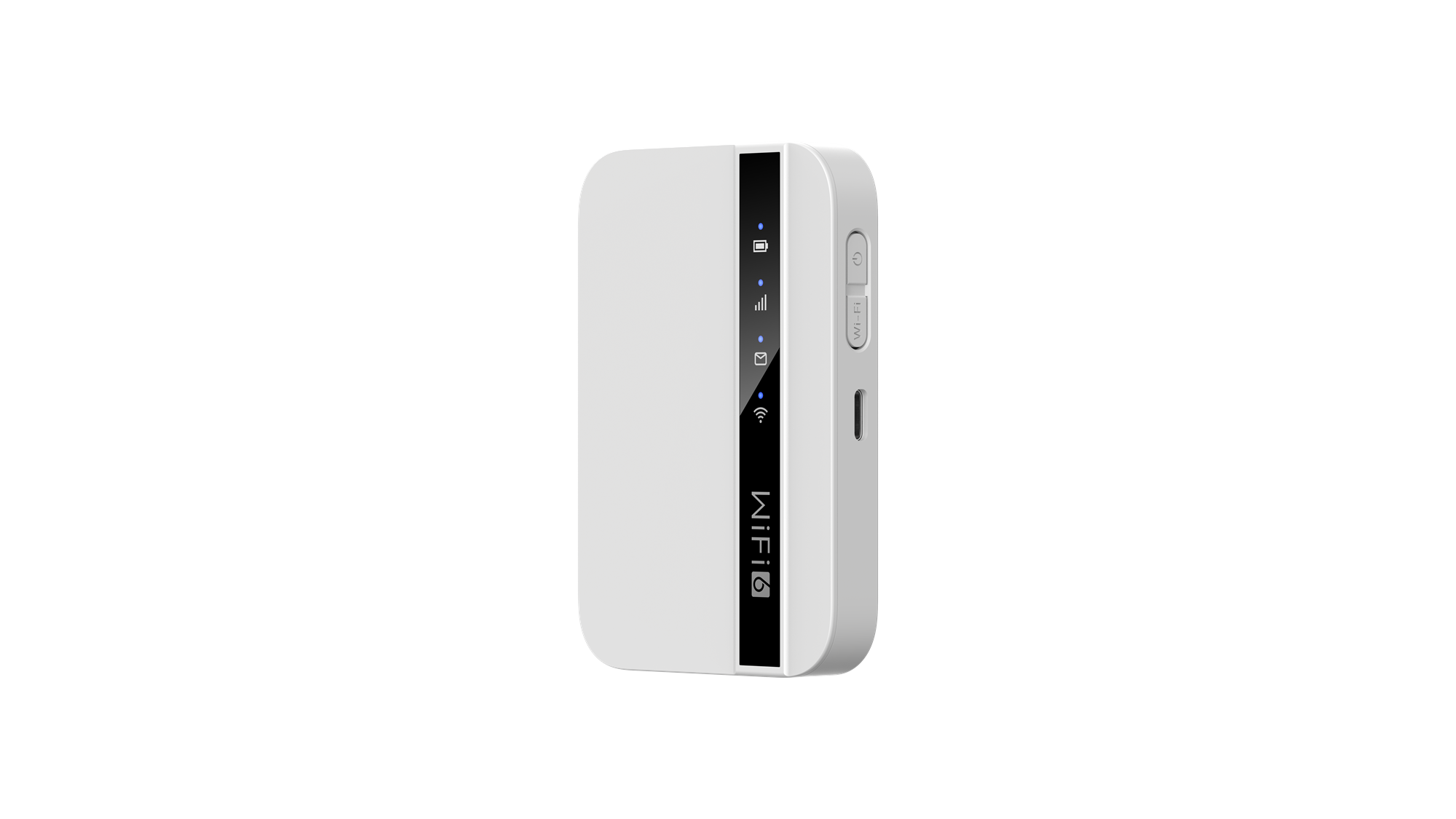

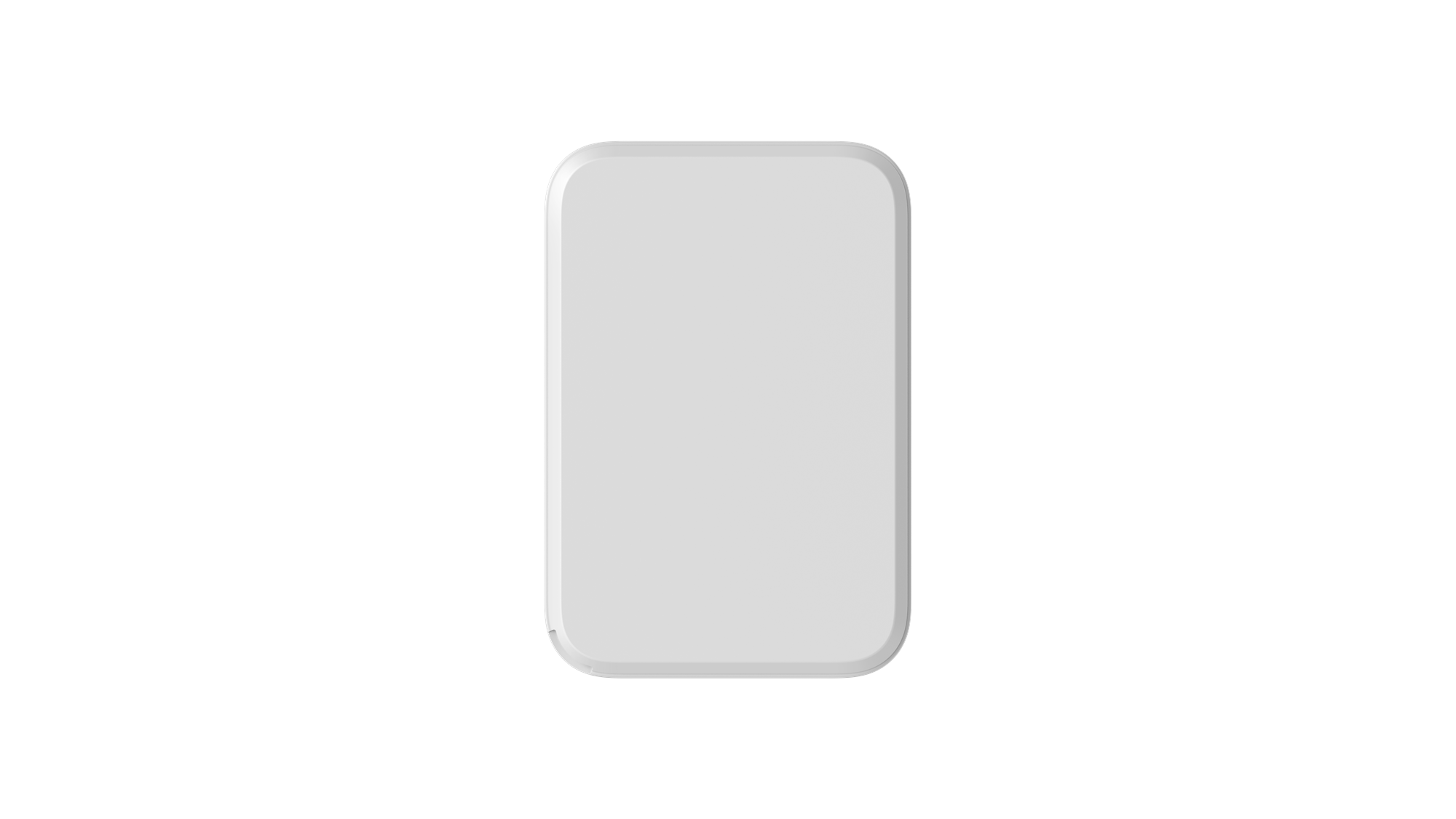

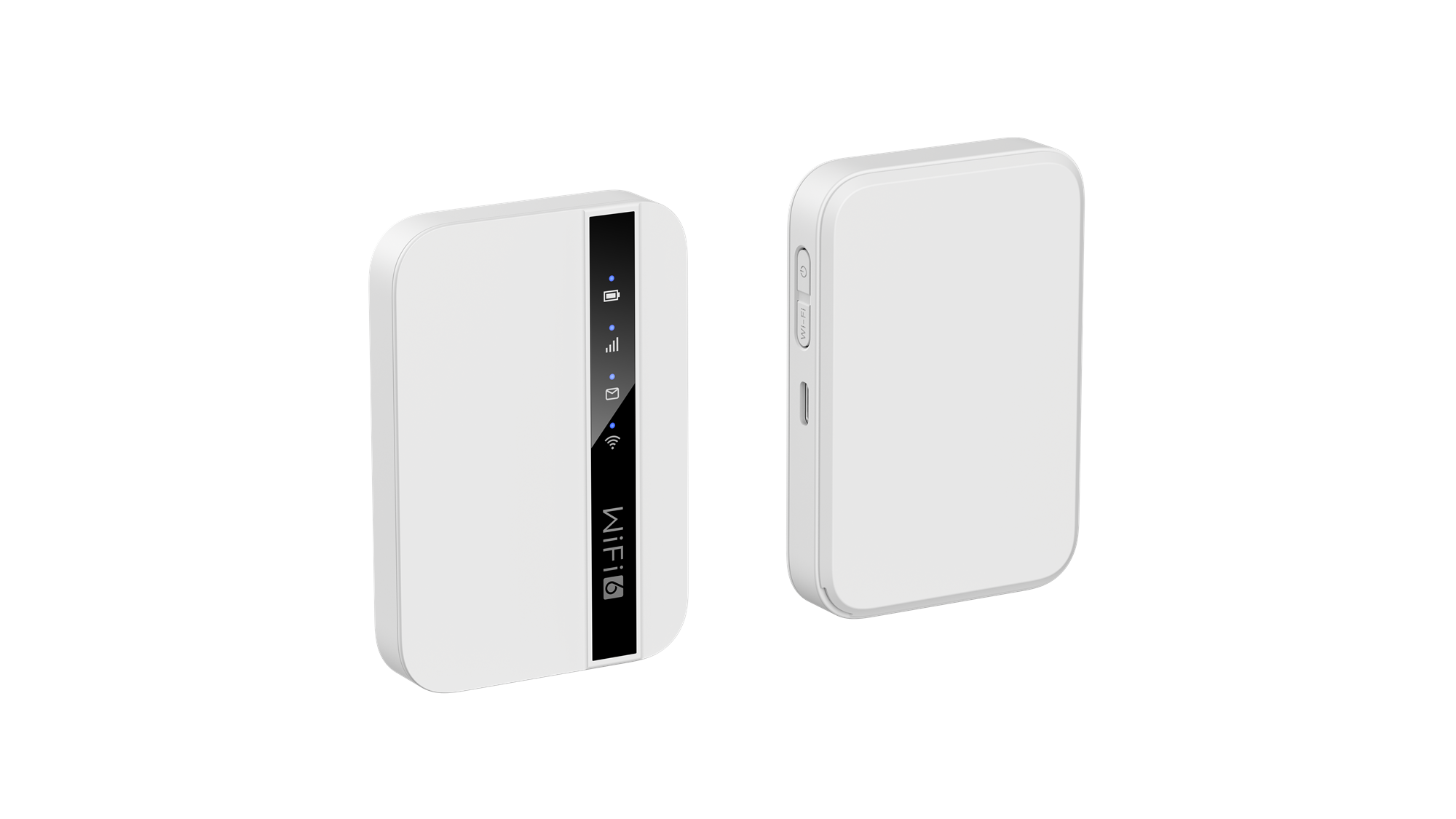

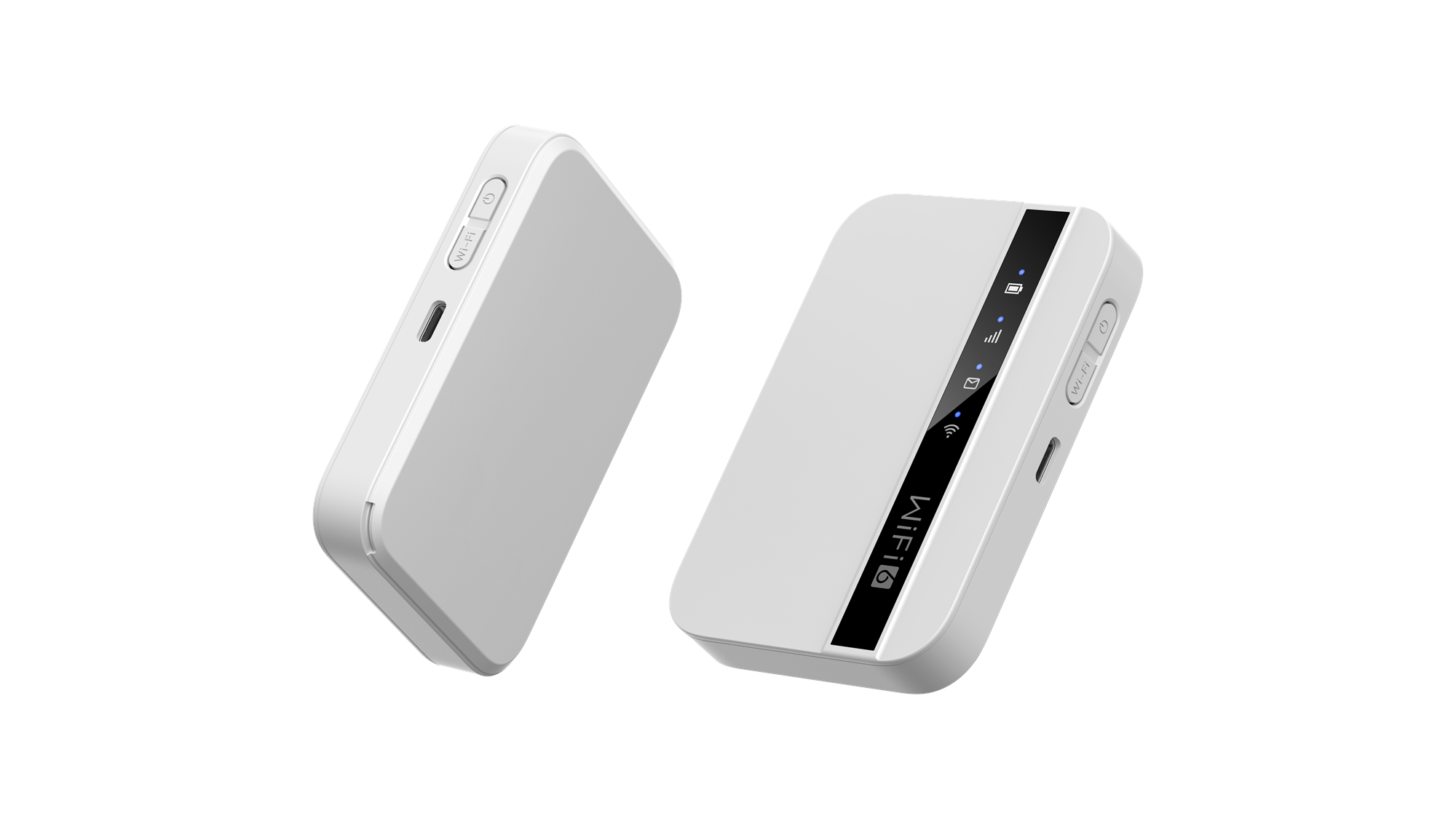

ZLT M36

4G MIFI

Convert 4G/LTE networks (150Mbps DL/50Mbps UL) into efficient dual-band Wi-Fi 6 (AX300-class) for 8 users. Features global band support, 2100mAh battery, and USB-C power in a pocket-sized design (95×65×14.7mm). Ideal for travel, backup internet, and mobile workspaces with enterprise-grade security (VPN/firewall/WPA3).

Introduction

The ZLT M36 transforms 3G/4G signals into high-efficiency Wi-Fi 6 connectivity. With global LTE band support (B1/3/5/7/8/20/38/40/41) and CAT4 speeds (150Mbps downlink/50Mbps uplink), it delivers reliable broadband for remote work, travel, and emergency backup – no fixed infrastructure required.

●Advanced Wi-Fi 6 Performance
Dual-Band AX300-class: 2.4GHz (574Mbps) + 5GHz (1200Mbps) with 40MHz channels

Optimized Throughput: Up to 280Mbps real-world speed for 8 concurrent devices

Wi-Fi 6 Features: OFDMA efficiency, 1024-QAM, and WPA3 security

●Enterprise-Grade Control
Network Management: Dual-account web UI, TR069 remote administration, multi-SSID/APN

Security Suite: IP/MAC/URL filtering, VPN passthrough, DMZ, and firewall

Diagnostics: SMS support, traffic statistics, Ping/Traceroute tools

●Compact & Resilient Design
All-Day Power: 2100mAh battery + USB-C 5V/2A charging

Field-Ready: -20°C to 65°C operating range, <100g weight

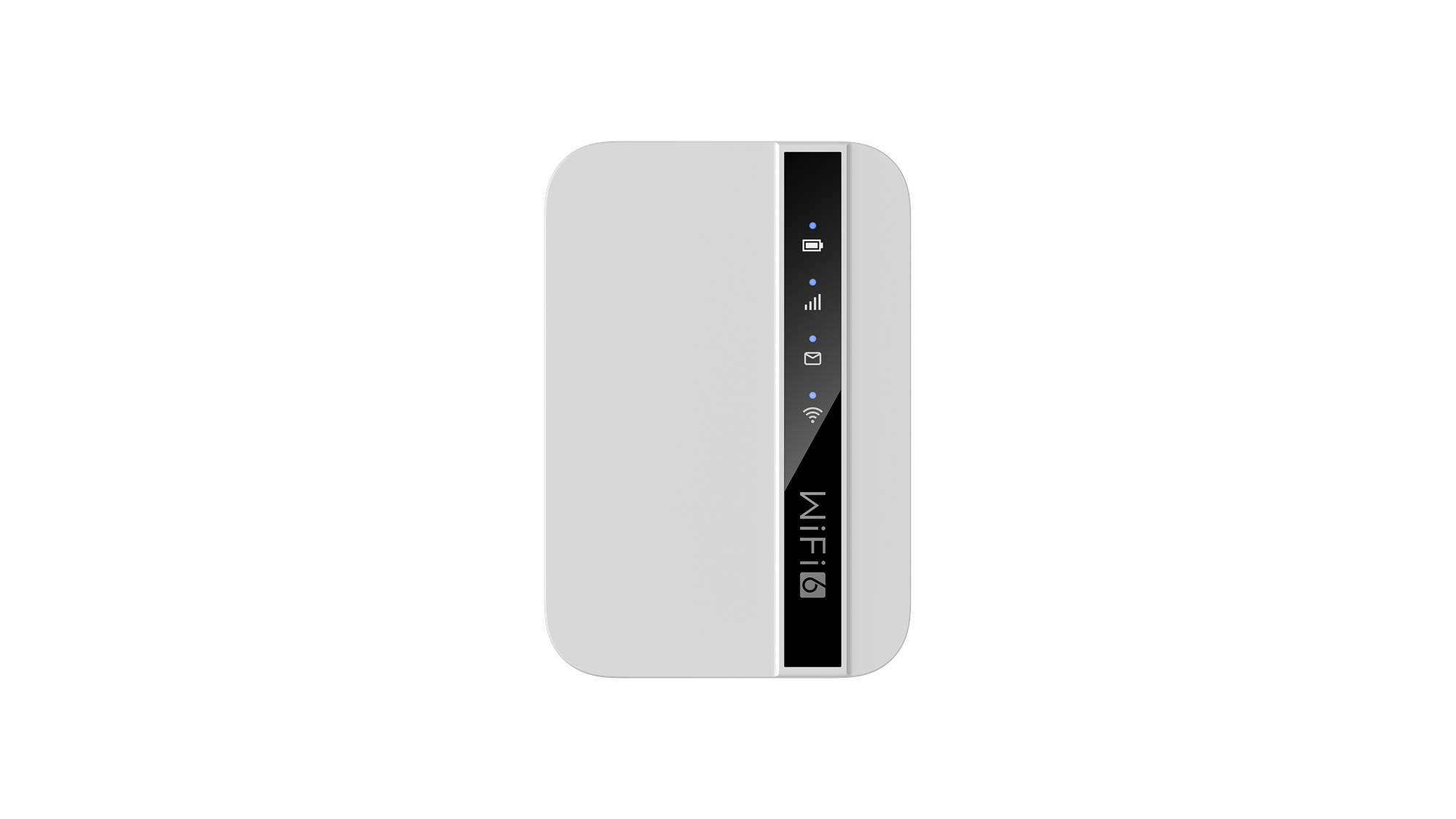

Intuitive Interface: LED status indicators (signal/battery/SMS/Wi-Fi), one-touch Wi-Fi button

Specifications

Feature	Description
Cellular Network Mode	TDD-LTE/FDD-LTE/HSPA+

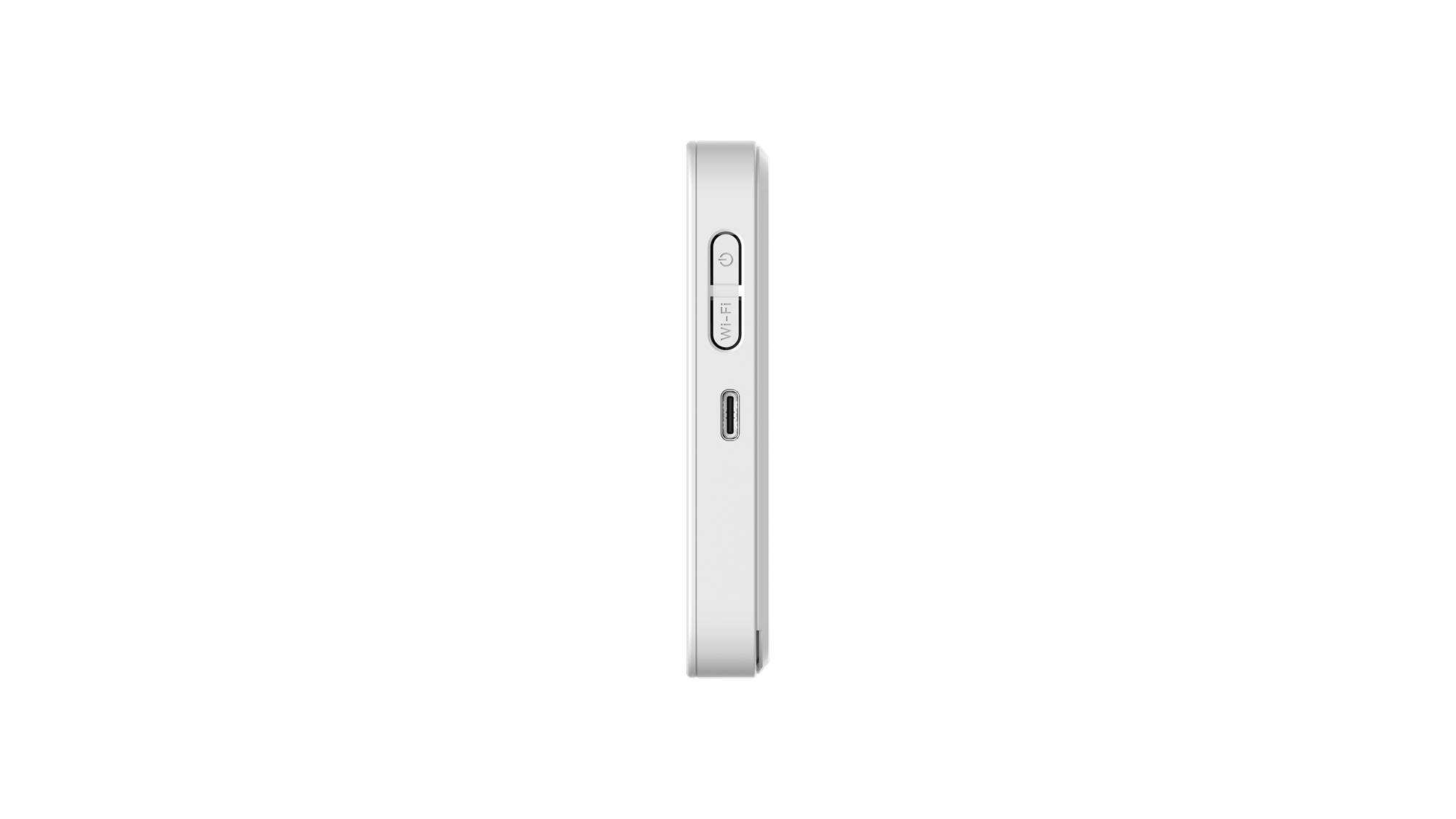

Button	Power on/off button, Reset button, Wi-Fi switch button
Interface	SIM Slot * 1 (4FF) TYPE_C power supply
SIM	1*SIM (4FF, Nano SIM) Support 1.8V & 3.0V
Antenna	1* Built-in FPC Wi-Fi antennas, 2* Built-in FPC LTE antennas

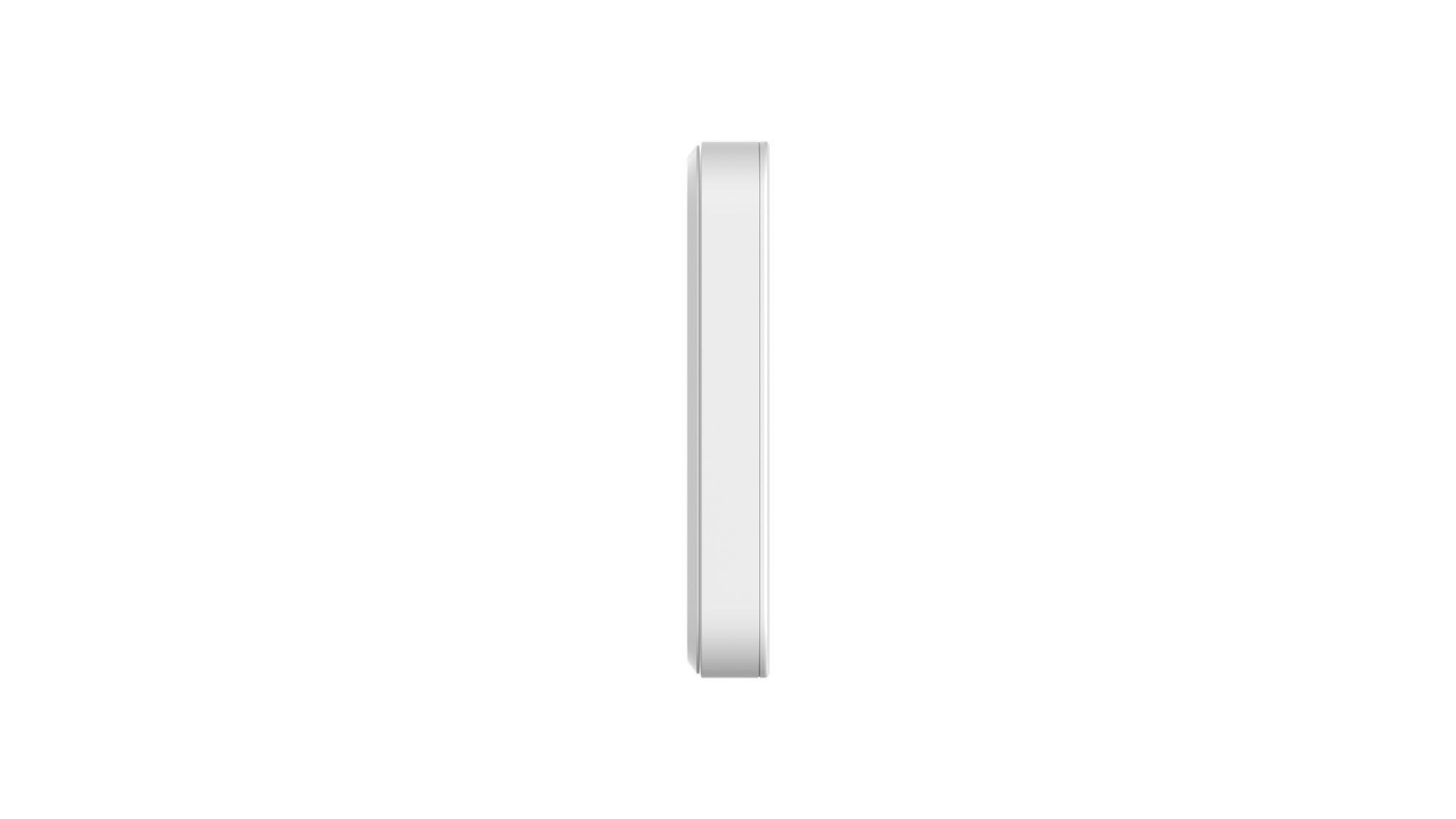

Dimensions	956514.7mm
Battery	Support 2100mAh large capacity lithium battery
Power Supply	TYPE-C USB 5V/2A、 3.7V battery
Support Bands	LTE-FDD：B1/3/5/7/8/20(28) LTE-TDD：B38/40/41 WCDMA: B1/5/8
LTE Category	DL CAT4, UL CAT4
LTE MIMO	LTE DL 2×2 MIMO：B1/B3/B5/B7/B8/B20/B38/B40/B41
TDD/FDD LTE Peak Throughput	DL: 150Mbps UL: 50Mbps
Wi-Fi Frequency	2.4 GHz/5.8GHz (DBSC)
Wi-Fi Mode	2.4G：802.11b/g/n/ax 5G：802.11a/n/ax
Wi-Fi Channel BW	20MHz, 40MHz
Wi-Fi MIMO	1T1R
Wi-Fi Concurrent Users	8
