ZLT P11

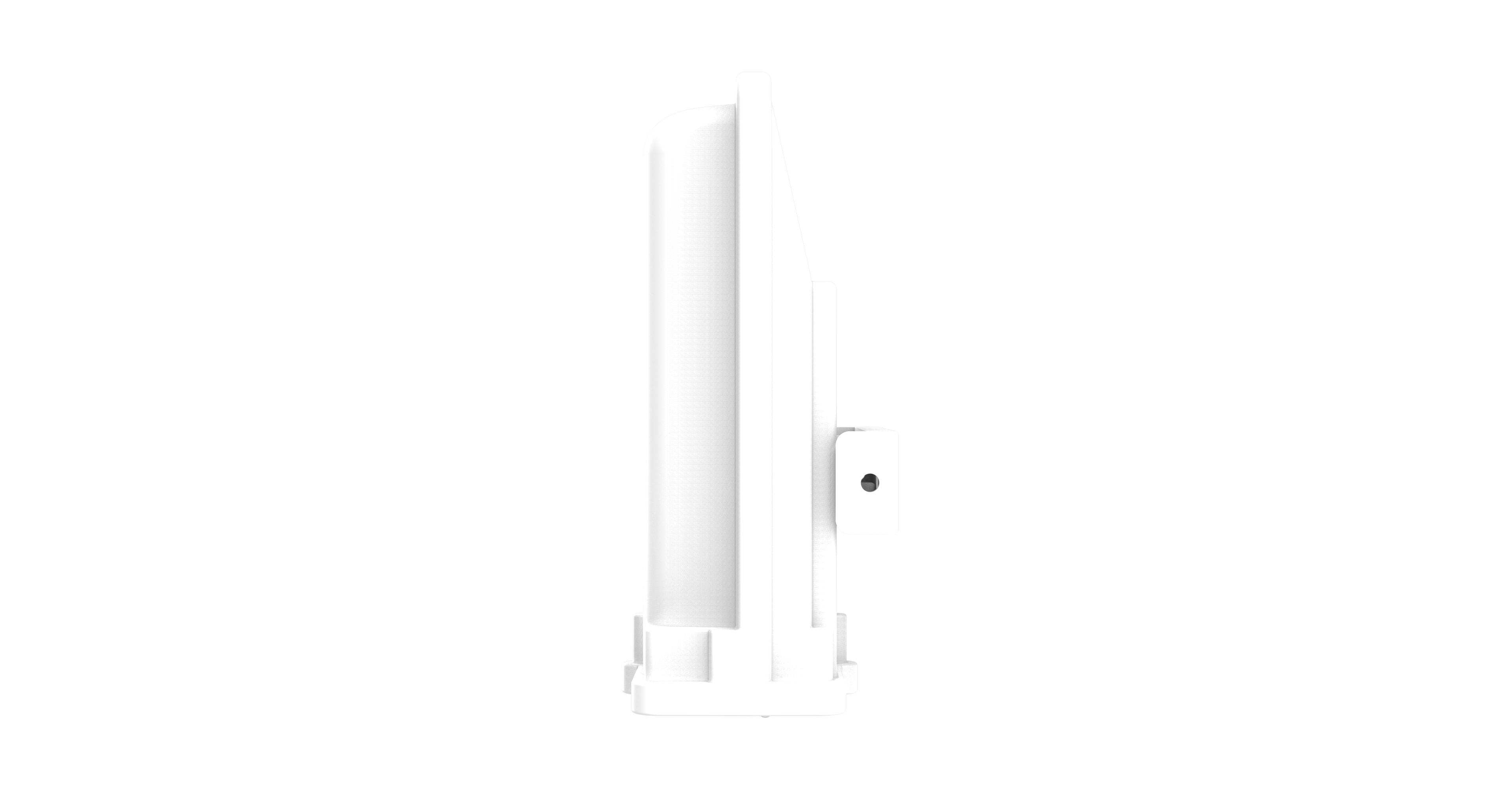

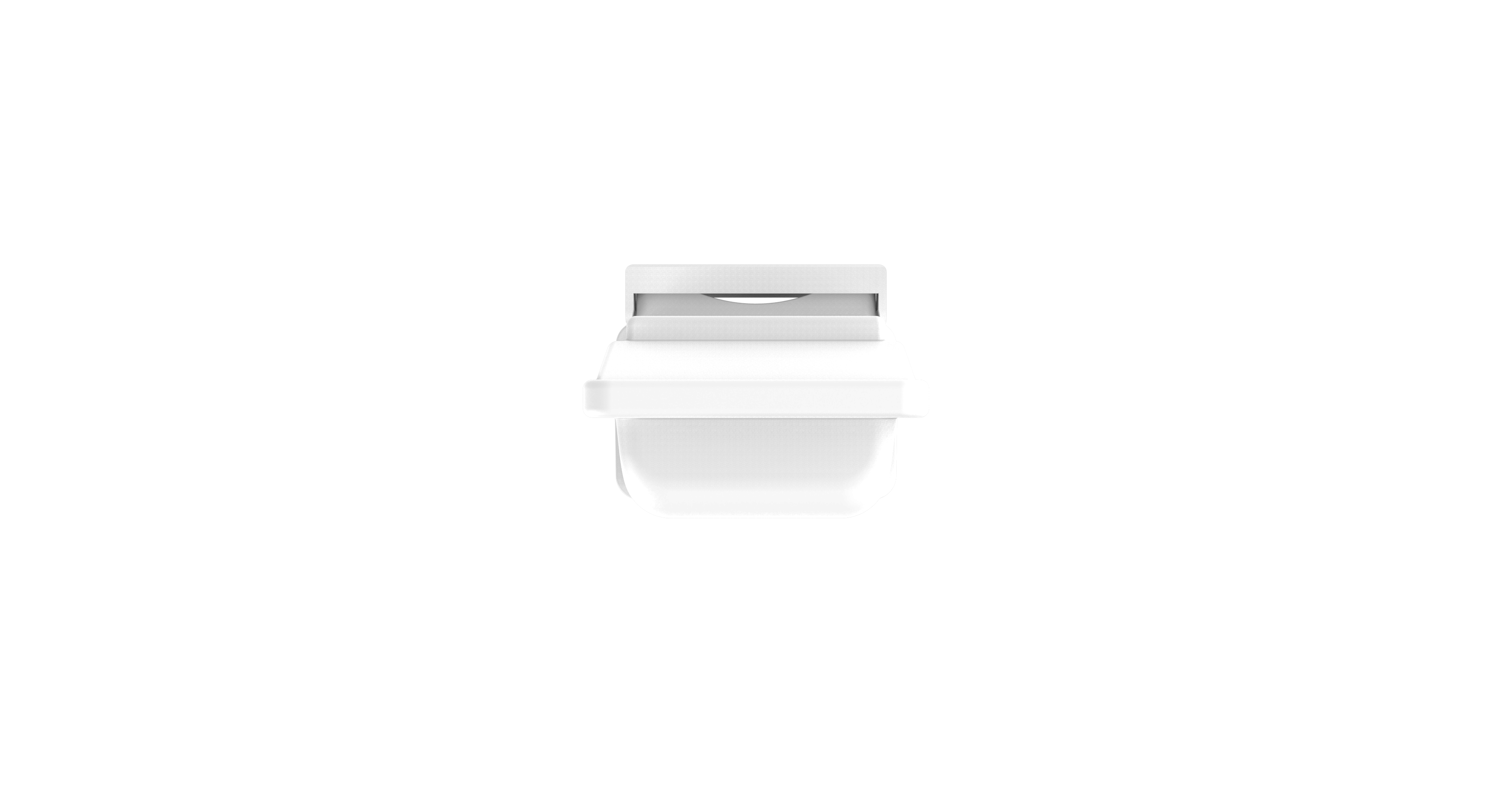

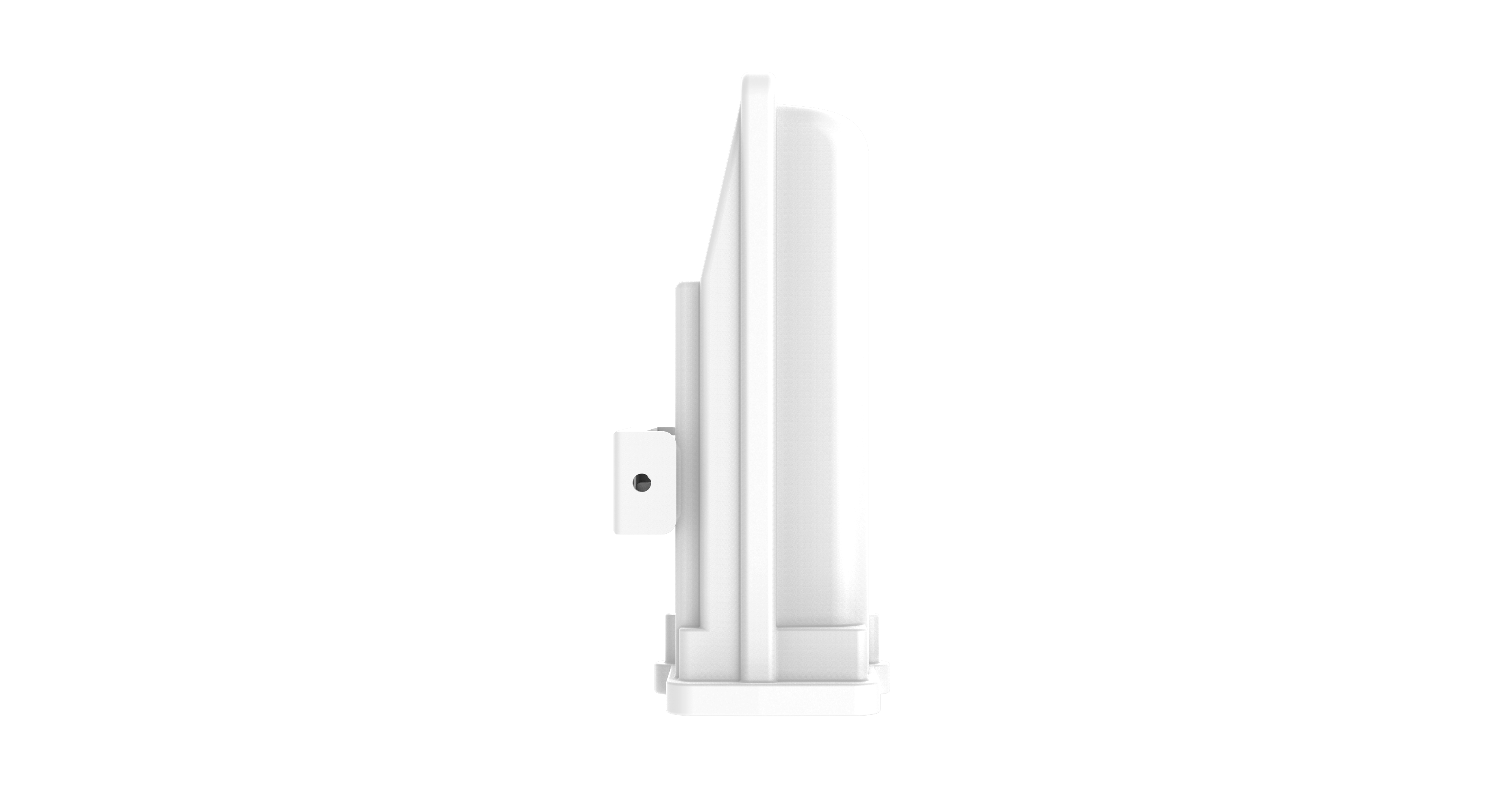

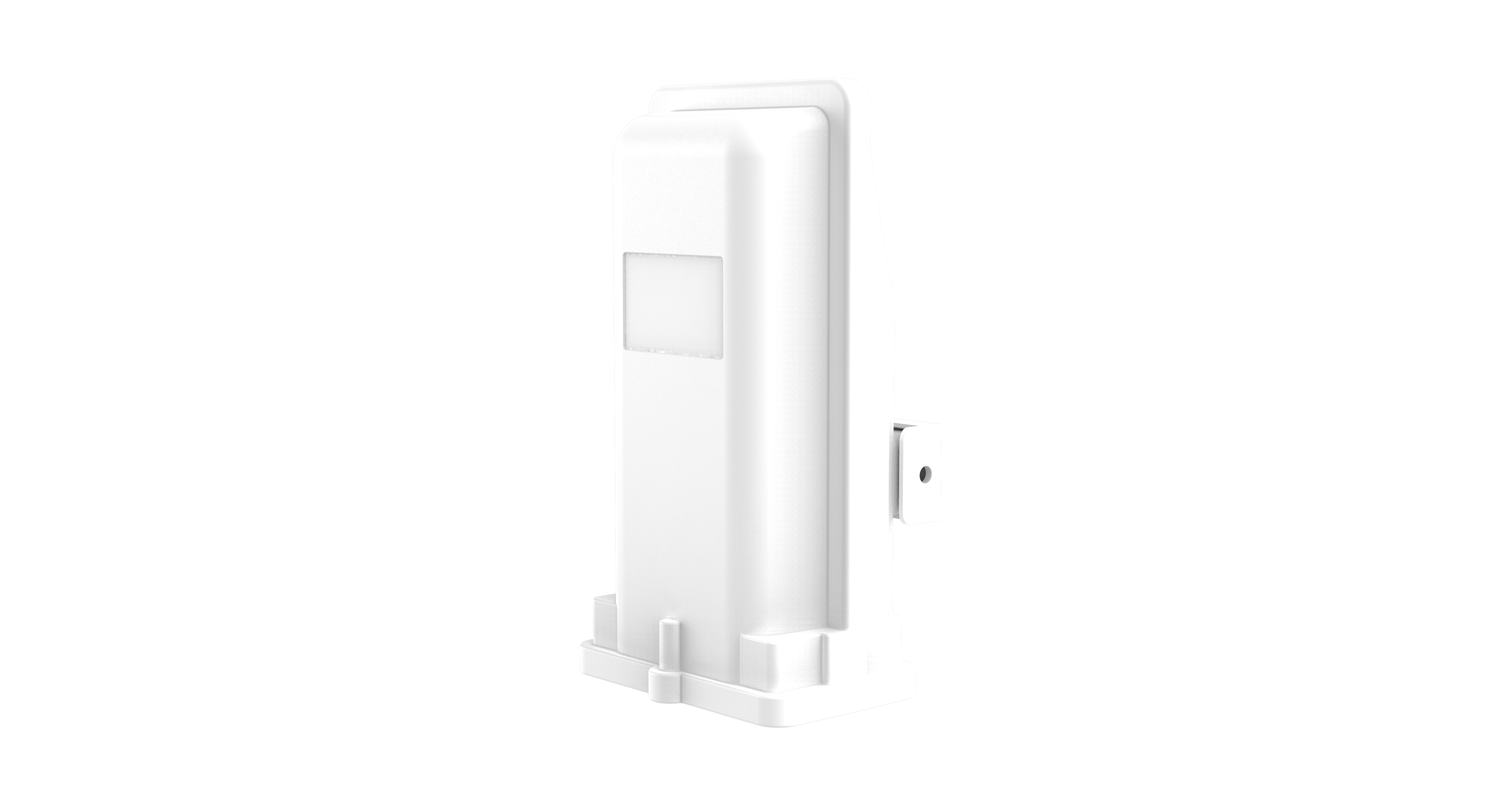

The ZLT P11 is a robust 4G LTE Category 4 wireless communication solution engineered for mission-critical data transmission, IoT monitoring, and network routing. Combining an Outdoor Unit (ODU) and Indoor Unit (IDU), it ensures reliable connectivity in harsh environments while supporting high-throughput applications.

Hardware & Performance
●Processing Power: ZX297520V3E/ZTE chipset with 128MB ROM/64MB RAM.

●Connectivity: LTE Cat.4 (150Mbps DL/50Mbps UL), dual built-in MIMO antennas, and optional 2.4GHz 802.11b/g/n Wi-Fi (2T2R, 32 concurrent users).

●Interfaces:

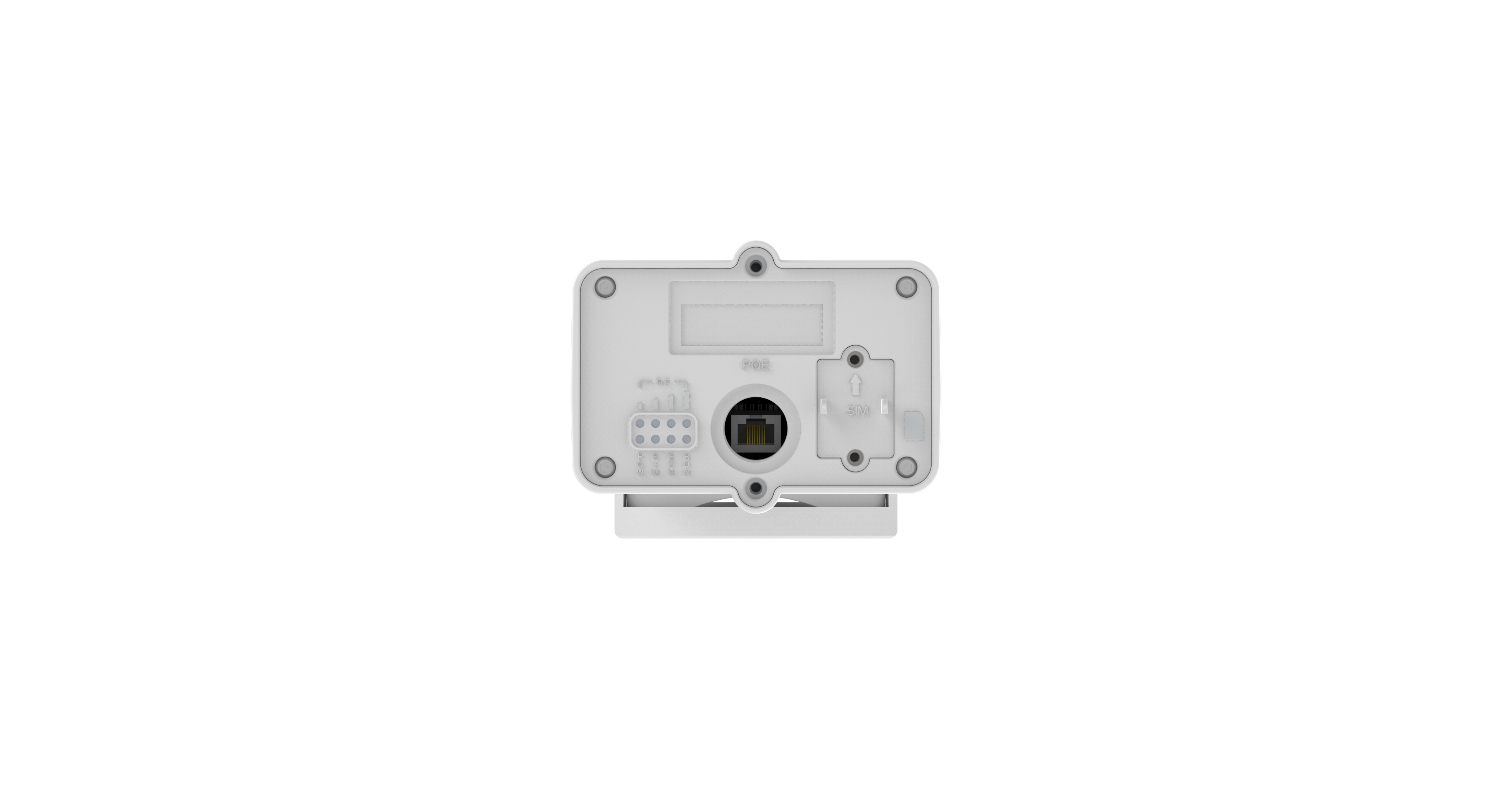

•ODU: SIM slot (2FF), PoE-enabled FE WAN.

•Durability: Operates at -20°C to 55°C with 95% humidity tolerance. Compact ODU (180×132×48mm) and IDU (125×93×27mm).

Software & Management
●Network Flexibility: Multi-APN support, IPv4/IPv6 dual-stack, VPN (PPTP/L2TP/GRE), and NAT/router modes.

●Security: Carrier SIM lock, PIN management, firewall, WPA2-PSK Wi-Fi encryption, MAC filtering.

●Remote Control: TR069 for configuration, diagnostics, and firmware updates. Syslog and web UI for real-time monitoring.

Key Applications
Ideal for industrial IoT, remote site monitoring, and failover connectivity, the ZLT P11 excels in scenarios demanding resilient, high-speed data transfer and centralized device management. Its directional/omnidirectional antennas (up to 6dBi gain) ensure optimal signal strength across global LTE bands (FDD/TDD), GSM, and HSPA+.
