ZLT X32U
5G MIFI
Introduction
The ZLT X32U is a versatile and cost-effective portable 5G MiFi designed to provide reliable, high-speed internet access anytime, anywhere within network coverage. Powered by the Unisoc V510 5G chipset, it comprehensively supports domestic LTE and NR frequency bands, enabling gigabit-class download speeds through 1T4R NR MIMO technology (theoretical peak: 2Gbps down / 500Mbps up). Its Wi-Fi 6 solution (AIC8800D80P) delivers AX600 peak throughput on either the 2.4GHz or 5.8GHz band (non-concurrent), ensuring fast and efficient connectivity for multiple users.
●Built for Performance & Durability:

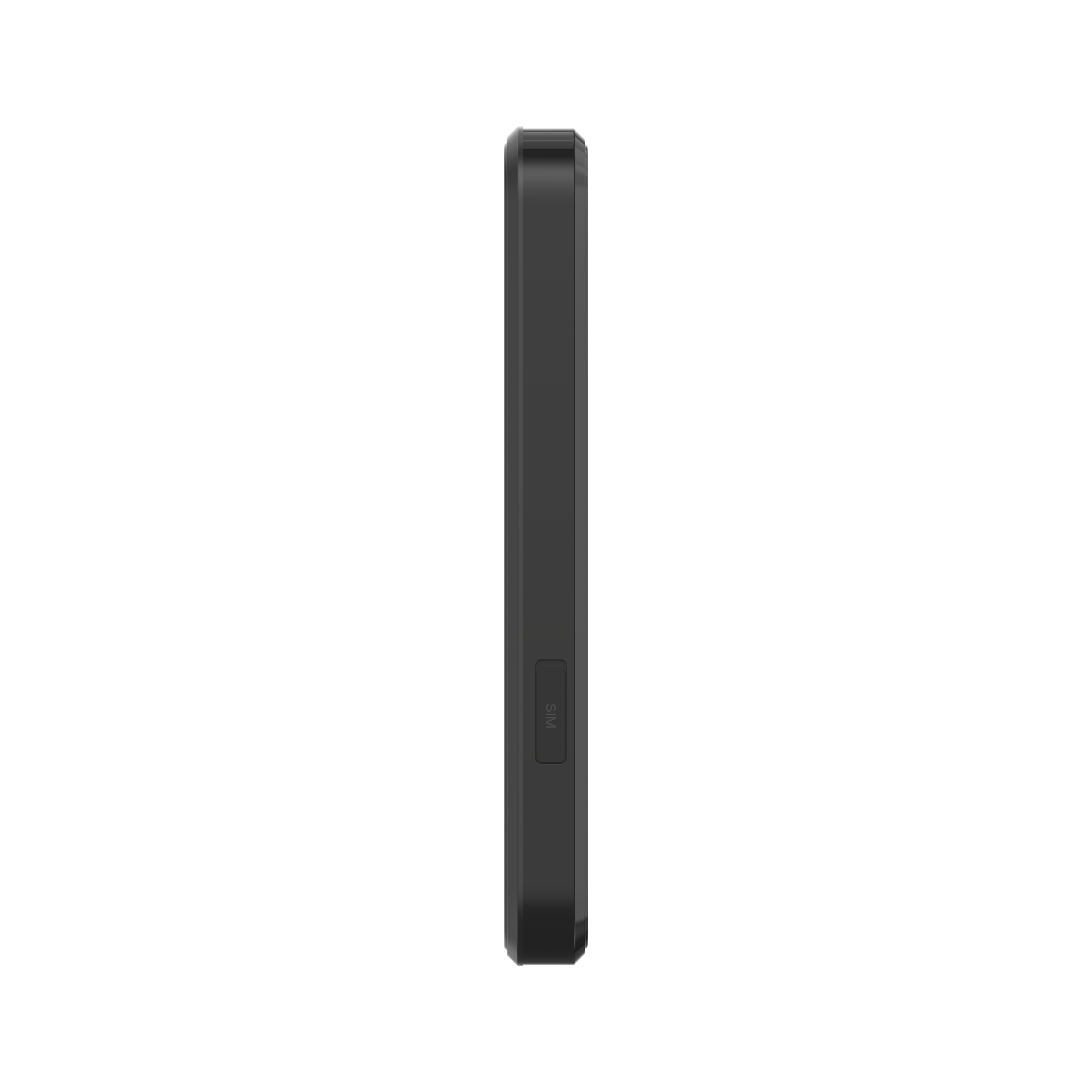

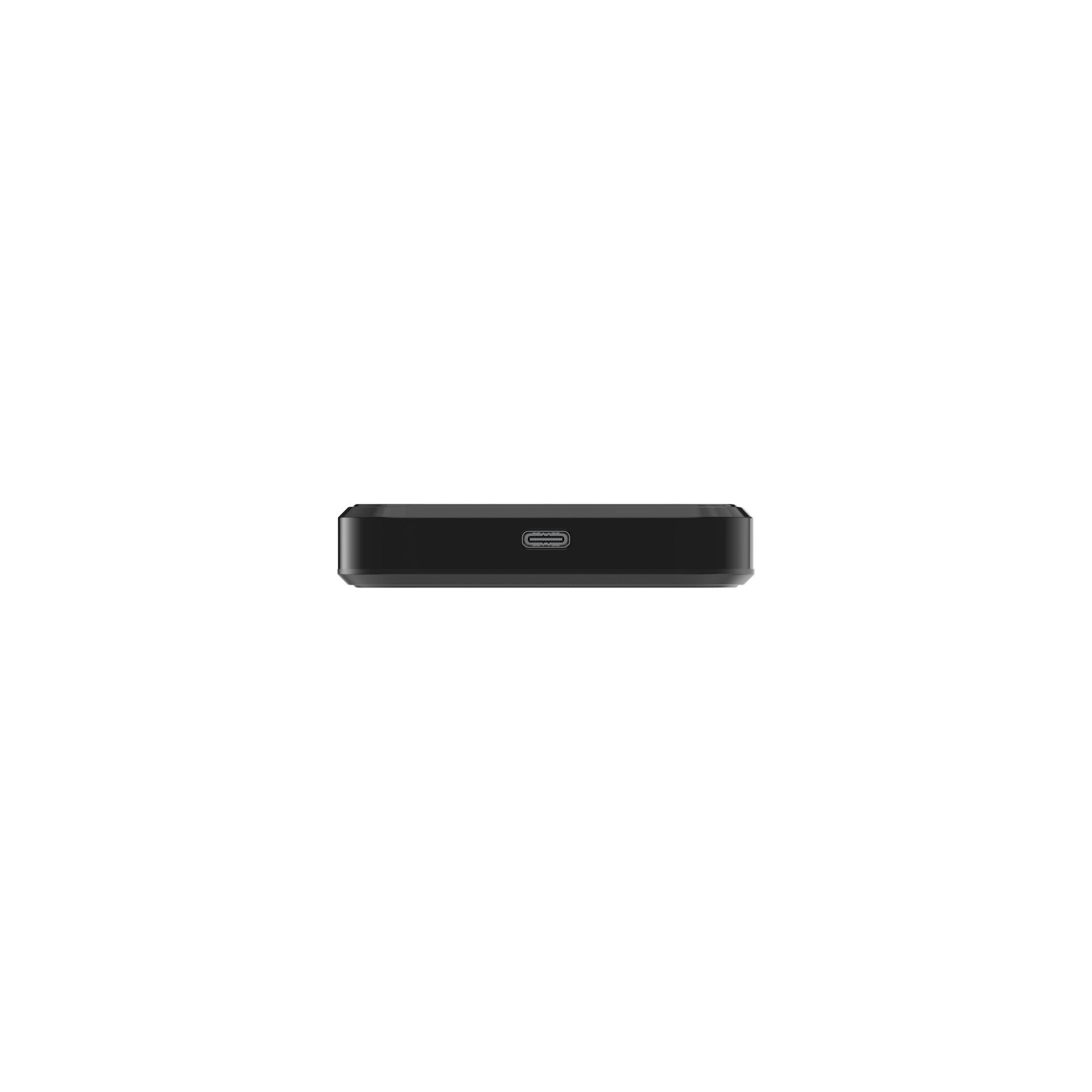

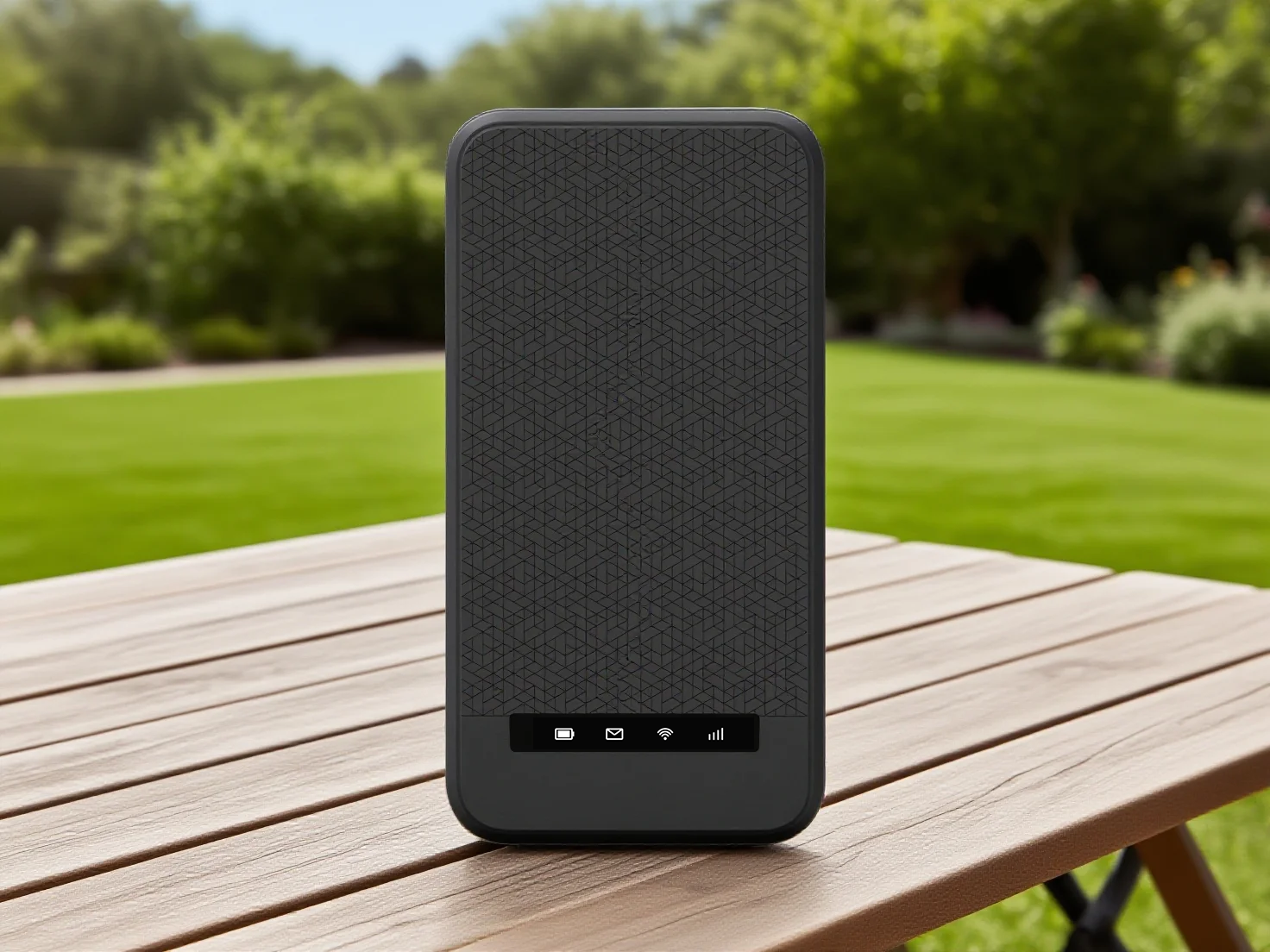

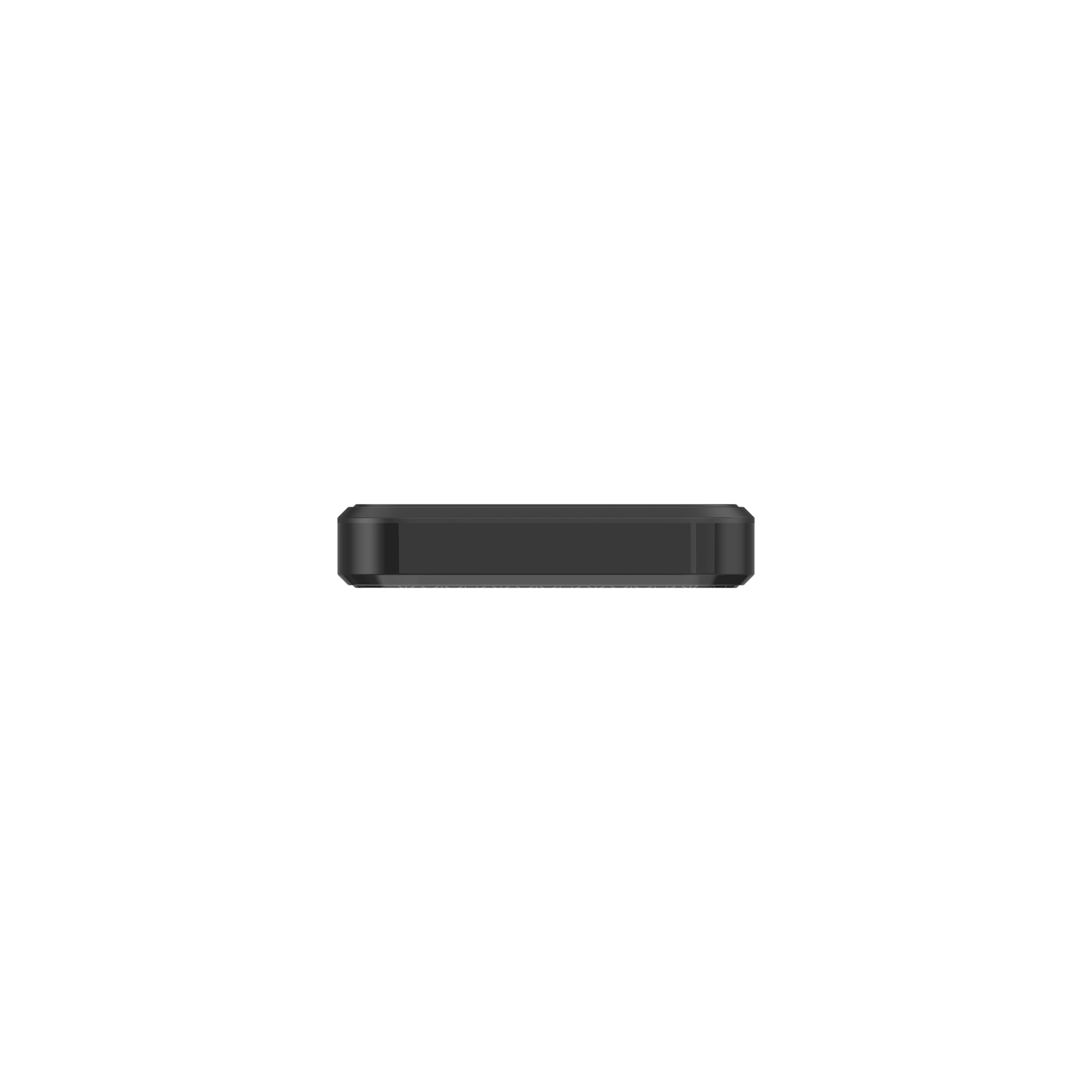

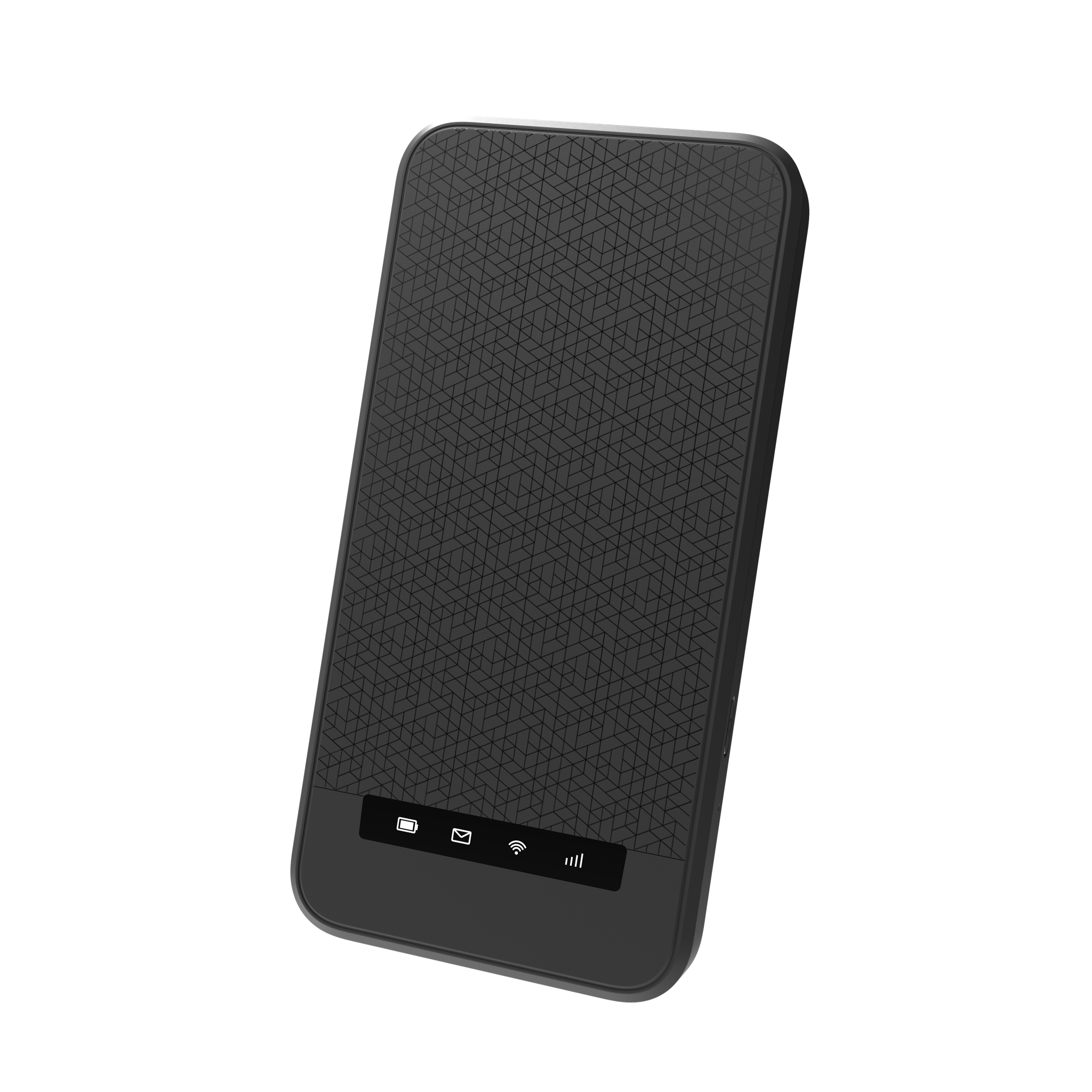

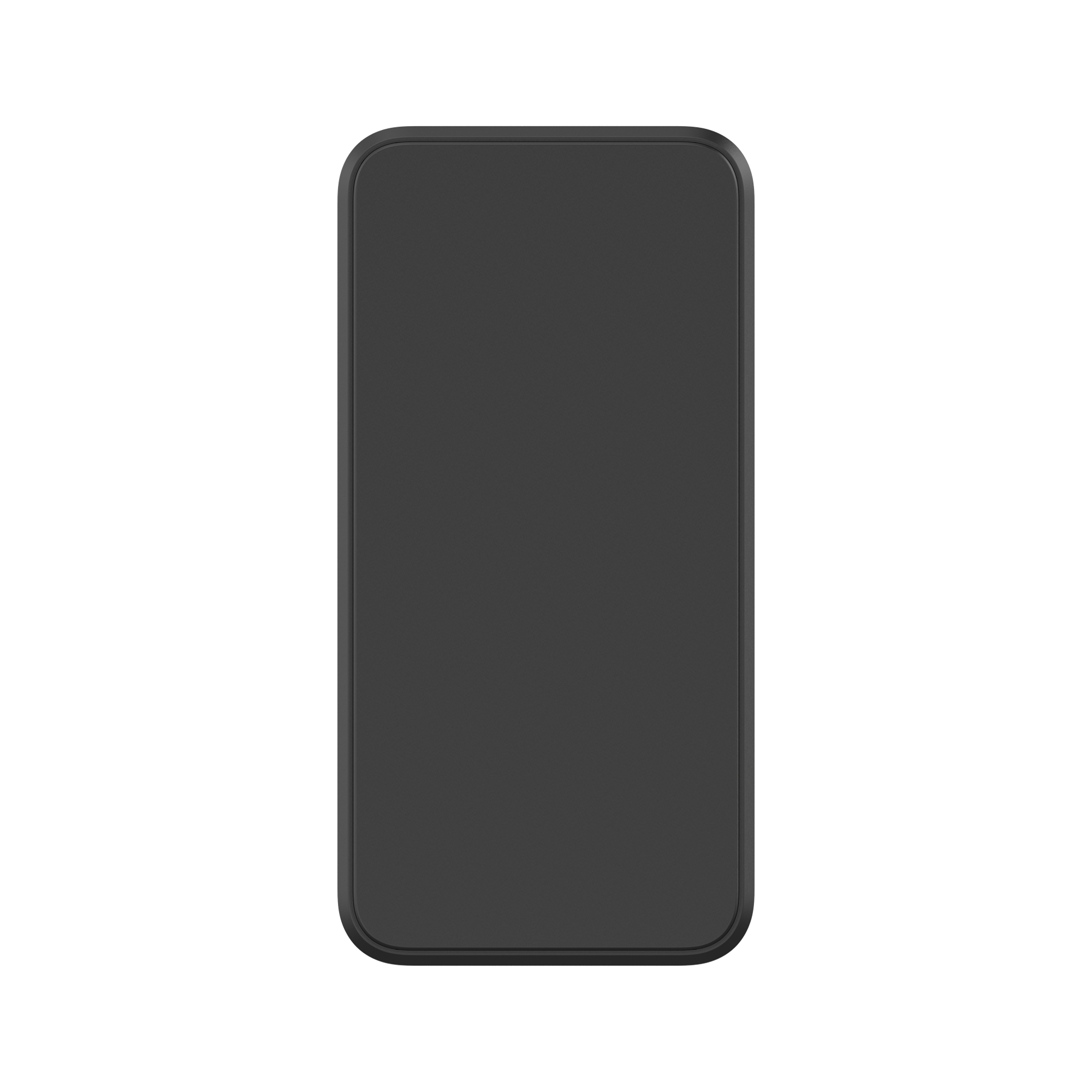

Engineered for portability and endurance, the X32U features a compact design (155x78x17mm) housing a substantial 9000mAh rechargeable battery providing over 12 hours of operation. It supports PD fast charging (recharge <7 hours) and includes four dedicated cellular antennas plus a combined Wi-Fi/Bluetooth antenna for optimal signal reception. Connectivity options include a Nano SIM slot, dual eSIM support (customized option), and a versatile Type-C port for charging, debugging, or tethering.
●Advanced Features for Flexibility & Security:
Beyond core connectivity, the X32U offers a suite of advanced networking features essential for diverse applications. It supports NAT/Router modes, DHCP, static routing, a configurable firewall, DMZ, VPN passthrough, and comprehensive IPv4/IPv6 support. Manageability is enhanced through a web GUI, TR069 remote management (HTTP/HTTPS), diagnostics tools, and configurable user roles (Admin/Normal). Optional features include NFC for one-touch pairing and Bluetooth for eSIM authorization.
●Ideal For:
Whether you're an individual needing mobile internet, a family sharing connectivity, a small shop providing customer Wi-Fi, or an industrial application requiring reliable remote access, the ZLT X32U provides a powerful, portable, and secure 5G Wi-Fi 6 solution. Note: Built-in eSIM and NFC are customized options not included in the default version.
Specifications
Feature | Description |
---|---|
Standard | WCDMA / LTE / NSA / SA |
Buttons | 1.Power ON/OFF Button 2.Reset Key |
SIM Card Interface | 1 * Nano(1.8V or 3V) 2 * eSIM |
USB | Support USB2.0, can be connected to a computer to become a virtual network port |
Antenna | 4* cellular directional antennas, 1*Wi-Fi/BT antenna |
Battery | Built-in 3.85V/9000mAh non-removable rechargeable lithium battery Support PD fast charging |
Dimensions | 155*78*17mm |
5G Support Bands | N1/3/7/8/28/40/41(38)/77/78(/79) |
MIMO | 1T4R |
Channel BW | 5M, 10M, 15M, 20M, 25M, 30M, 40M, 50M, 60M, 80M, 90M, 100M |
Peak Throughput | DL 2Gbps UL 500Mbps |
Wi-Fi Frequency | 2.4G / 5G (DBSC) |
Wi-Fi Mode | 2.4G:b/g/n/ax 5G:a/n/ac/ax |
Wi-Fi Speed | AX600 |
Wi-Fi Concurrent Users | 2.4G: 12 users or 5G: 12 users |
