ZLT M300
5G MIFI
Introduction
The ZLT M300 is a cutting-edge 5G MiFi solution engineered to deliver integrated, ultra-fast, and reliable wireless broadband for residential users, businesses, travelers, and outdoor live streamers. It combines advanced 5G connectivity with the latest Wi-Fi 7 technology and robust wired networking capabilities, providing a truly versatile and high-speed access point.
Powerful Hardware for Demanding Connectivity:
●Advanced Processing & 5G: Features the MediaTek T830 chipset for comprehensive global 5G (NSA/SA, Sub-6GHz) and 4G LTE Cat 19/18 support, including 4x NR Carrier Aggregation and 4x4 MIMO across key bands for peak theoretical speeds up to 7Gbps DL.
●Next-Gen Wi-Fi 7: Boasts dual-band Wi-Fi 7 (2.4GHz + 5GHz or 2.4GHz + 6GHz) with speeds up to 6.5Gbps, supporting 32+ concurrent users per band.
●High-Speed Wired Port: Includes a 2.5 Gigabit Ethernet port for ultra-fast wired connections.
●Long-Lasting Power: Equipped with an 8000mAh battery providing 10+ hours of continuous use and 72+ hours standby, plus 18W fast charging and reverse charging.

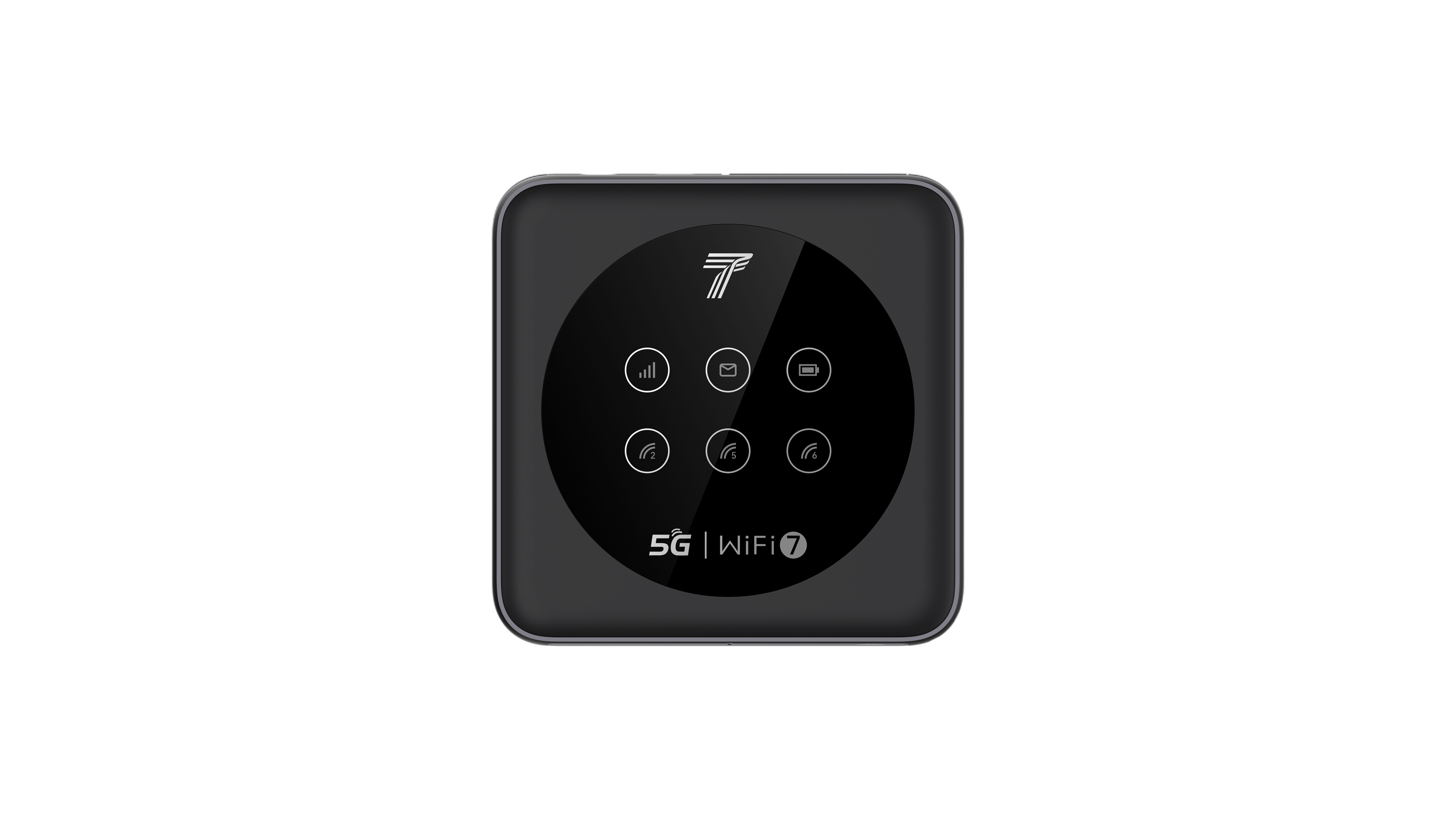

●User Convenience: Features an LCD screen, NFC for one-touch Wi-Fi connection, and a compact, portable design (120x120x20mm).
Robust Software & Enterprise Features:
●Flexible Management: Supports remote management (TR069, Telnet, HTTP/HTTPS), local/remote firmware updates, and configuration import/export.
●Enhanced Security: Offers comprehensive VPN support (PPTP, L2TP, IPSEC, GRE), multi-level user security settings, firewall features (DMZ, Port Mapping/Filtering, MAC/IP Filtering, ACL, Speed Limit), and APN/SIM management (including eSIM optional).
●Network Protocols: Fully supports IPv4/IPv6, TCP/IP, UDP, HTTP, DHCP (with MAC binding), NAT, DDNS, and UPnP.
Global Compatibility & Reliability: Designed with a universal 5G/4G band strategy covering all major global frequencies (N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N71/N75/N76/N77/N78, LTE B1/B3/B5/B7/B8/B20/B26/B28/B32/B38/B40/B41/B42/B43/B71), the ZLT M300 ensures seamless, high-speed internet access wherever you are. Its combination of powerful hardware, long battery life, and enterprise-grade software makes it the ideal solution for anyone needing reliable, high-performance mobile broadband.
Specifications
Feature | Description |
---|---|
Standard | NR:NSA/SA, Sub-6 GHz LTE: Cat 19(DL) / Cat 18(UL) |
Buttons | 1.Power ON/OFF Button 2.Reset Key |

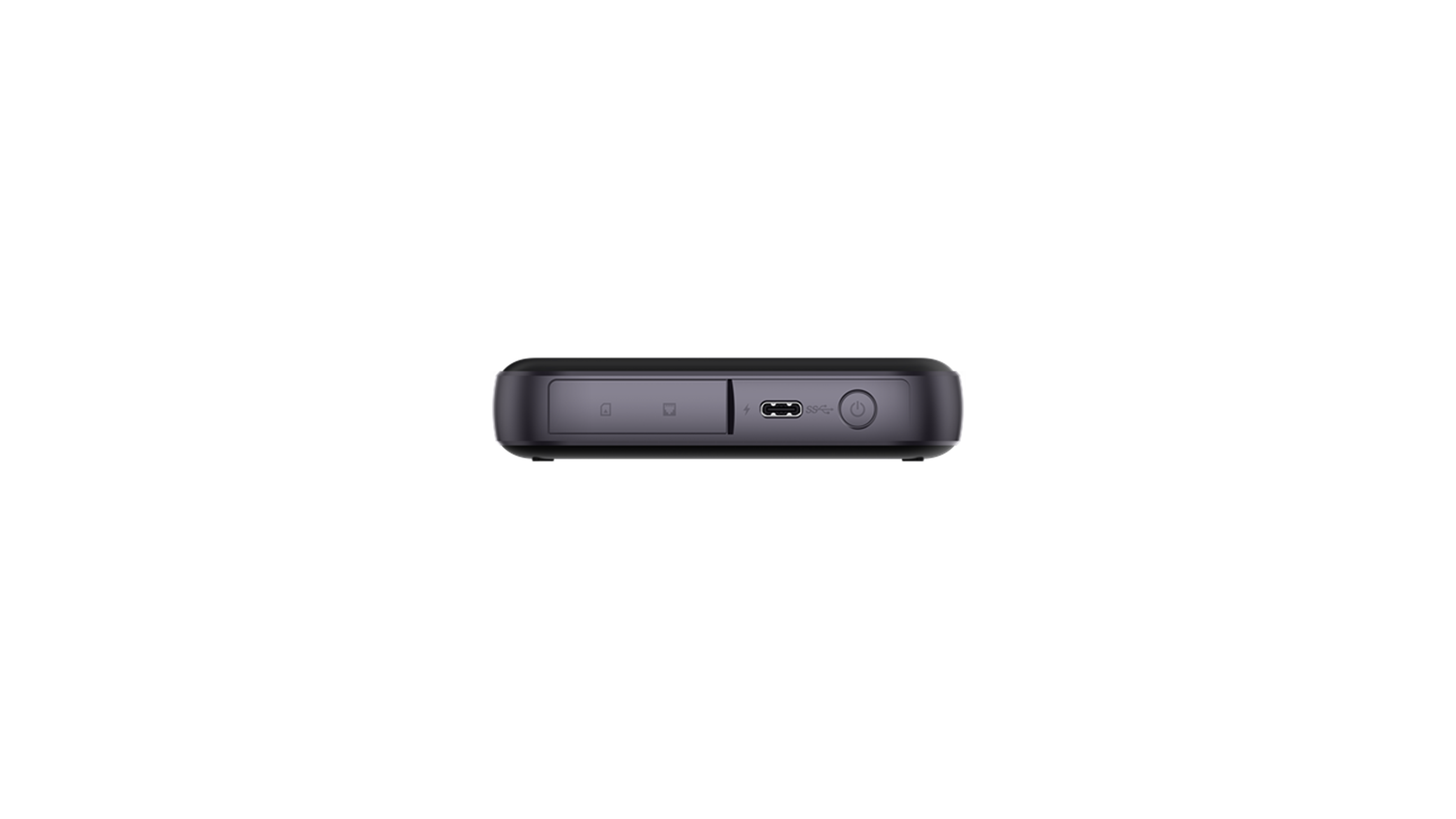

Interfaces | 1*TYPE-C 1* SIM Slot |
SIM | 1.SIM(4FF) Support 1.8V& 3.0V 2.ESIM(Optional) |
Battery | Rechargeable lithium battery Capacity: 3.7V/8000mAh |
Power Supply | Support PD3.0/BC1.2charger with fast charging protocol |
Dimensions | 120*120*20mm |
5G Support Bands | N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N71/N75/N76/N77/N78 |
MIMO | MIMO 4*4 |
Channel BW | 5M, 10M, 15M, 20M, 25M, 30M, 40M, 50M, 60M, 80M, 90M, 100M |
Peak Throughput | 5G NR DL 7.01Gbps UL 2.5Gbps |
NR Antenna | 8 Built in 5G<E antennas |
Wi-Fi Frequency | 2.4GHz, 5GHz or 6GHz(Dual band:2G+5G or 2G+6G) |
Wi-Fi Mode | 2.4G: 802.11b/g/n/ax/be; 5G: 802.11a/n/ac/ax/be 6G: 802.11ax/be |
Wi-Fi Channel Bandwidth | 20MHz, 40MHz, 80MHz, 160MHz, 320MHz |
Wi-Fi MIMO | MIMO 2*2 (2T2R) |
Wi-Fi Concurrent Users | 2.4G: 32 users 5G: 32 users 6G: 32 users |
