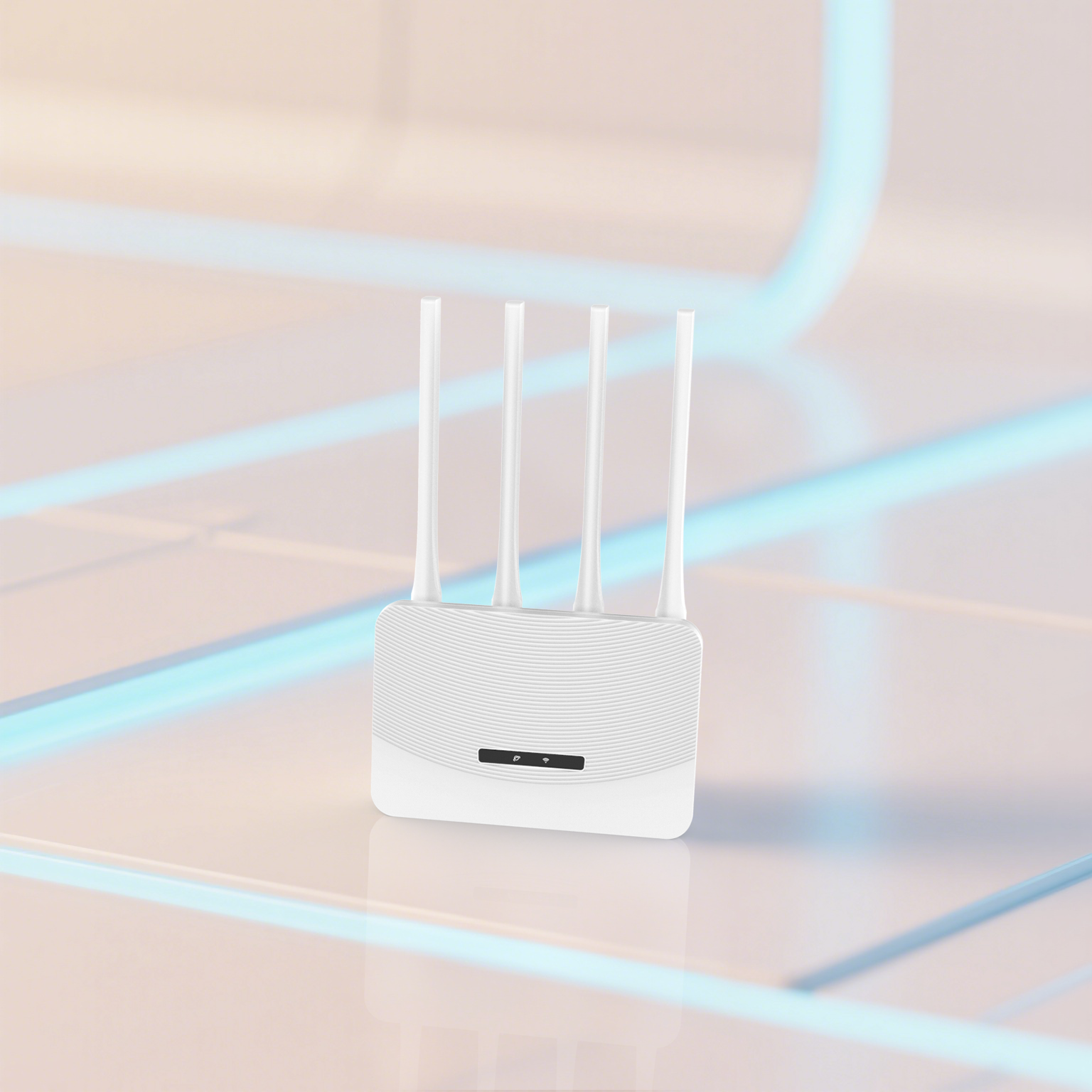

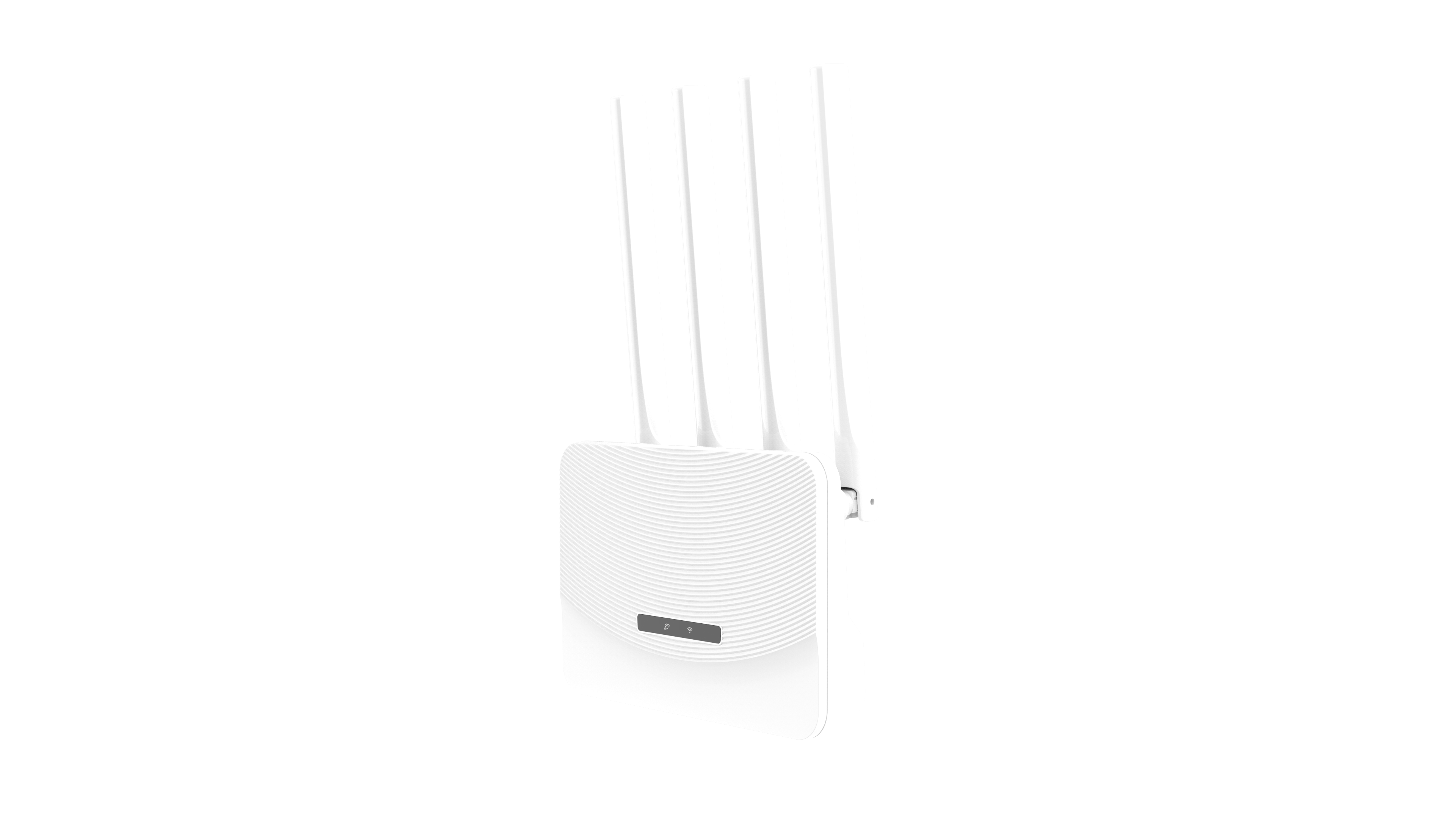

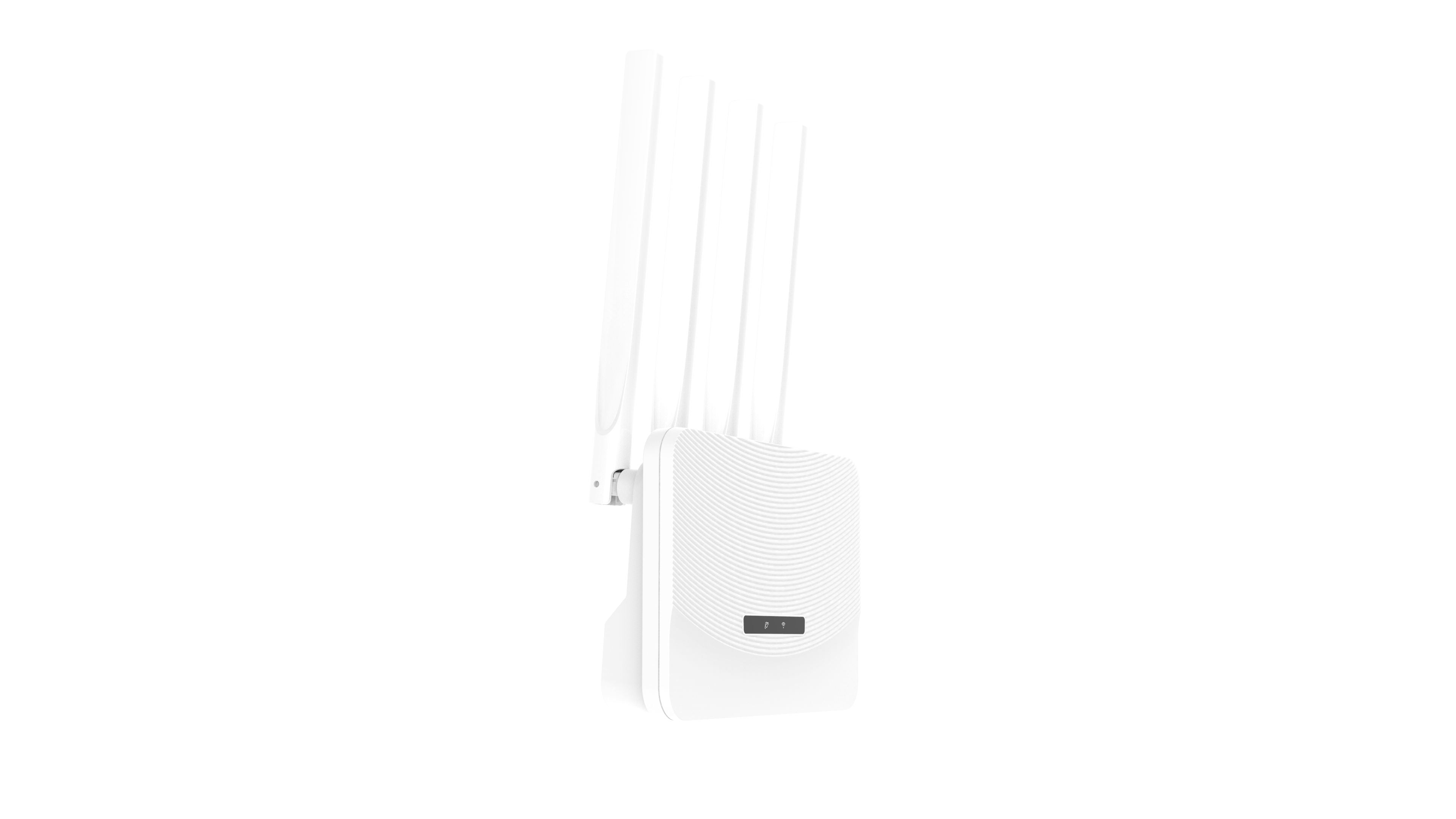

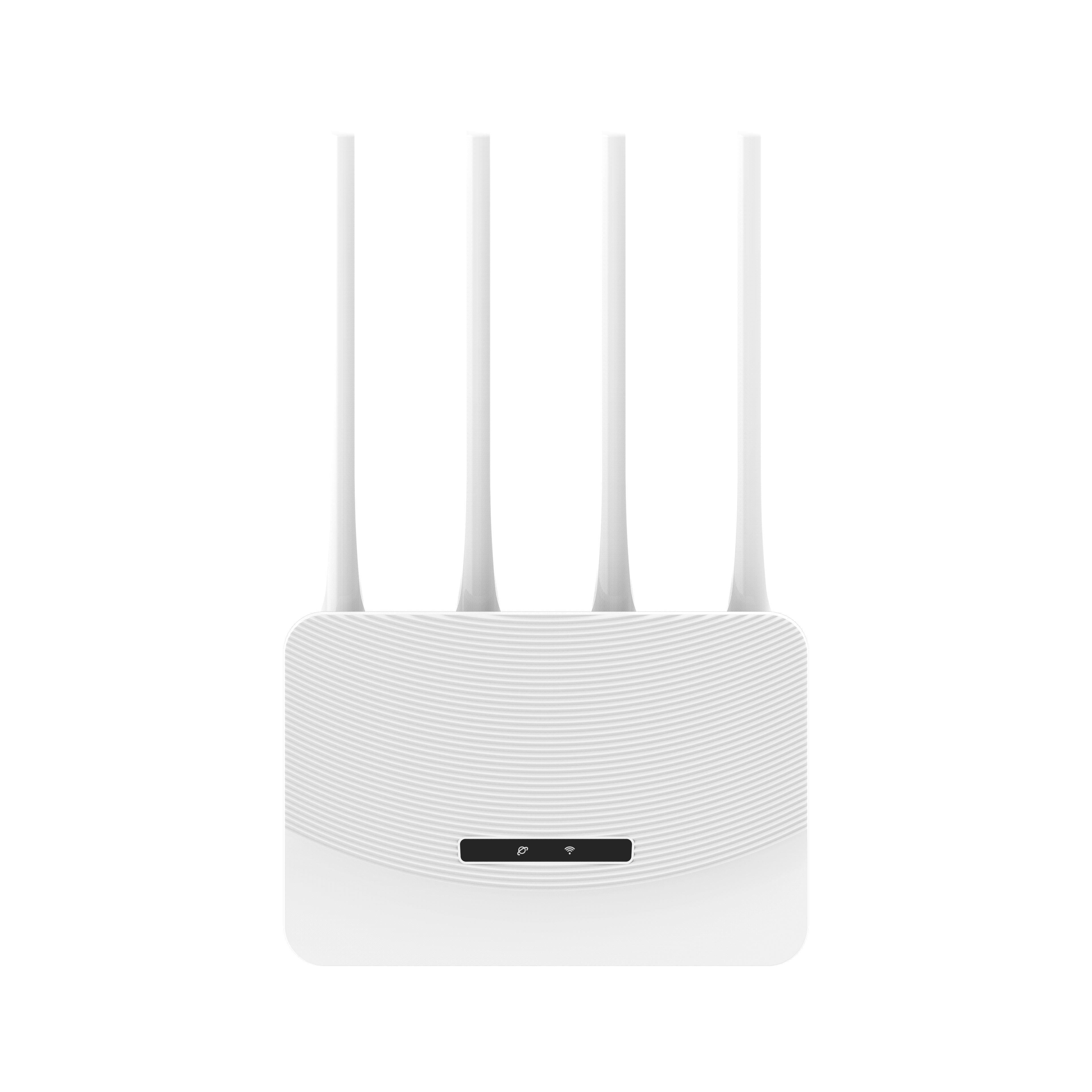

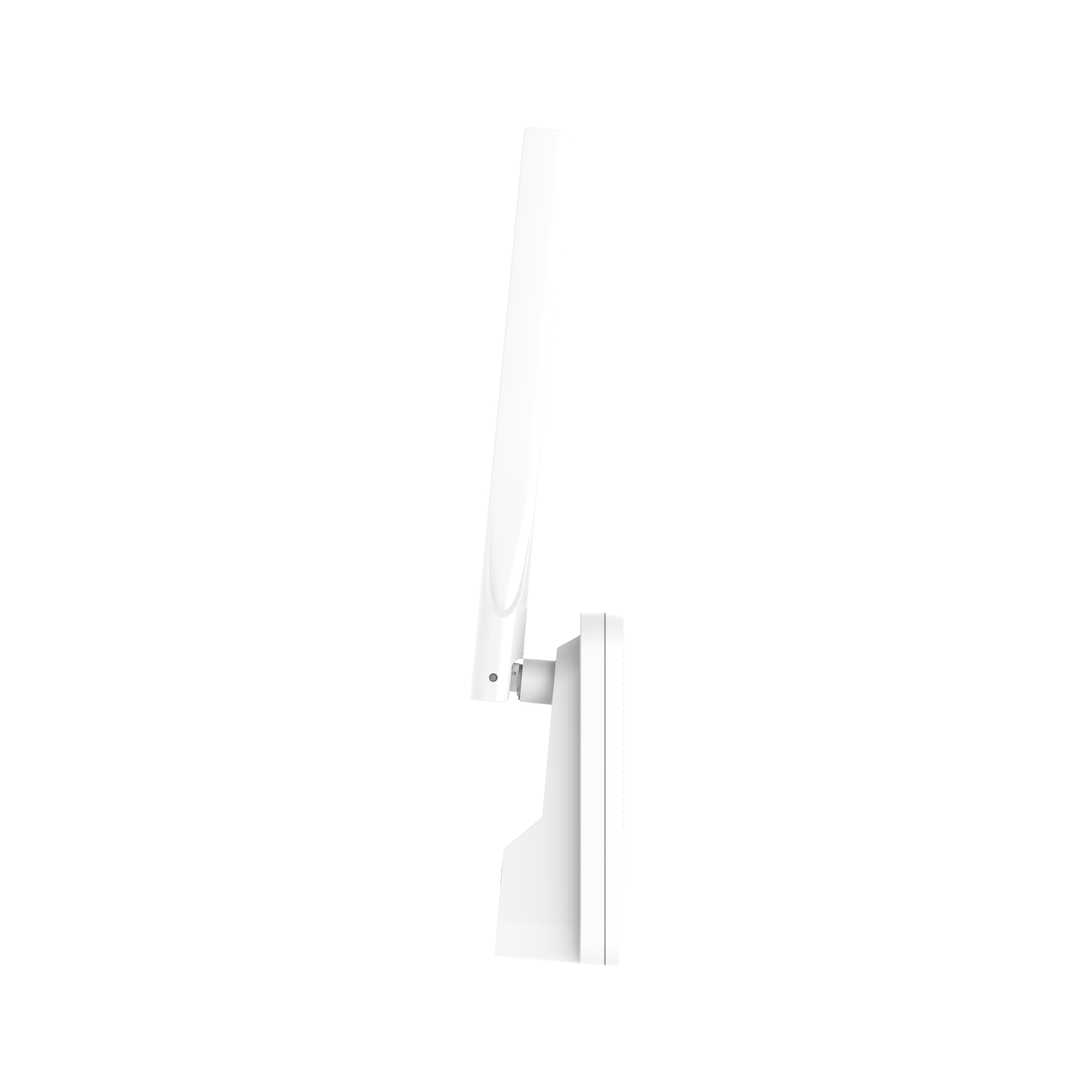

ZLT T10 PLUS

The ZLT T10 PLUS is a powerful wireless network data converter designed to transform 3G/4G cellular signals into reliable, high-speed Wi-Fi and Ethernet connectivity. Engineered for demanding applications, it provides seamless internet access for industrial settings, business travelers, and home users where traditional broadband is unavailable or insufficient.

Performance & Core Features:

●Fast Cellular Backhaul: Leverages LTE CAT4 technology for theoretical download speeds up to 150Mbps and uploads up to 50Mbps, supporting major global FDD and TDD bands.

●Advanced Wi-Fi: Features dual-stream 2.4GHz Wi-Fi supporting the latest 802.11ax (Wi-Fi 6) standard alongside b/g/n, delivering peak throughput up to 229Mbps (DL) and supporting up to 10 concurrent users.

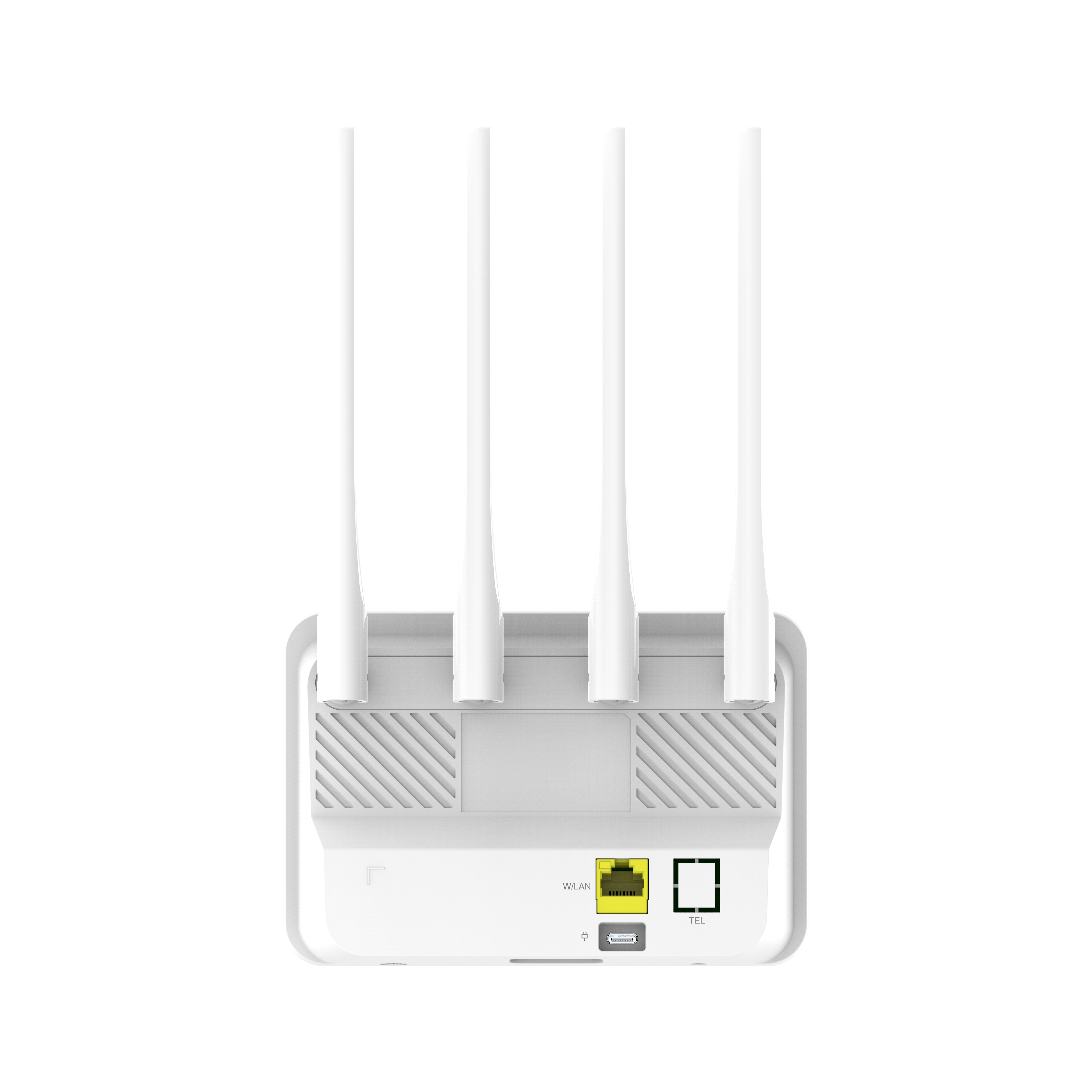

●Versatile Connectivity: Equipped with a 100Mbps Ethernet port, RNDIS USB network support, and a Type-C power interface for flexibility.

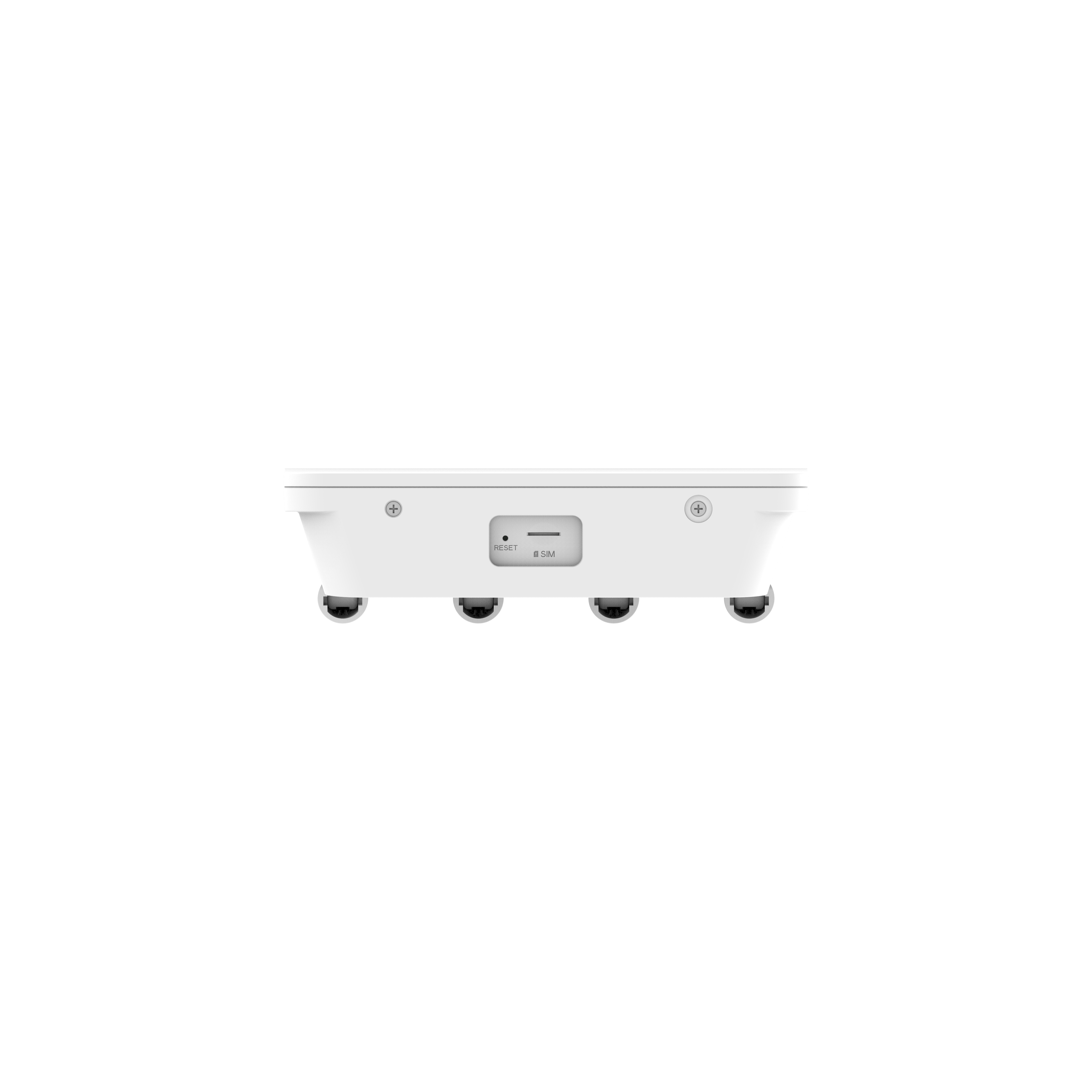

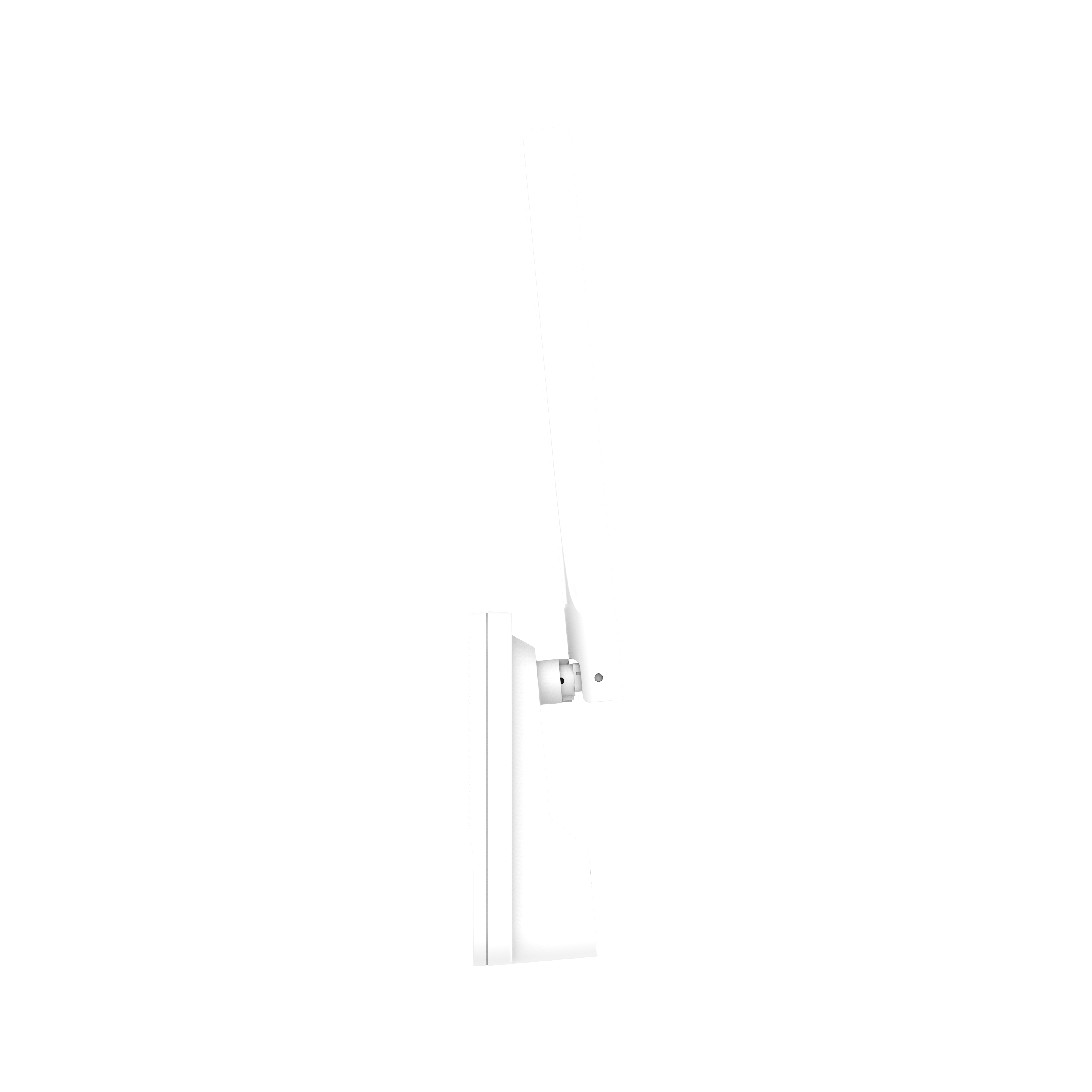

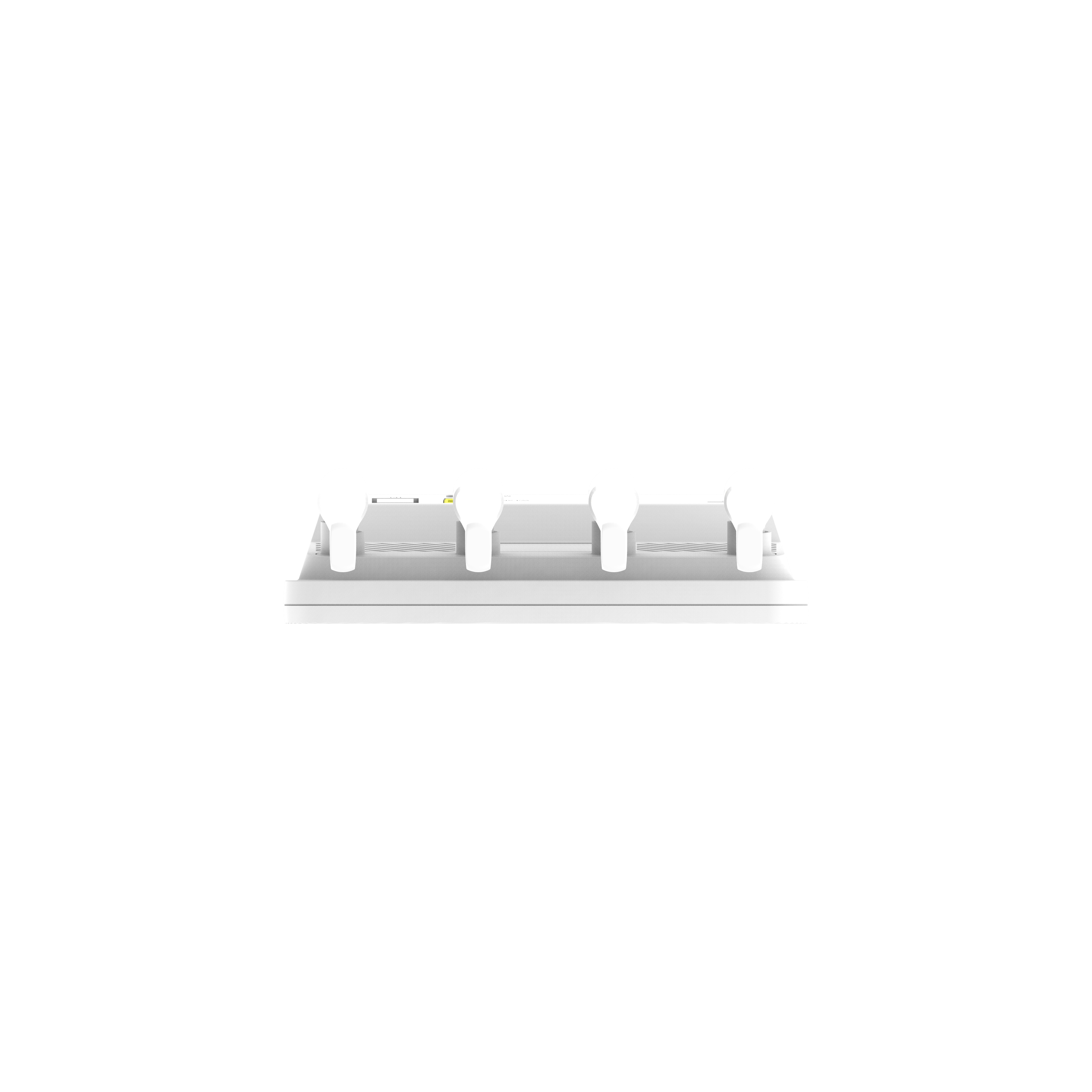

●Robust Design: Includes 4 external antenna ports (2 for LTE, 1 for Wi-Fi, plus 1 built-out Wi-Fi) for optimal signal strength, supports Nano-SIM or optional eSIM, and offers a compact, rugged form factor.

Advanced Management & Functionality:

●Web-Based Configuration: Easily manage settings via the built-in web server (HTTP/HTTPS).

●Comprehensive Protocols: Supports IPv4/IPv6, TCP/IP, UDP, HTTP, TR069 for remote platform management, SMS, multi-APN, PIN/PUK management, and traffic statistics.

●Security & Control: Features a configurable firewall (IP/MAC/Port/URL filtering, DMZ, UPnP, Port Mapping), DHCP server, NAT/Routing modes, static routing, and dual-account management (admin/user).

●Diagnostics & Maintenance: Includes system logging, Ping/Traceroute/TCPDUMP diagnostics, and multiple firmware upgrade paths (Web, TR069).

Reliable Operation: With low power consumption (<5W), wide operating temperature range (0°C to 45°C), and industrial-grade features, the ZLT T10 PLUS is built for continuous, dependable performance in diverse environments.
