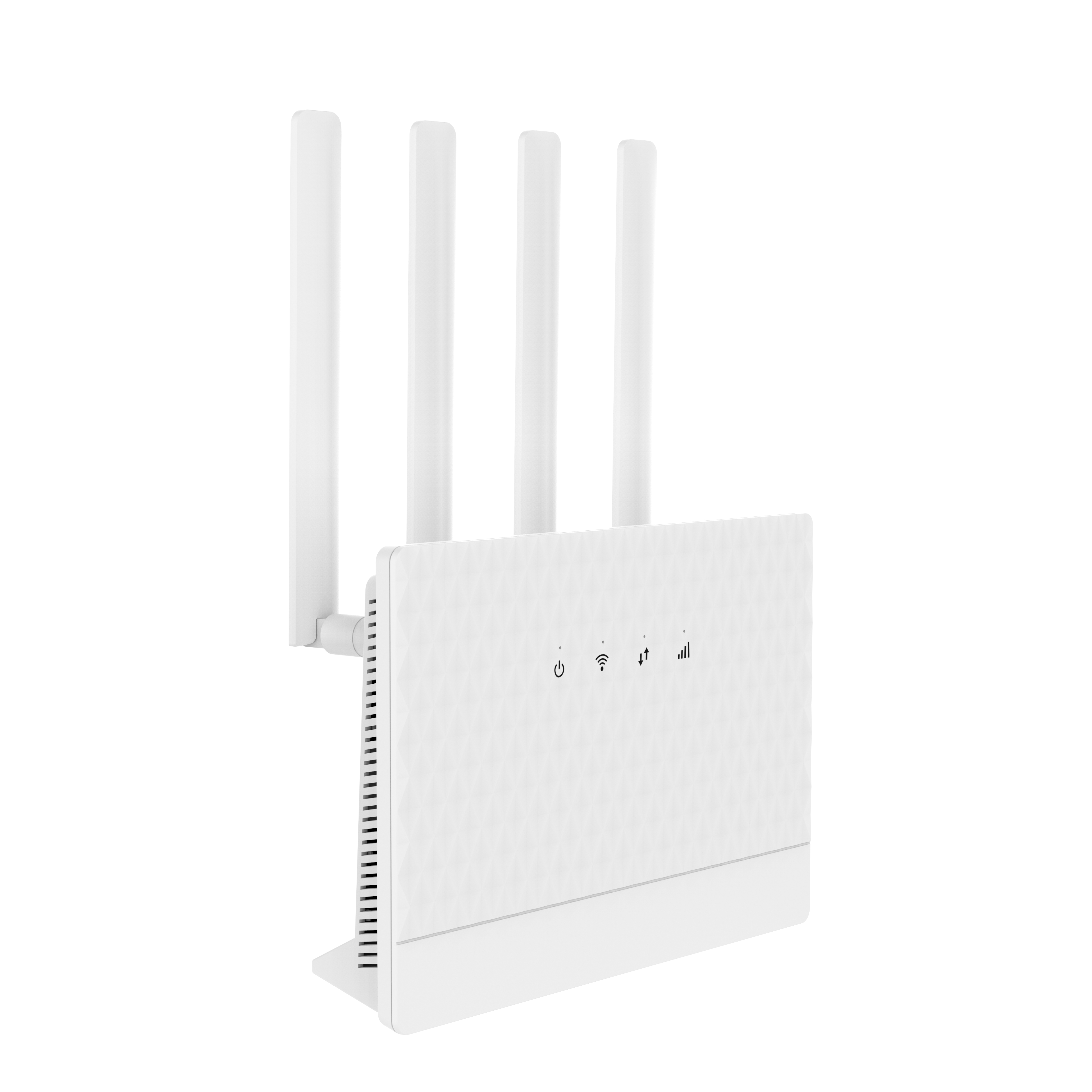

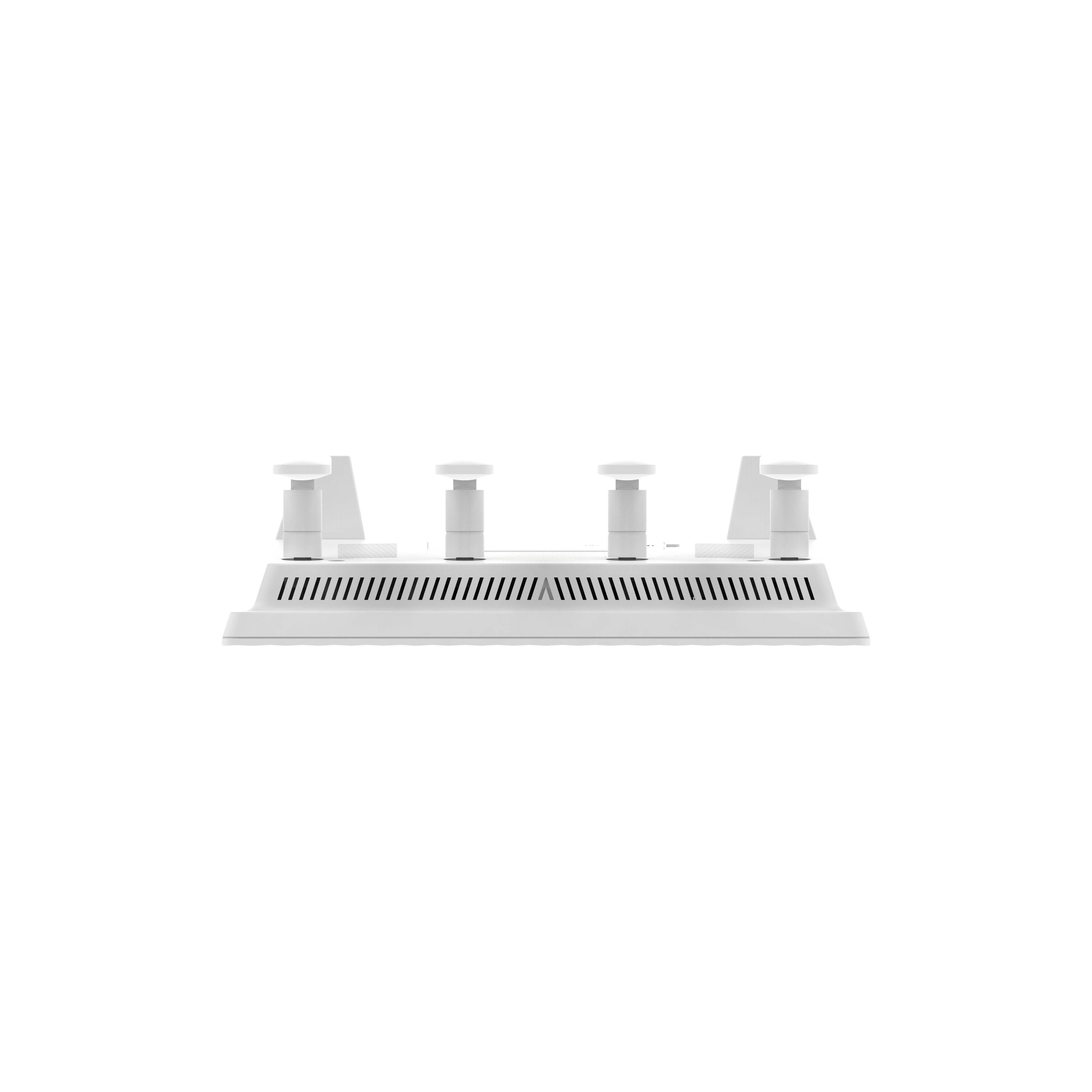

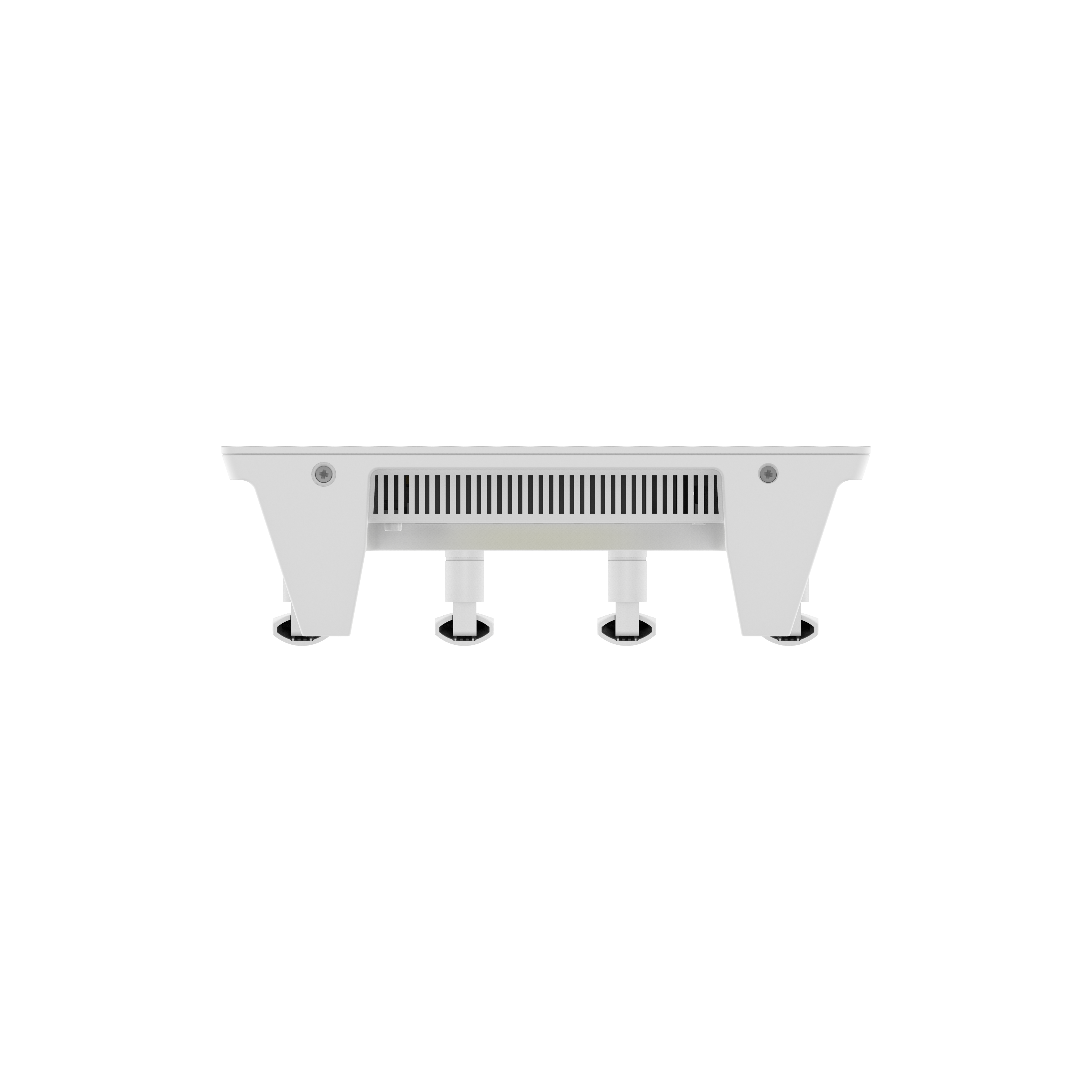

ZLT S90 Ultra

The ZLT S90 ULTRA is a cutting-edge, integrated indoor solution designed to provide seamless high-speed data connectivity and superior Wi-Fi access. It meets the demanding needs of users requiring reliable broadband internet and robust wireless coverage through a single, powerful device.

Unmatched Connectivity Performance

●LTE Advanced Pro (Cat 12): Experience blazing-fast speeds with download rates up to 600Mbps and uploads up to 150Mbps. Supports 4x4 MIMO DL, 3CC DL CA, and 2CC UL CA across extensive global FDD/TDD LTE and WCDMA bands (including B1, B3, B5, B7, B8, B20, B28, B32, B38, B40, B41, B42, B43, B48).

●Wi-Fi 6 (AX3000) Dual-Band: Enjoy next-generation wireless performance with concurrent 2.4GHz (574Mbps, 2x2 MIMO) and 5GHz (2402Mbps, 3x3 MIMO) bands, supporting 802.11ax/ac/n/g/b. Features strong security (WPA3-PSK) and manages up to 64 concurrent users.

Robust Hardware & Networking

●Gigabit Ethernet: Equipped with four 10/100/1000 Mbps ports (one configurable as WAN) for flexible wired networking.

●Powerful Processing: Built on Qualcomm X12 LTE and EN7562 Wi-Fi platforms with ample memory (2Gb LPDDR2 + 4Gb DDR3L) and storage (4Gb + 1Gb SLC NAND Flash).

●Flexible SIM Options: Nano-SIM (4FF) slot supporting 1.8V/3.0V, with eSIM circuitry reserved for future use.

●Optimized Antennas: Features 4 external LTE antennas and 5 internal Wi-Fi antennas for optimal signal coverage.

Comprehensive Enterprise-Grade Features

●Advanced Routing & Security: Supports multiple WAN modes (Static IP, DHCP), static routing, NAT, DMZ, IPv6/IPv4 dual-stack, and a robust firewall (IP/MAC/URL filtering, port mapping, speed limiting).

●VPN Support: Functions as both VPN Client and Server (PPTP, L2TP, IPSec, GRE).

●Remote & Centralized Management: Enables effortless device management via TR069 (HTTP/HTTPS), Telnet, HTTP/HTTPS web UI, supporting remote configuration, monitoring, diagnostics (Ping, Traceroute), and firmware upgrades.

●User Management: Features multi-level security and dual-account (admin/user) access control.

Designed for Deployment

●Compact Form Factor: Dimensions 220 x 64.5 x 150mm, weight 836g.

●Indoor Operation: Operating temperature 0°C to 45°C.

●Efficient Power: 12V/2A DC input with typical power consumption under 24W.

●Clear Status Indicators: LED indicators for Power, Wi-Fi, Data, and Signal Strength. Physical keys include Power On/Off, Wi-Fi Toggle, Link Key, and Reset.

The ZLT S90 ULTRA delivers a future-proof, feature-rich solution for scenarios demanding high-performance integrated LTE data and Wi-Fi 6 access with enterprise-level manageability and security.
