ZLT X17U

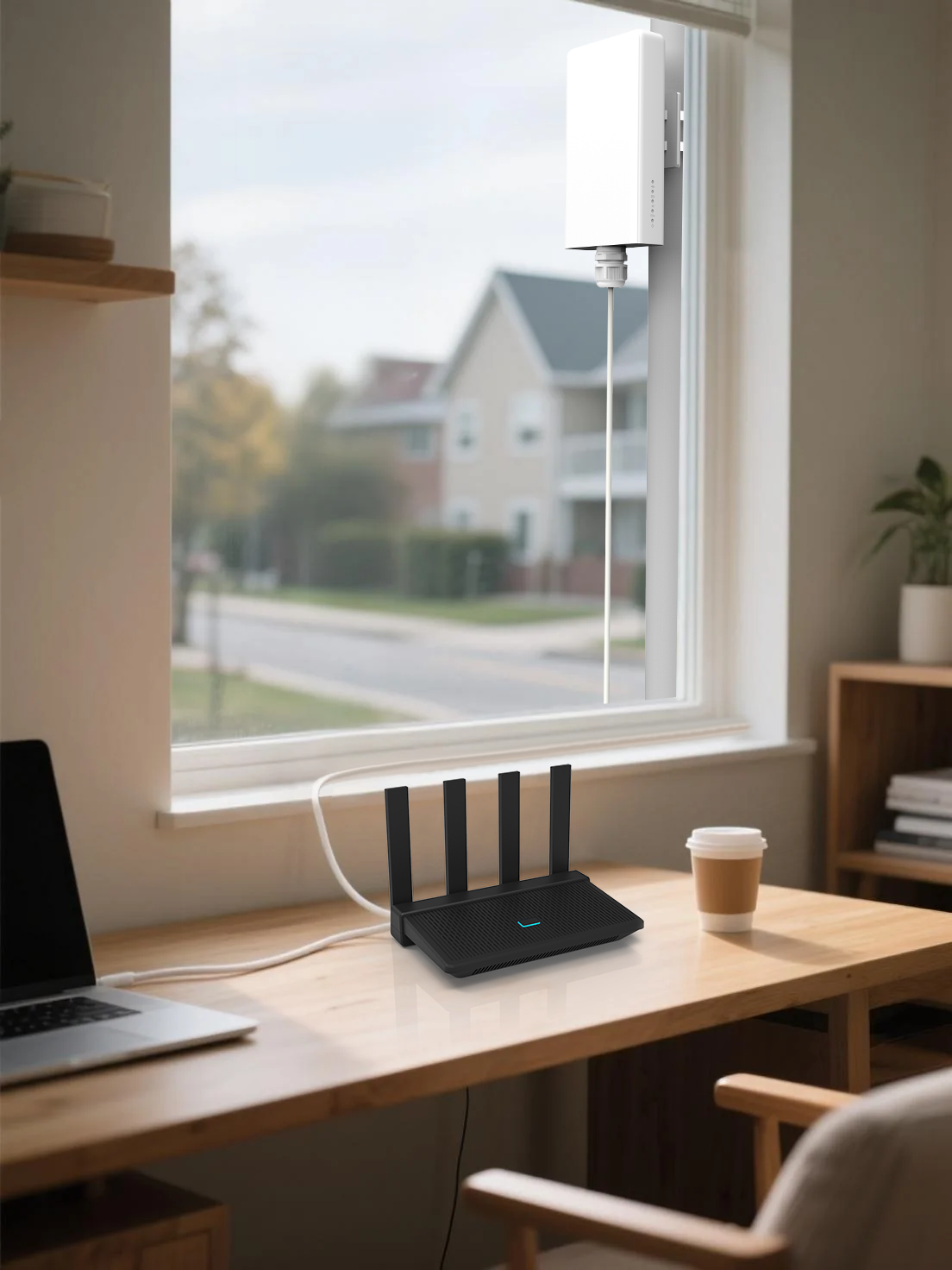

The ZLT X17U is a robust Outdoor Unit (ODU) designed to deliver reliable, high-speed 4G and 5G wireless broadband access directly to your premises. Engineered for demanding environments, it's the perfect solution for homes, businesses, stores, and industrial applications requiring stable, high-bandwidth internet connectivity where traditional wired options are limited or unavailable.

Powerful Hardware for Superior Performance
At its core, the X17U utilizes the advanced Unisoc V620 5G chipset, ensuring comprehensive global band support (including key bands like n78/n41, B3/B7/B28) and seamless backward compatibility with 4G networks. It excels with features like 5G Dual Carrier Aggregation (2CC), achieving peak theoretical speeds up to 5.47Gbps DL (NSA) and 1.875Gbps UL (SA). Its integrated antenna system combines four omnidirectional (1-5dBi) and four high-gain directional (11dBi) antennas for optimal signal reception. The cornerstone of its wired connectivity is a single 2.5Gbps Ethernet port, fully capable of handling the high throughput delivered by modern 5G networks. Power over Ethernet (PoE) support (36-57V) simplifies outdoor installation and deployment.

Advanced Networking & Management Capabilities
Beyond pure connectivity, the X17U functions as a feature-rich network gateway. It includes essential routing functions like NAT, DHCP server, and a configurable firewall for security. Crucially, it supports comprehensive VPN functionality, acting as both a client and server for protocols like PPTP, L2TP, GRE, and IPSec, ideal for secure remote access or site-to-site connections. The device offers flexible management via web UI (HTTP/HTTPS), TELNET, and supports remote provisioning and monitoring through TR069. IPv4/IPv6 dual-stack support, APN configuration, band locking, and remote firmware upgrades ensure future-proofing and adaptability.

Built for the Outdoors
Designed to withstand harsh conditions, the X17U boasts an IP67 protection rating, making it dust-tight and resistant to water immersion. It operates reliably across a wide temperature range (-30°C to +60°C). Its compact dimensions (195 x 110 x 42 mm) and PoE support make deployment straightforward in virtually any outdoor location requiring high-performance wireless broadband access.
