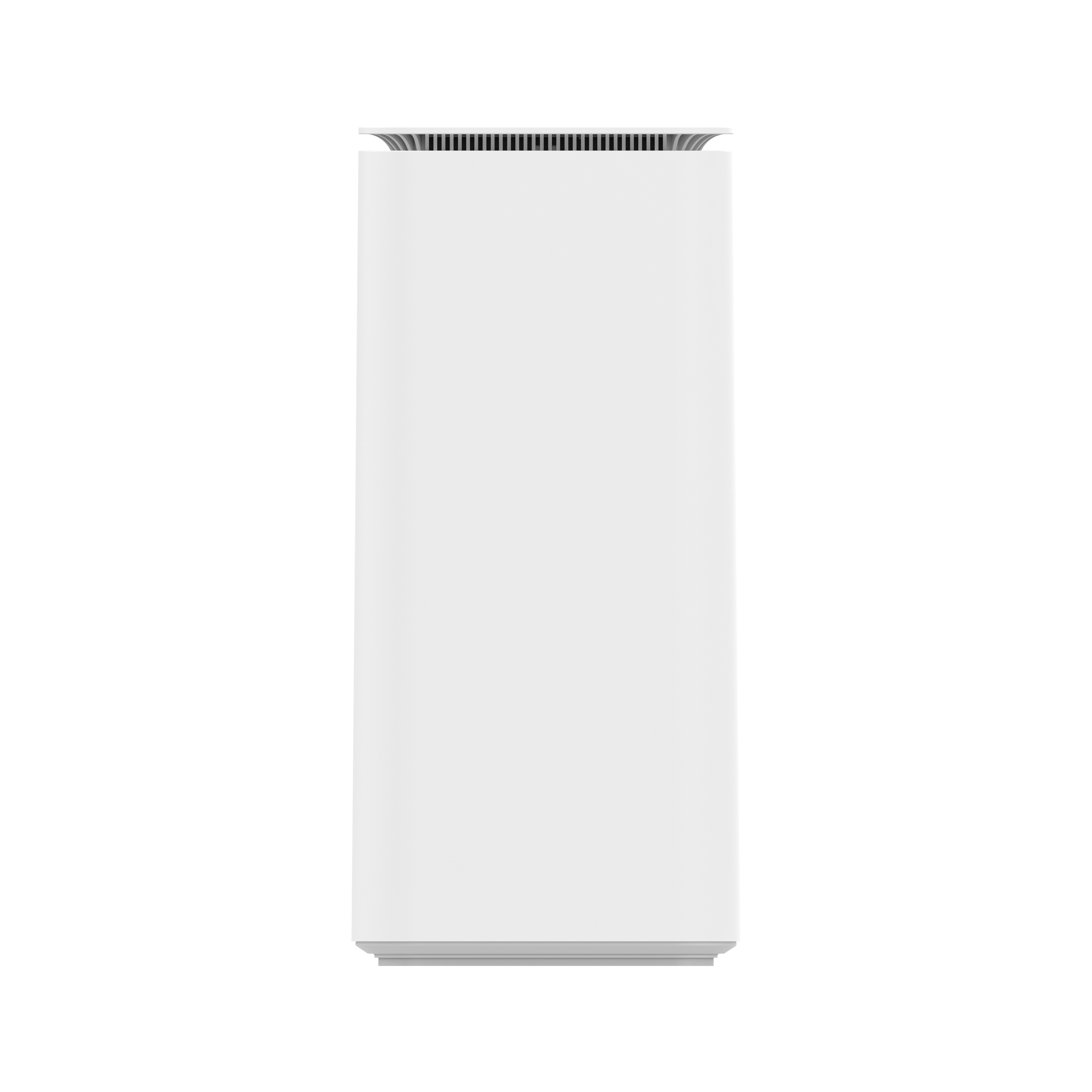

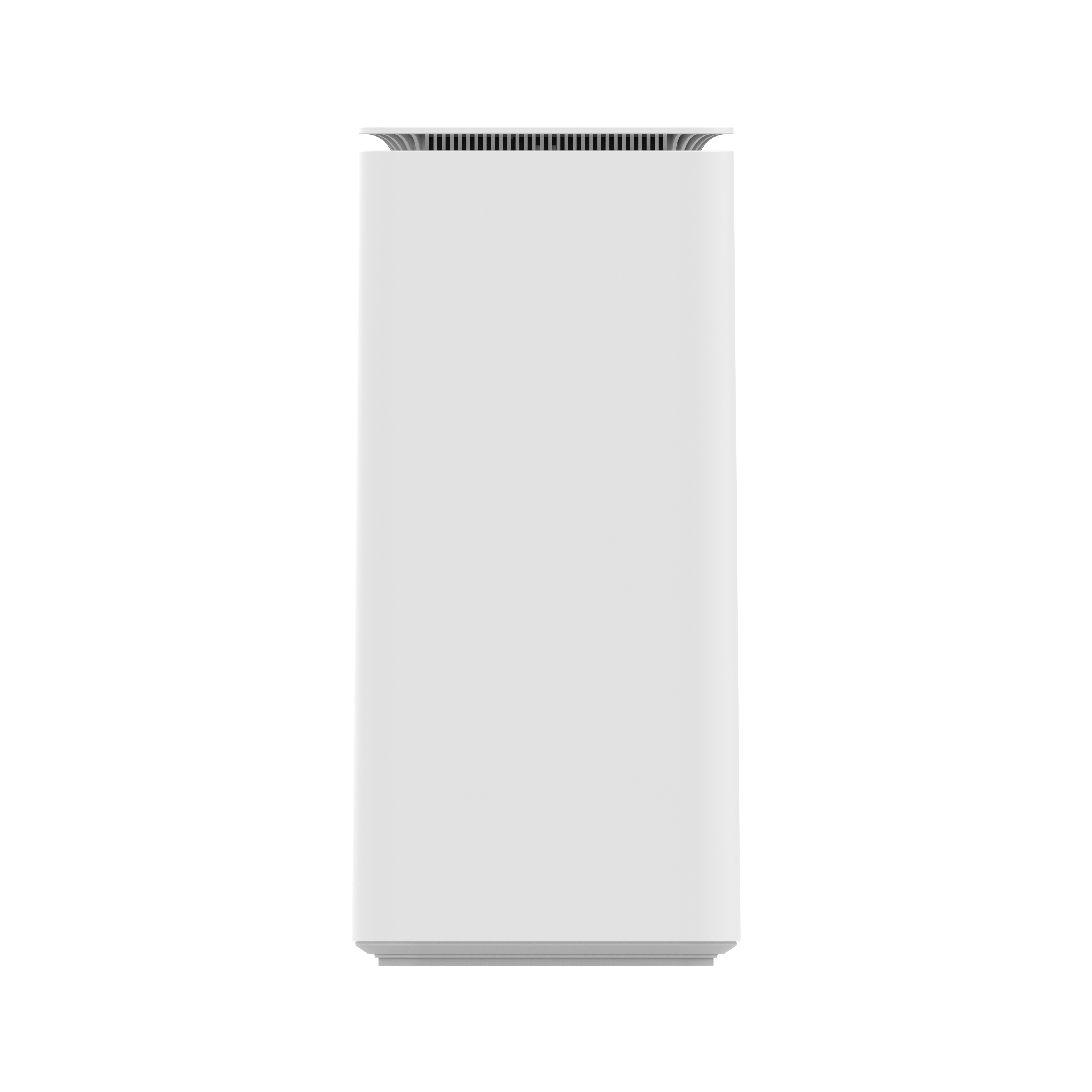

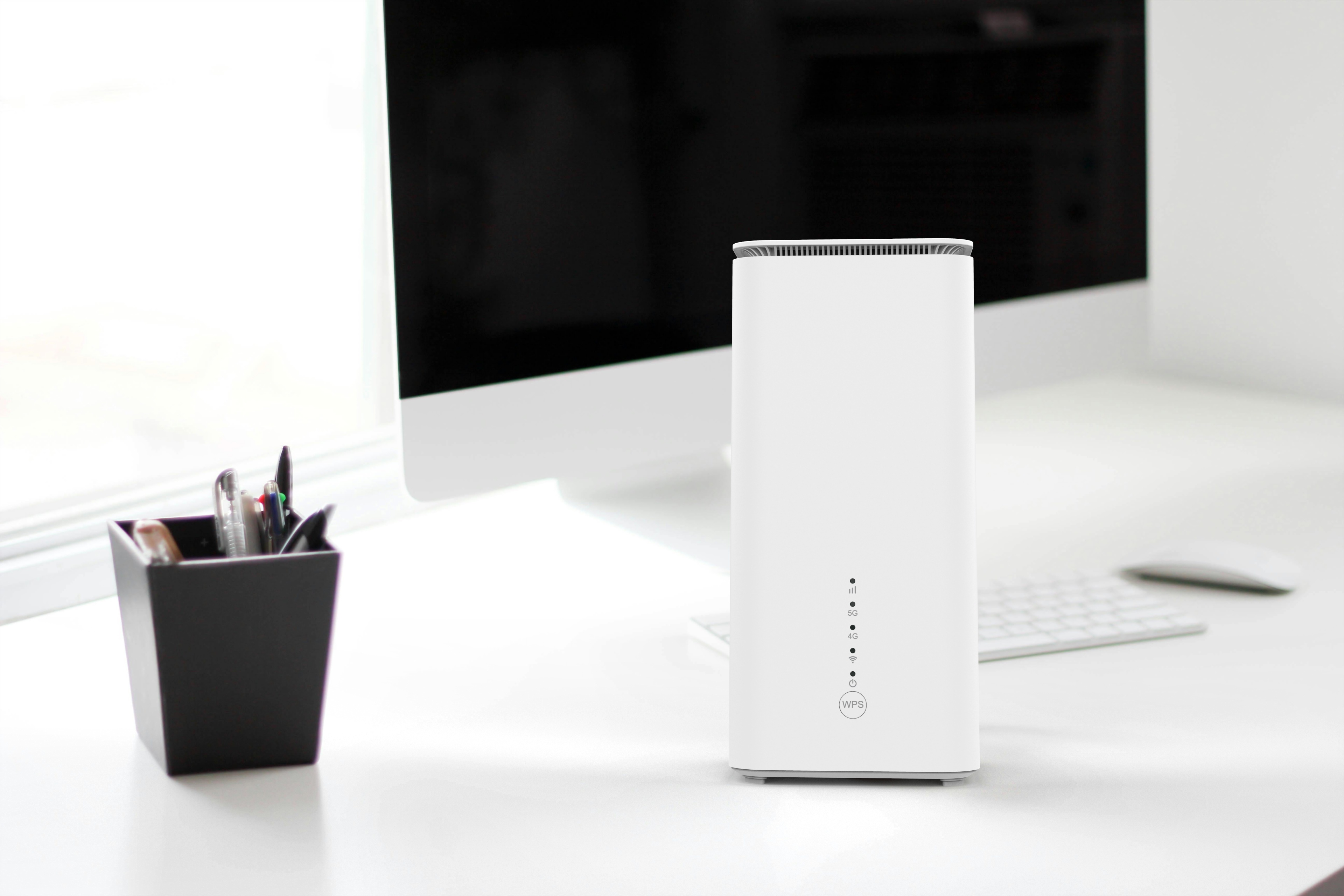

ZLT X25 MAX2

5G Indoor CPE

ZLT X25 MAX2 is an indoor 5G/Wi-Fi 6 CPE featuring dual-band AX3000 Wi-Fi, dual 2.5Gbps Ethernet ports, and global 5G/4G band support. Designed for homes, businesses, and industrial use, it delivers high-speed wireless broadband with advanced functions like VPN, firewall, EasyMesh, and NFC connectivity. Its compact design includes omnidirectional/directional antennas for seamless indoor coverage.

Introduction

The ZLT X25 MAX2 is a premium indoor 5G CPE leveraging Wi-Fi 6 (AX3000) technology for ultra-fast, reliable wireless broadband. Supporting global 5G SA/NSA and 4G bands (including carrier aggregation up to 200MHz), it ensures high-speed access in diverse environments—from homes and shops to enterprises and industrial sites.

Powerful Hardware

●Connectivity: Dual 2.5Gbps Ethernet ports, optional RJ11 voice port, and USB-C for debugging.

●Antennas: Built-in omnidirectional antennas + optional 9dBi directional antennas (TS-9 interface).

●Efficiency: 4×4 MIMO 5G/LTE, <18W power consumption, and compact 92×92×205mm design.

Advanced Features

●Wi-Fi 6: 574Mbps (2.4GHz) + 2402Mbps (5GHz), 160MHz bandwidth, 128 concurrent users.

●Networking: VPN server/client (IPSec/L2TP/PPTP), DHCP, IPv4/IPv6, NAT, firewall, and static routing.

●Smart Tools: EasyMesh for whole-home coverage, NFC one-tap Wi-Fi access, and TR069 remote management.

Enterprise-Grade Software
Dual-account web UI (admin/user), SIM/PIN management, system diagnostics, and remote upgrades. CE-certified for reliability in 0°C–45°C environments.

Ideal For: High-demand applications requiring gigabit speeds, robust security, and scalable coverage—all in one future-proof device.

Specifications

Feature	Description
Network Port	2 * 2.5Gbps network port
Voice Port	1 * RJ11 voice port(optional)
WPS/Mesh Button	Support WPS/Mesh one-click access
Antenna Type	Built-in omnidirectional and high-gain directional antenna design
External Antenna	Support TS-9 external antenna interface(optional)

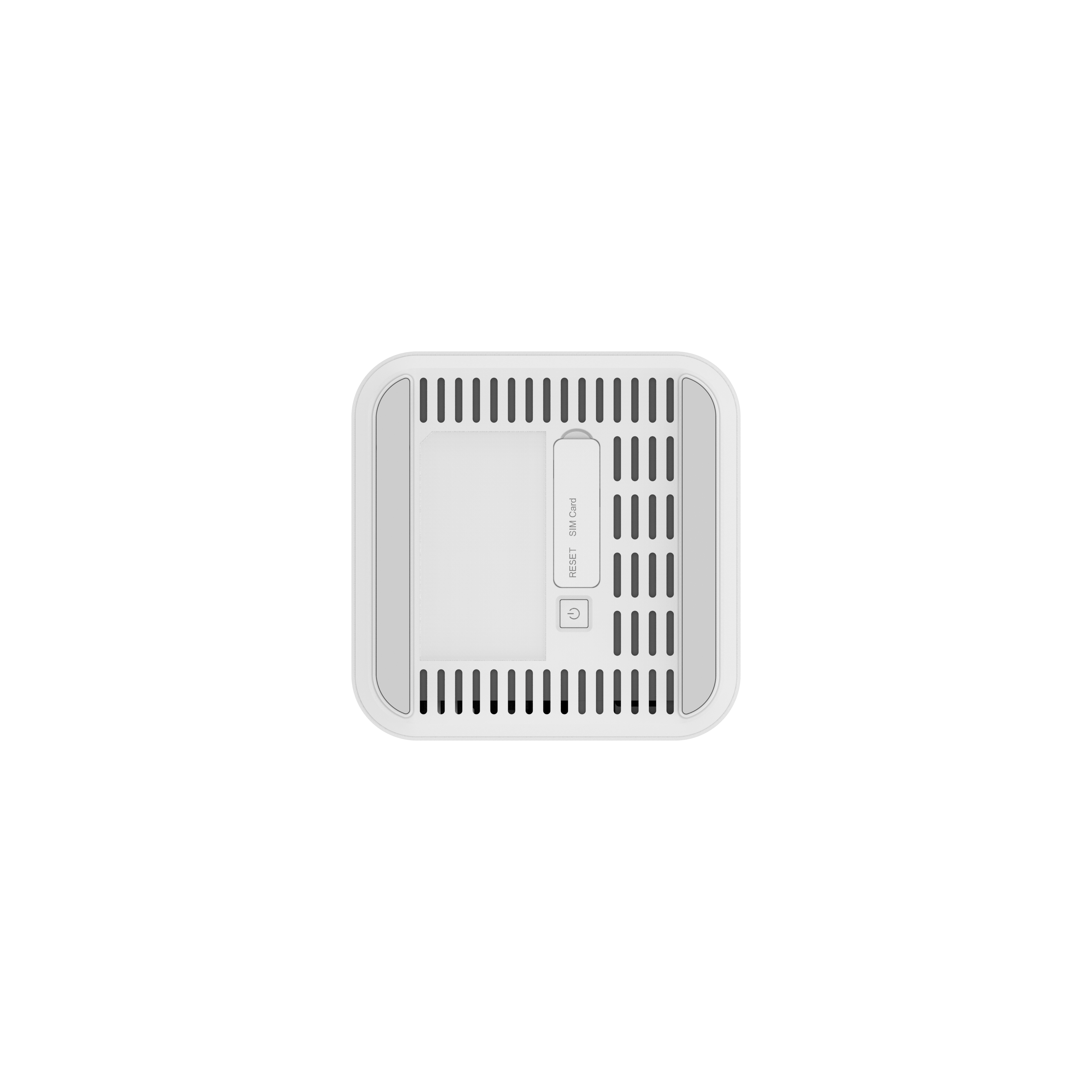

SIM Card Port	1 * Nano SIM card(1,8v & 3.3v adaptive);
USB Port	1 * TYPE-C interface, used for device debugging
Certification	CE certification
NFC	Support NFC one-touch access to Wi-Fi function
Dimensions	92* 92*205mm
Network Mode	3GPP Release 15, 5G NR SA, 5G NR NSA, LTE
Frequency Band	NR: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N71 FDD: B1/B3/B5/B7/B8/B20/B28/B71 TDD: B38/B40/B41/B42/B43 UMTS/HSPA+: B1/B5/B8
5G MIMO	NR 44 MIMO: N1/N3/N7/N38/N40/N41/N77/N78 LTE 44 MIMO: B1/B3/B7/B38/B40/B41/B42/B43
Peak Throughput	NR: DL: 4.67Gbps, UL: 1.25Gbps
Wi-Fi Frequency	2.4GHz, 5GHz
Wi-Fi Mode	2.4G: 802.11b/g/n/ac/ax; 5G: 802.11a/n/ac/ax
Wi-Fi Channel Bandwidth	20MHz, 40MHz, 80MHz, 160MHz
Wi-Fi MIMO	MIMO 2*2
Wi -Fi Concurrent Users	2.4G: 64 users 5G: 64 users
