5G Indoor CPE

ZLT C200

5G Indoor CPE

Experience high-speed 5G SA/NSA connectivity and dual-band Wi-Fi 6 (AX1800) coverage with this versatile CPE. Featuring a 1Gbps Ethernet port, VOIP/VONR voice support, and robust routing features (NAT, DHCP, Firewall, VPN), it delivers reliable wireless broadband for homes, businesses, and industrial applications.
Watch Video

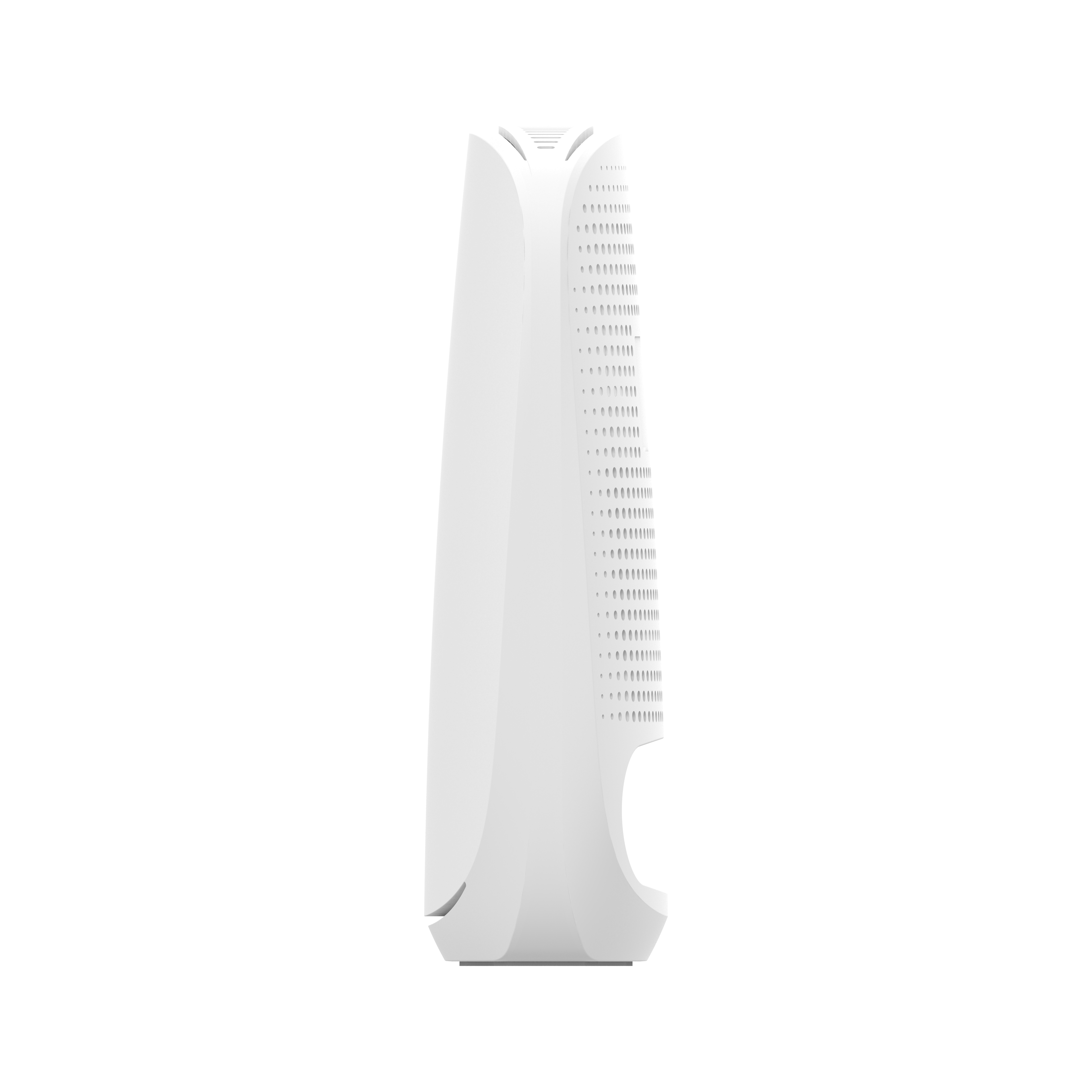

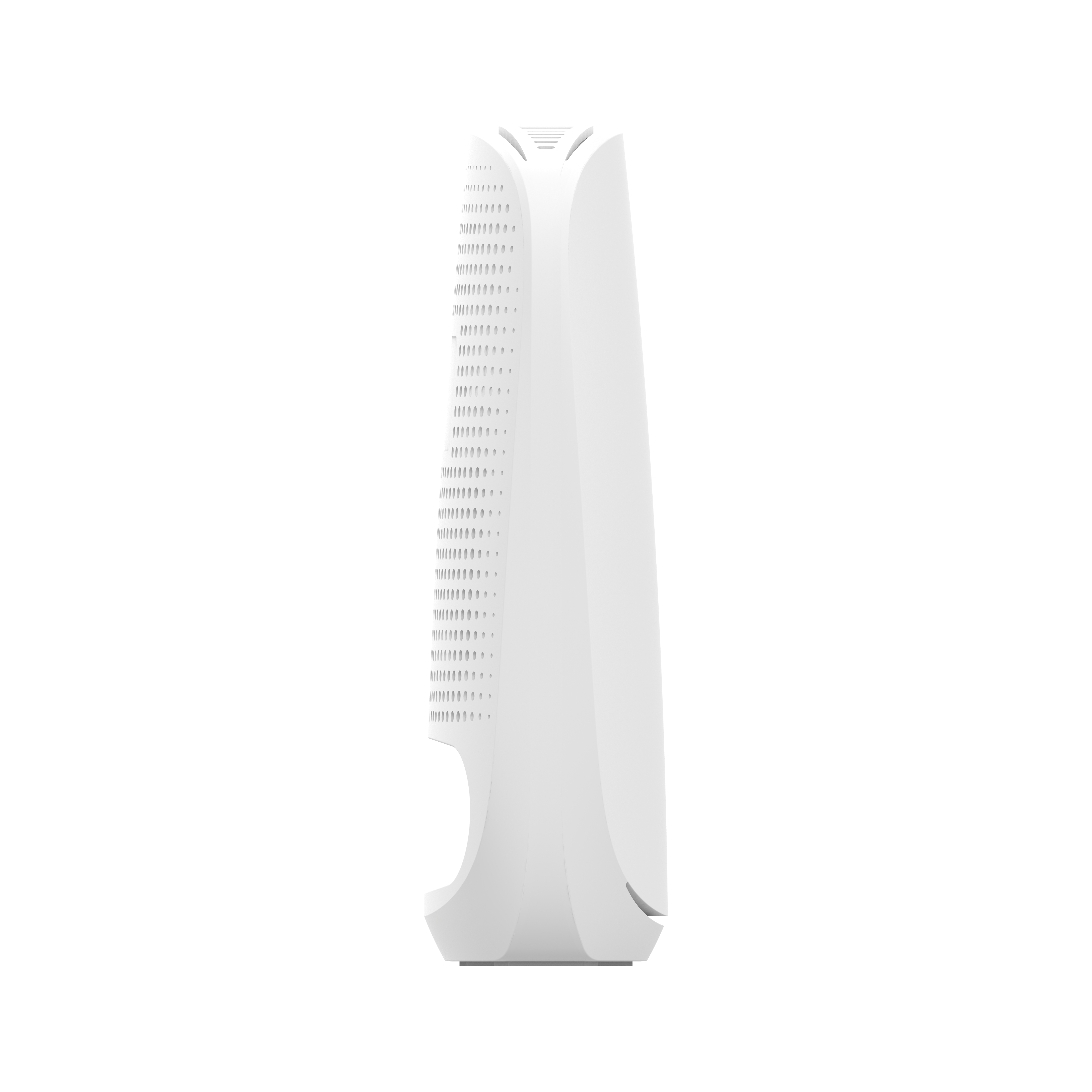

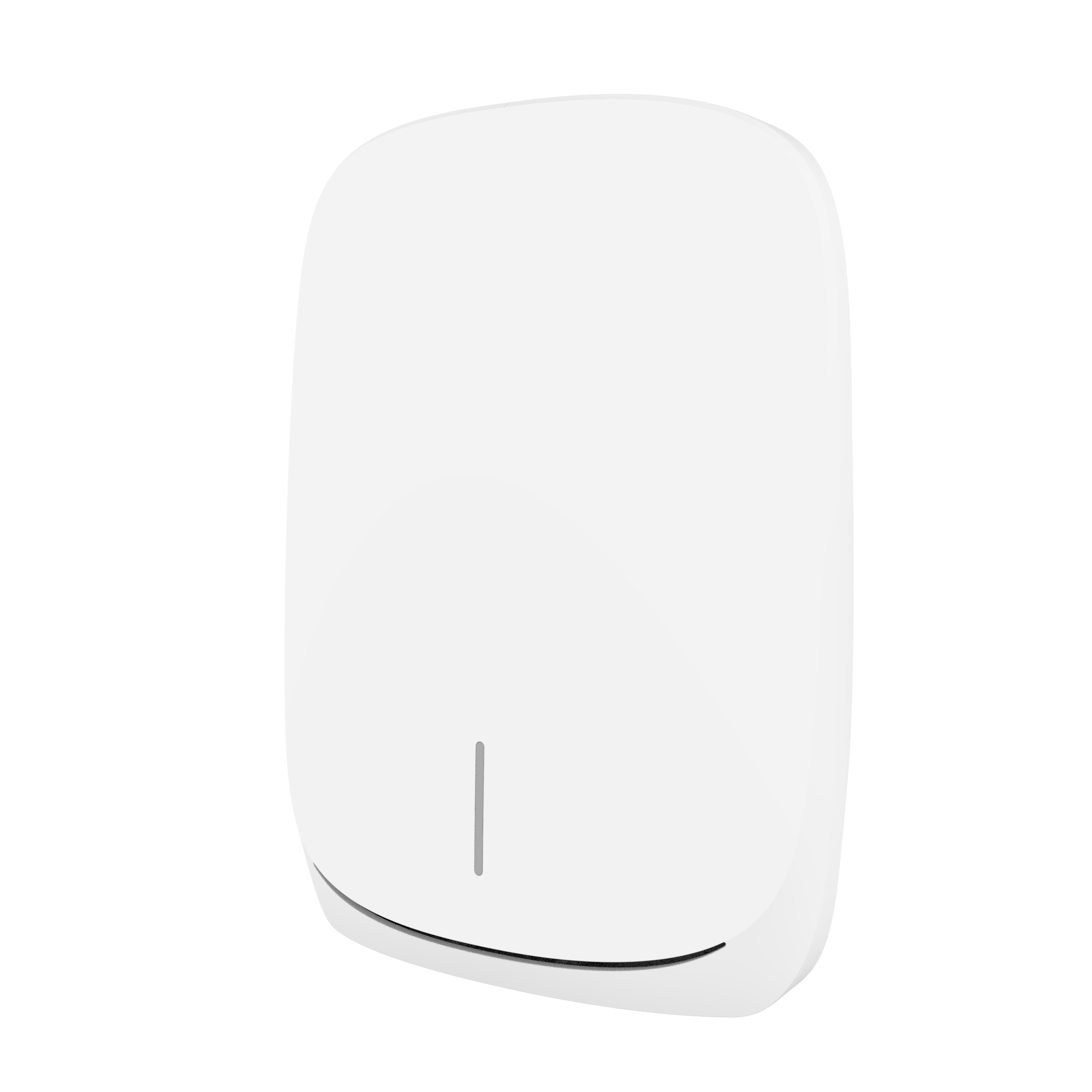

Appearance

Introduction

The ZLT C200 is an advanced indoor 5G CPE designed to provide reliable, high-speed wireless broadband access for demanding environments like enterprises, small businesses, shops, smart homes, and industrial settings. Powered by the high-performance 5G chipset, it supports both SA and NSA 5G modes, global 4G/5G frequency bands (including N1/3/5/8/28/41/77/78), and dual-carrier aggregation for peak theoretical speeds up to 5.47Gbps downlink. Its 8 built-in omnidirectional antennas ensure strong cellular reception and wide indoor coverage.



Next-Gen Connectivity & Hardware: Experience Wi-Fi 6 efficiency with dual-band AX1800 concurrent radios. The 5.8GHz band leverages 802.11ax with 80MHz bandwidth (up to 1.2Gbps), while the 2.4GHz band uses 802.11n with 40MHz bandwidth (up to 573Mbps), supporting up to 64 concurrent users total. Essential connectivity includes a 1Gbps Ethernet port, a voice interface (RJ11 optional) for VOIP/VOLTE/VONR, and EasyMesh support for seamless whole-home Wi-Fi expansion. Compact and certified (3C/CE), it operates efficiently (<18W).



Enterprise-Grade Software & Security: The C200 goes beyond basic routing with comprehensive features. It supports multiple WAN types (Static IP, DHCP), advanced VPN capabilities (PPTP, L2TP, IPSec client/server), and robust firewall functions (ACL, IP/MAC/URL filtering, DMZ, Port Forwarding). Enjoy secure remote management via TR069 or TELNET, local/remote firmware upgrades, IPv4/IPv6 support, DHCP reservation, traffic statistics, and detailed diagnostics. This makes it a secure and manageable solution for professional deployments requiring reliable, high-performance network access.

Specifications

Dimensions

138*186*54mm

Weight

500g

Standard

NSA/SA/TDD-LTE/FDD-LTE

Network mode

3GPP Release 16, NSA&SA

CA/EN-DC

NSA: 1 NR + 4 LTE / 2 NR + 3 LTE
SA:2 NR CA / 4G CA:5CC

MIMO

1T2R:N5/N8/N28
2T4R:N1/N3/N41/N77/N78

Peak Throughput

SA: 4.67Gbps@DL, 1.875Gbps@UL
NSA: 5.47Gbps@DL, 1.375Gbps@UL

Wi-Fi

Dual Band Wi-Fi 6 /AX1800 / MIMO 2*2

Wi-Fi Concurrent

2.4G: 32 Users / 5.8G: 32 Users

MESH/WPS

MESH

NFC Wi-Fi

NFC One-Touch Wi-Fionly for Android

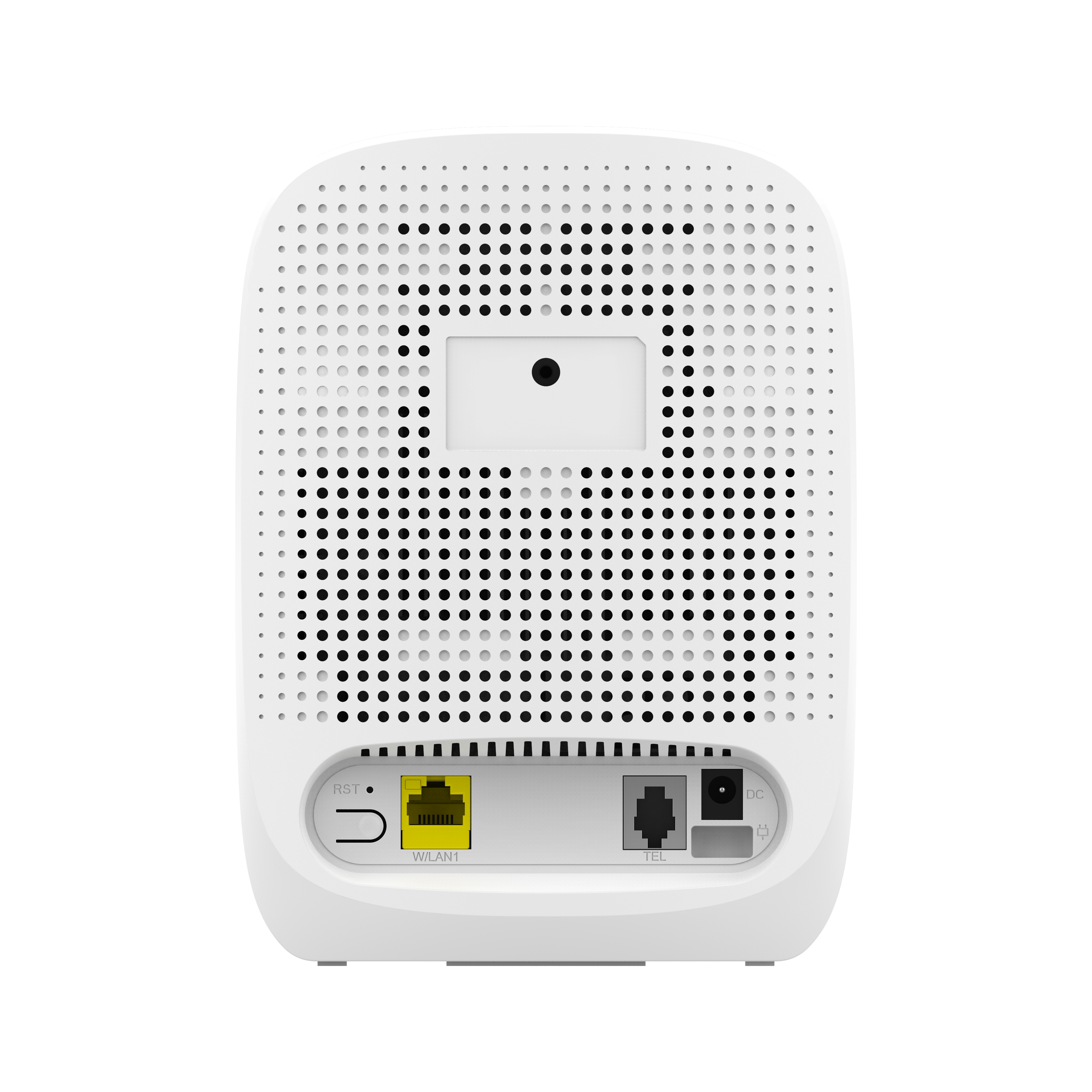

Interfaces

1*TYPE-C ,used for device debugging
1*SIM Slot
1*DC power input
1*1GE RJ45 Port
1*RJ11(Optional)

Application

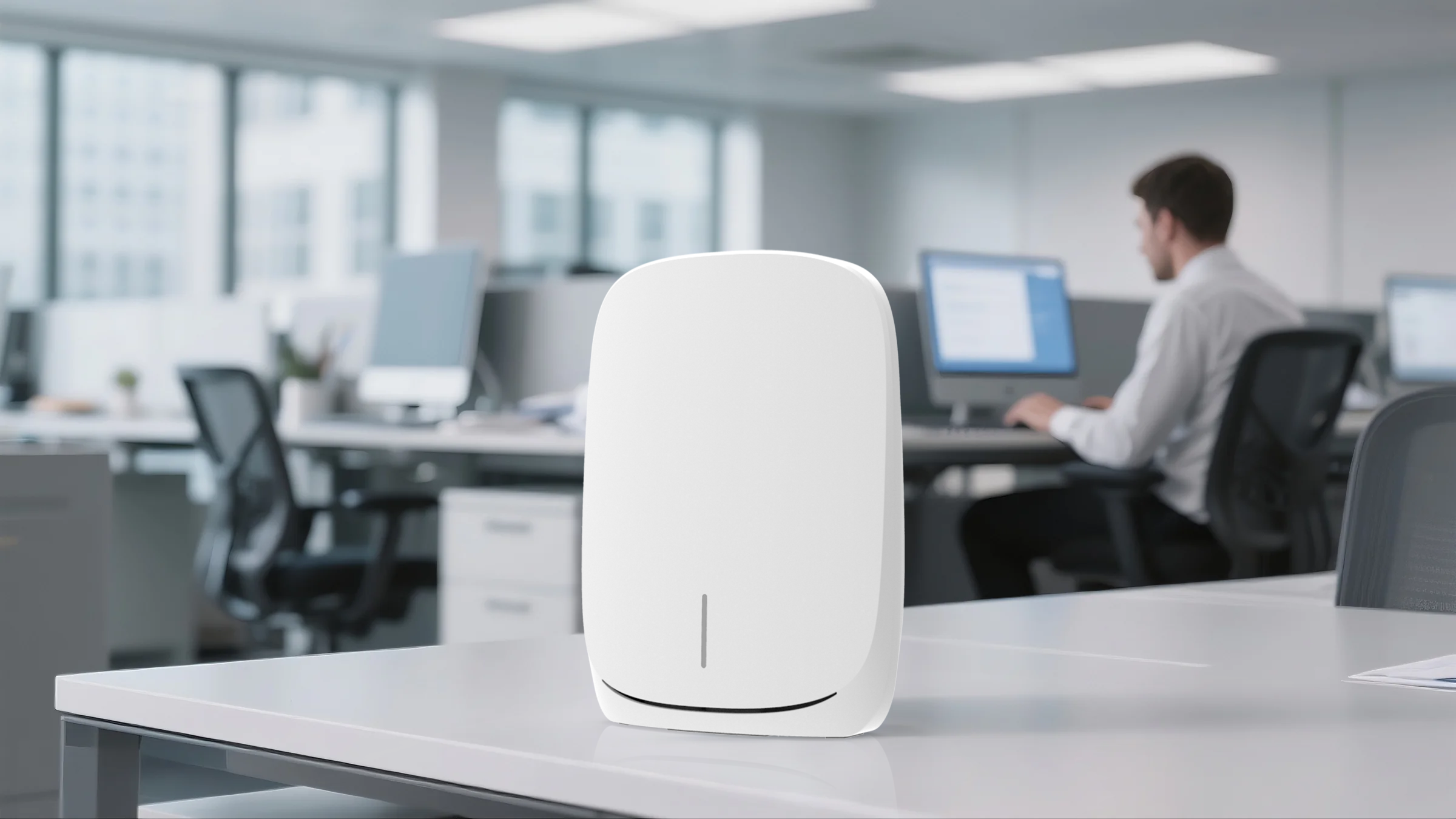

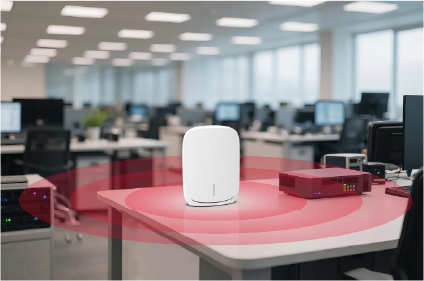

Enterprise Office

Enterprise Office

Industrial Internet

Industrial Internet

Smart Commercial Complex

Smart Commercial Complex

Online Education

Online Education

Remote Diagnosis

Remote Diagnosis

Smart Home

Smart Home
