4G Indoor CPE

ZLT S95

4G Indoor CPE

ZLT S95 Indoor CAT6 4G CPE rapidly converts cellular networks into high-speed connectivity. Featuring a Gigabit LAN port, dual-band Wi-Fi 5 (2.4GHz/5GHz AC1200), and CAT6 LTE speeds (300Mbps DL/50Mbps UL), it enables quick network deployment for homes or businesses. Includes remote management (TR069/HTTPs), VoIP support, and dual-SIM flexibility with built-in antennas.
Watch Video

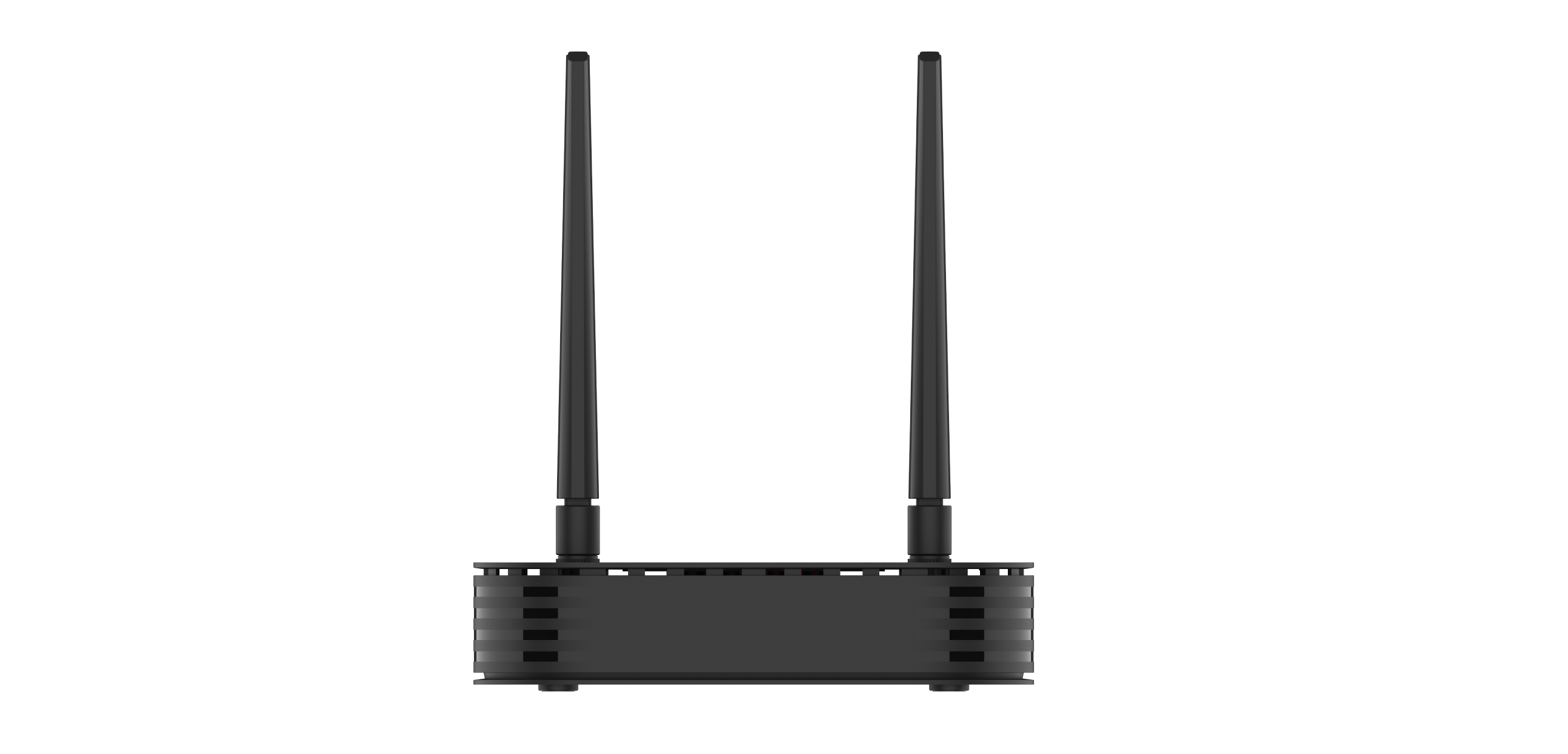

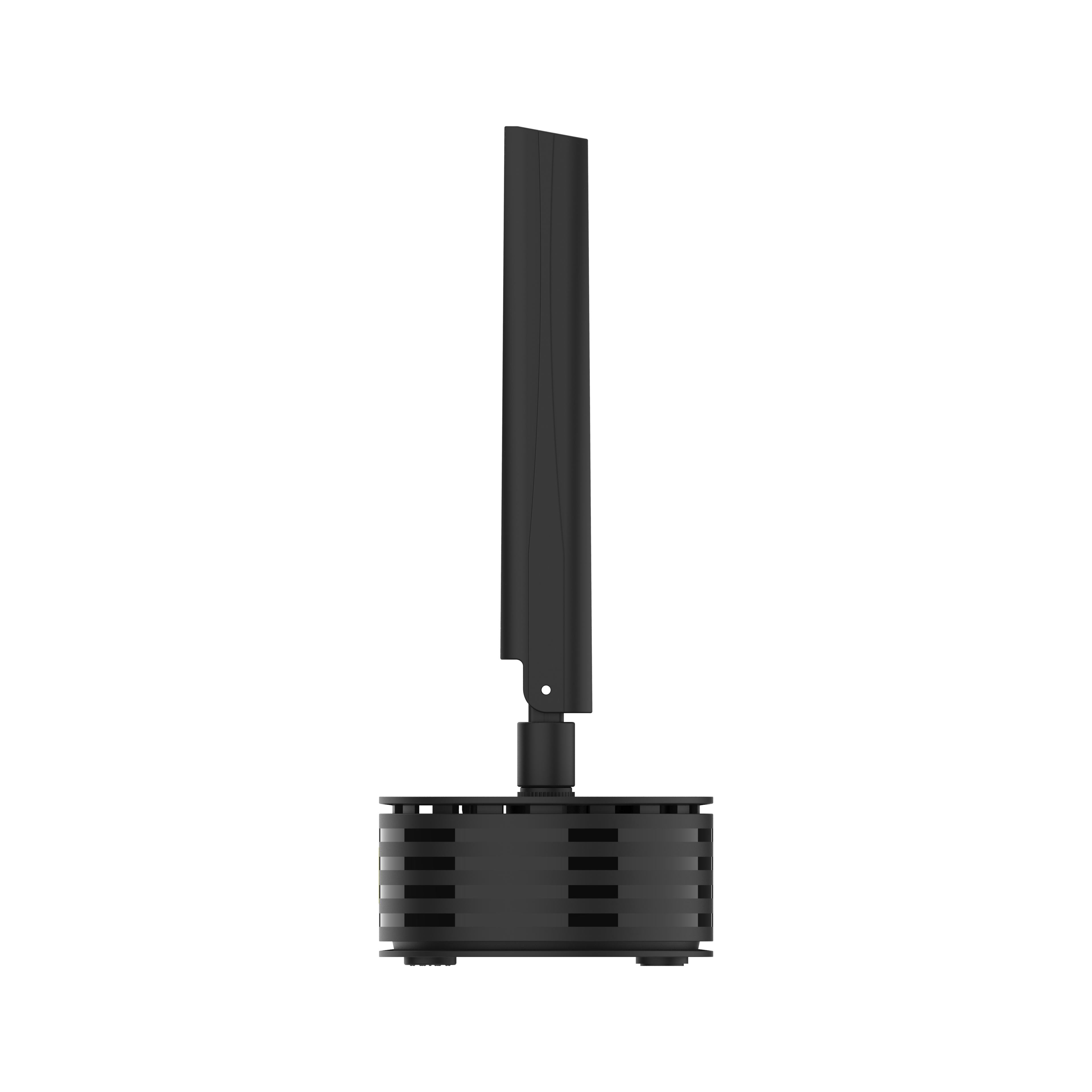

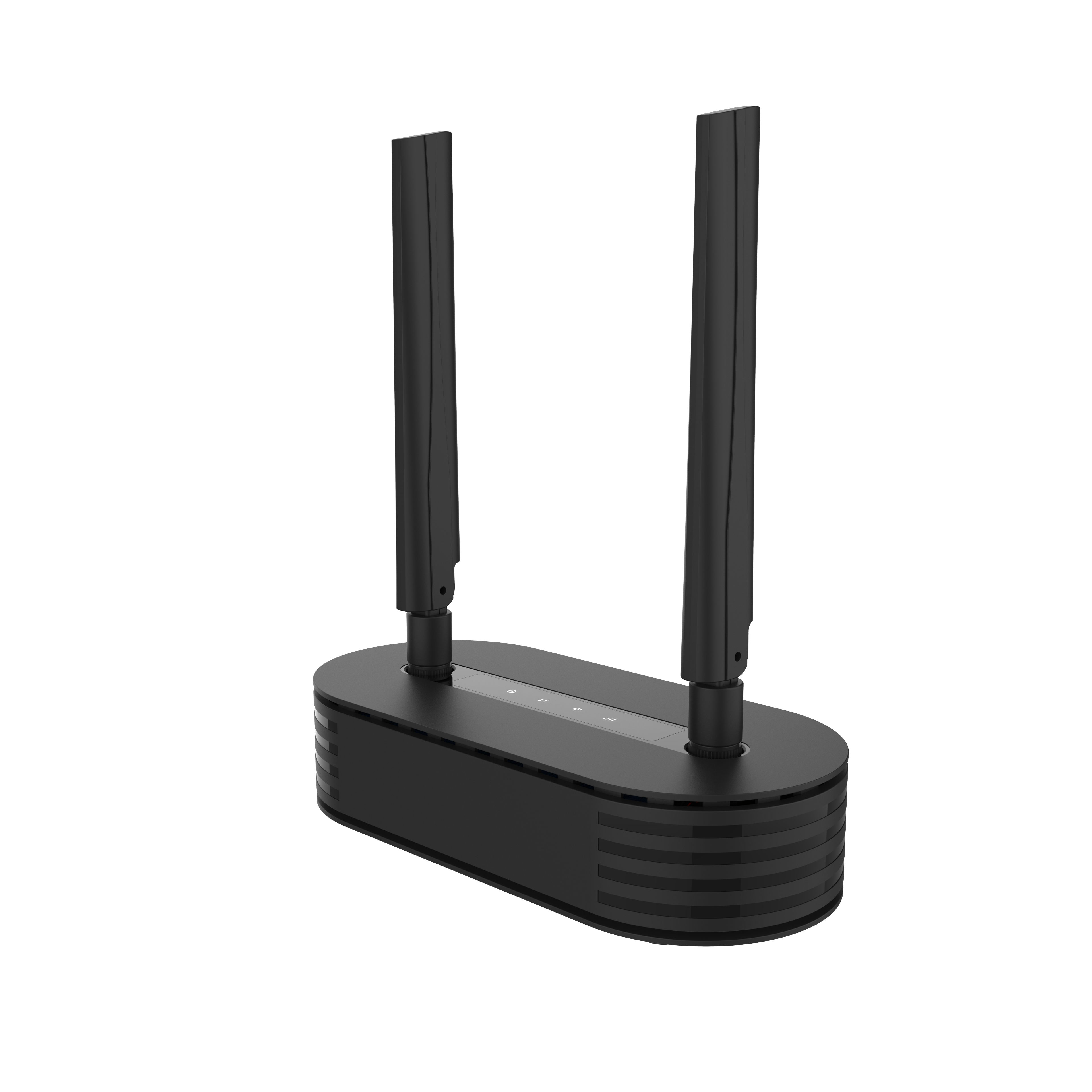

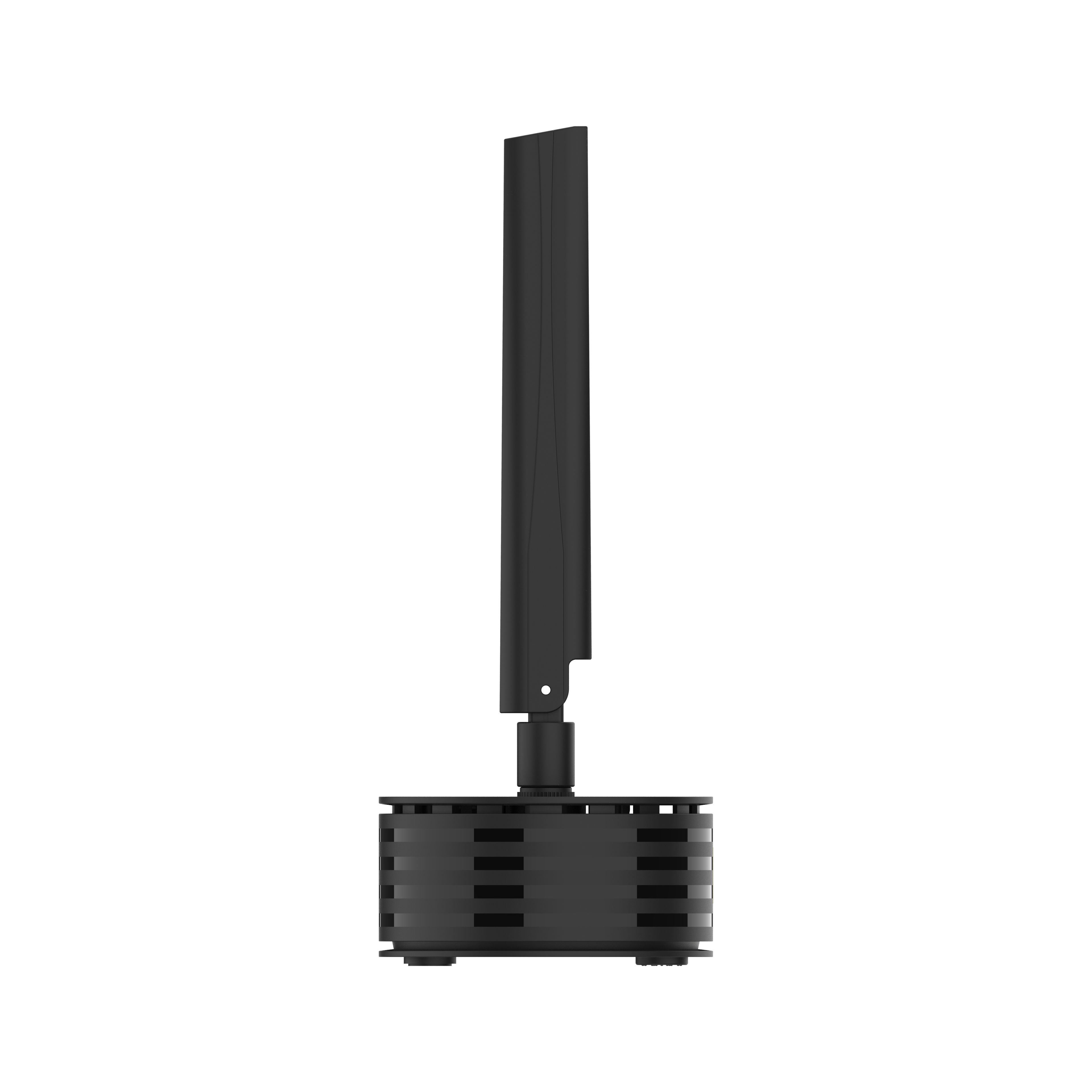

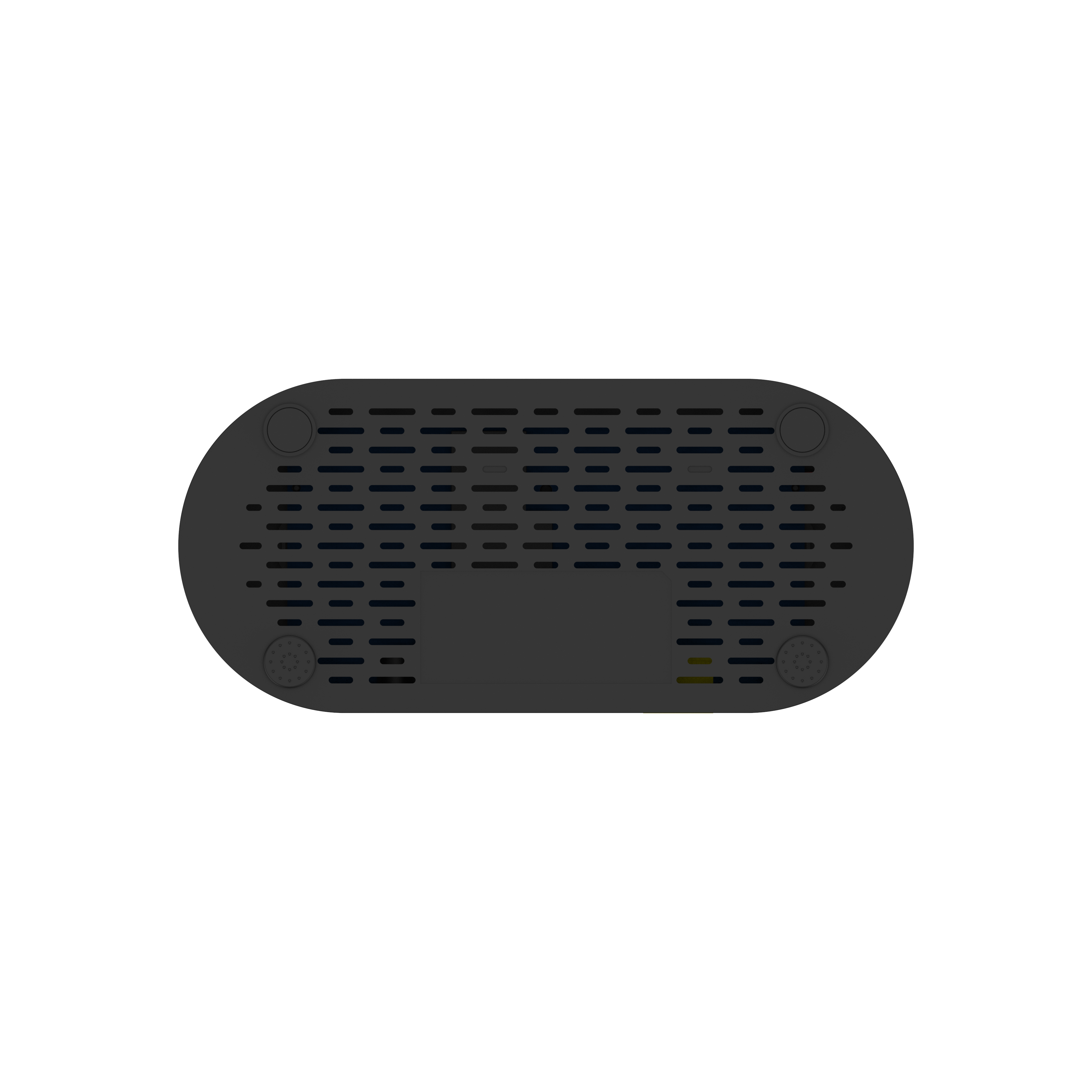

Appearance

Introduction

The ZLT S95 is an advanced indoor CAT6 4G CPE designed for rapid communication network deployment in homes and businesses. It seamlessly converts cellular data (TDD/FDD-LTE, WCDMA) into robust Wi-Fi and wired connectivity, eliminating infrastructure dependencies.



Key Features

●High-Speed Performance: CAT6 LTE support delivers 300Mbps download/50Mbps upload speeds, with Gigabit Ethernet and dual-band Wi-Fi 5 (AC1200: 300Mbps@2.4GHz + 867Mbps@5GHz).

●Deployment Flexibility: Compact design (165×75×37.5mm) with dual built-in LTE/Wi-Fi antennas, optional external antennas, and eSIM readiness. Supports 16 concurrent Wi-Fi users.

●Enterprise-Grade Management: TR069 remote control, HTTP/HTTPS access, firewall (IP/MAC/URL filtering), NAT, DMZ, and IPv4/IPv6 dual-stack. Includes VoIP/VoLTE support via RJ11 port.



Hardware & Software

●Robust Hardware: ASR1828 chipset, 1GB RAM/Flash, 12V power (<12W). Interfaces: Gigabit LAN, nano-SIM slot, Type-C debug port, and reset button.

●Smart Software: Remote/local firmware upgrades, APN configuration, cell/SIM locking, traffic statistics, and system log exports. Security: WPA3-PSK encryption and VPN support.



Applications
Ideal for temporary business sites, home offices, retail pop-ups, or backup internet solutions requiring plug-and-play installation. Operating temperature: 0°C–45°C.

Specifications

FeatureDescription
Network Mode TDD-LTE/FDD-LTE/WCDMA
InterfaceLAN Port * 1
SIM Slot * 1 (4FF)
DC Socket
TYPE_C USB2.0 for debugging
RJ11*1  (Optional)
Ethernet LAN1*10/100/1000 Mbps
SIM1*SIM (4FF, Nano-SIM)
Support 1.8V & 3.0V,
eSIM circuit is reserved
Antenna2* Built-in Wi-Fi antennas,
2* Built-in LTE antennas(configure by default ) , 2 External LTE antennas(optional)
Dimensions165*75*37.5mm
Support BandsFDD:B1/B3/B5/B7/B8/B20/B28/B32 (RX);
TDD: B38/B40/B41/B42/B43;
WCDMA:B1/B5/B8;
LTE Category CAT6
LTE MIMOLTE DL 2*2 MIMO
LTE Peak ThroughputDL: 300Mbps  UL: 50Mbps;
Wi-Fi Frequency2.4 GHz + 5GHz
Wi-Fi Mode2.4G:802.11b/g/n
5G:802.11a/n/ac
Wi-Fi Channel BW20MHz, 40MHz, 80MHz
Wi-Fi MIMOMIMO 2*2 (2T2R)
Wi-Fi Concurrent Users2.4G :8 users
5G : 8 users

Application

Home Broadband

Home Broadband

Retail Connectivity

Retail Connectivity

Event Networks

Event Networks

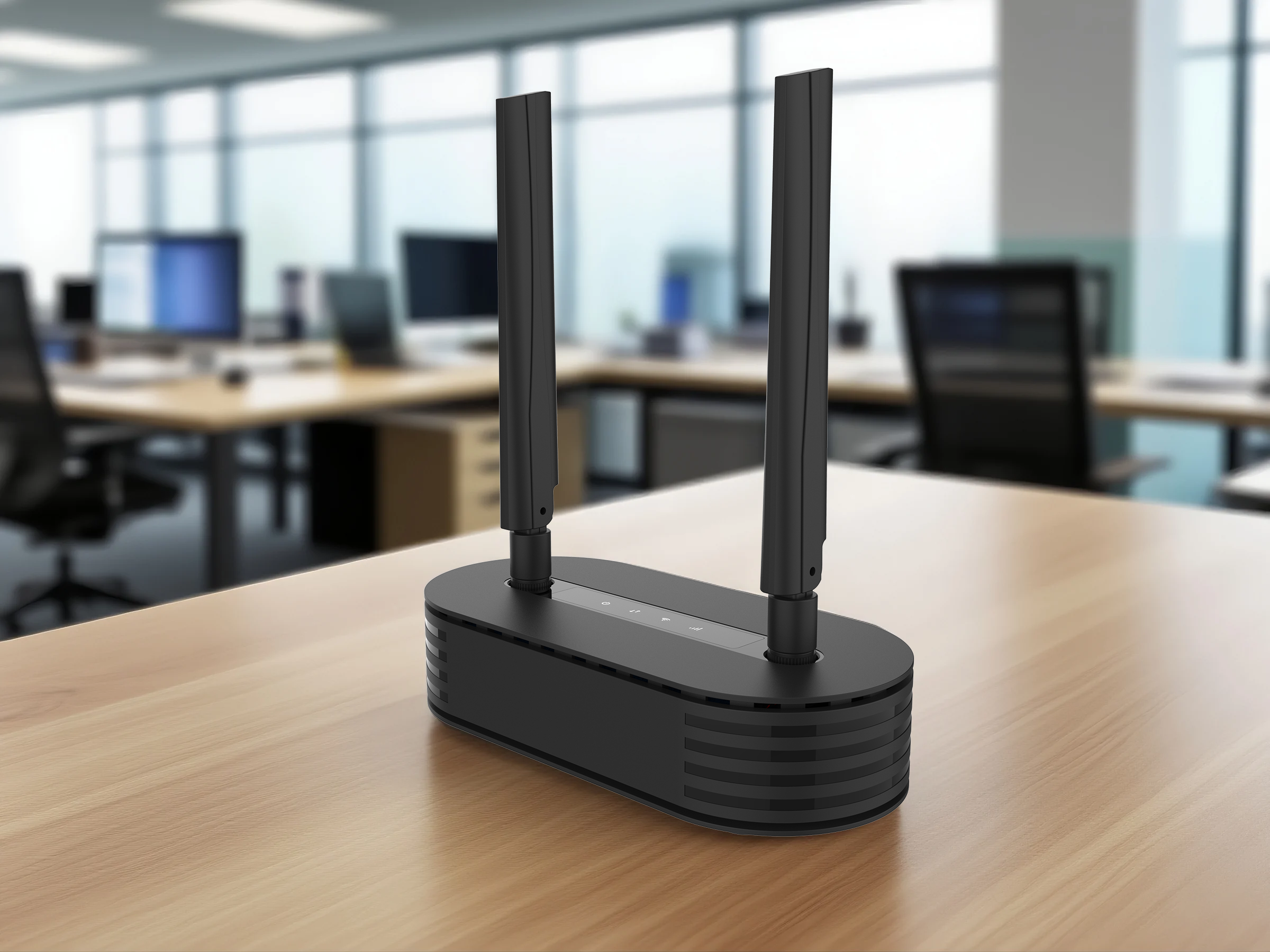

Mobile Office

Mobile Office

Vacation Rental Hotspots

Vacation Rental Hotspots

Agri-Tech Sensor Hub

Agri-Tech Sensor Hub
