Introduction

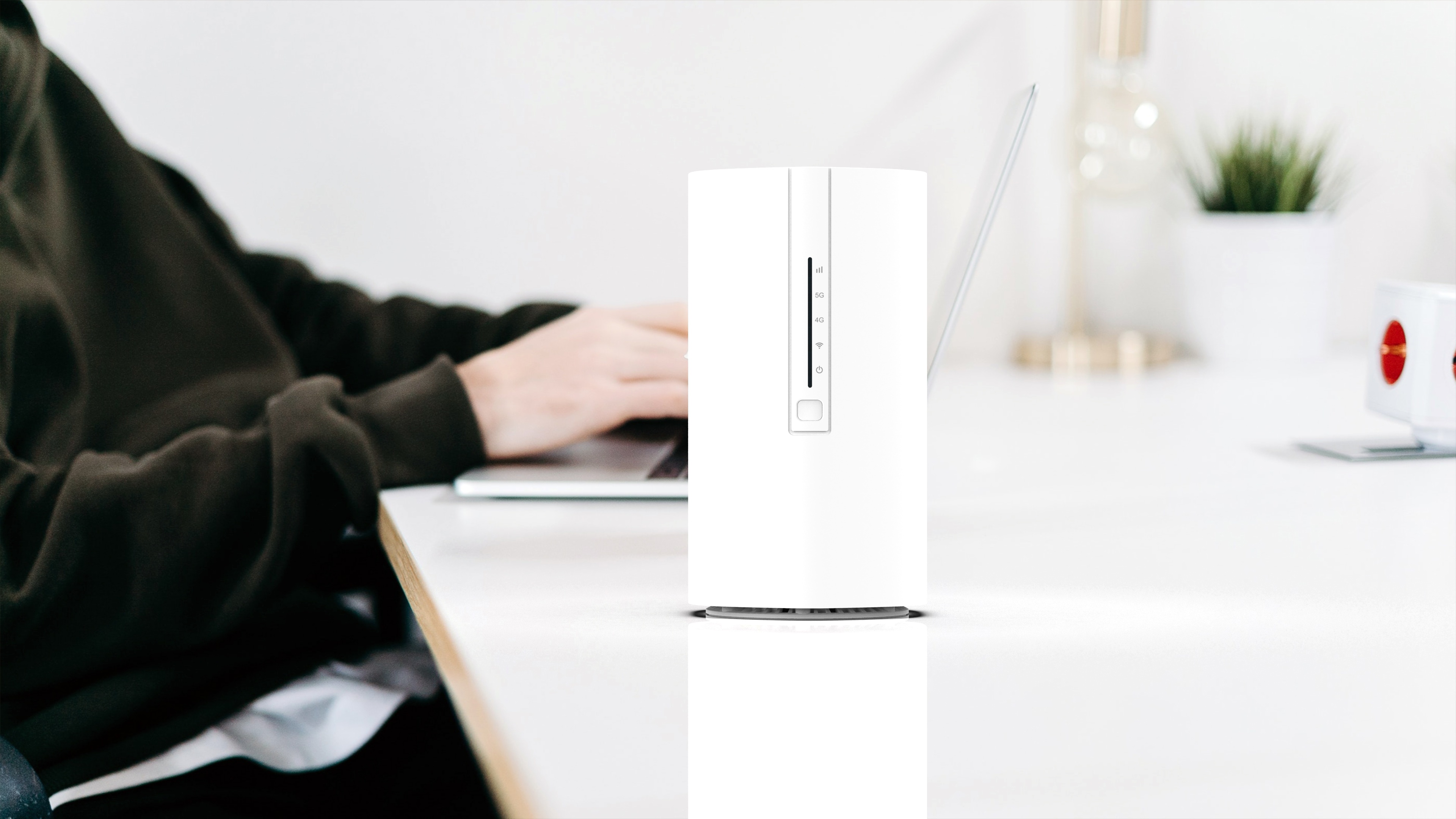

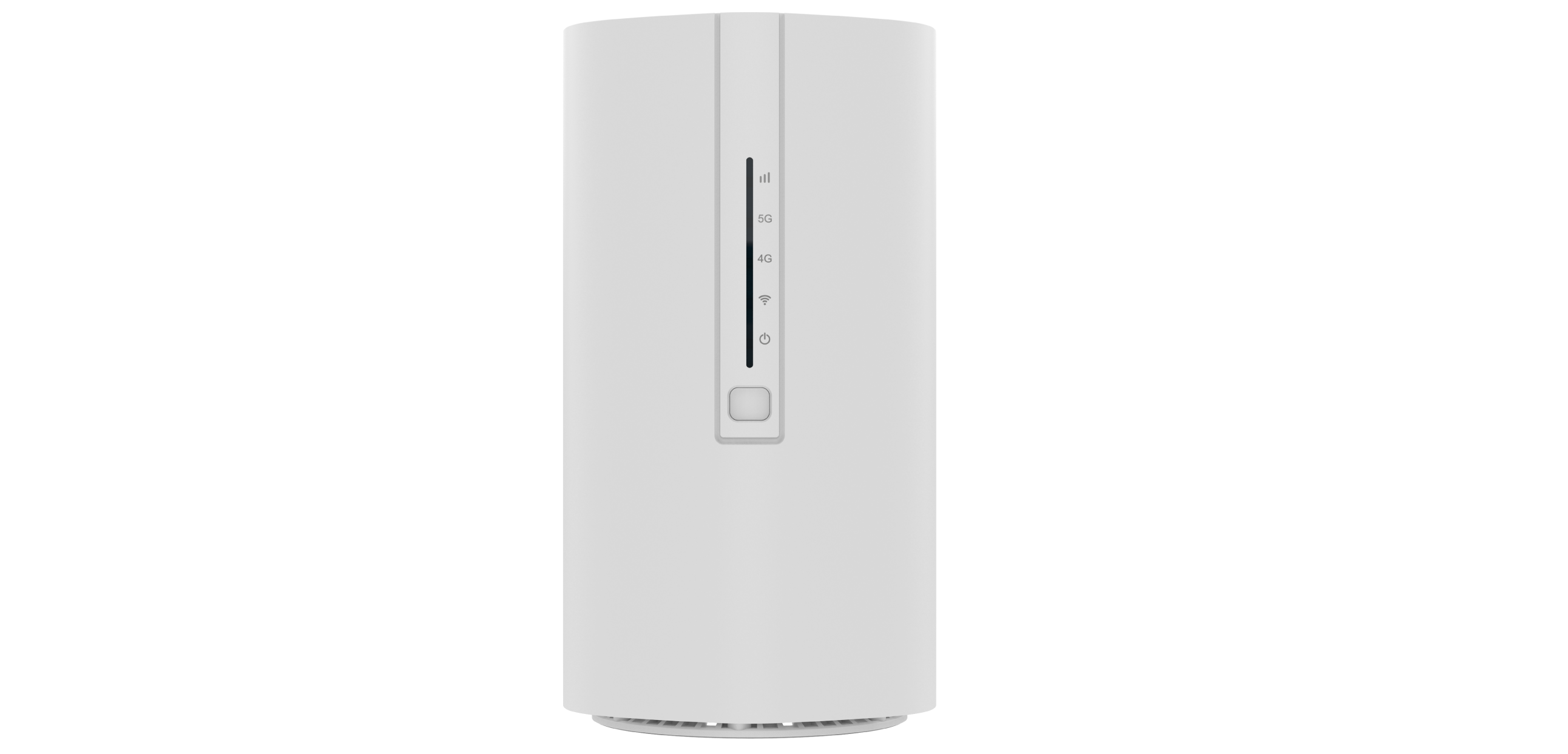

ZLT X300 PRO is an indoor Wi-Fi 7 5G CPE product that supports 5G-A. It supports 4 NRCA, with a maximum peak rate of up to 7.01Gbps, 4/5G communication, dual-band Wi-Fi 7, 4*4MIMO design, and a Wi-Fi theoretical rate of up to 7200Mbps; the device has 1*5Gbps W/LAN interface and 3*1Gbps LAN ports. It supports NAT, DHCP, firewall and VPN functions.
The product is suitable for various scenarios such as enterprises, homes, small shops, outdoor live broadcasts, etc. with high network requirements, providing users with reliable and high-speed 5G wireless broadband network access.
Specifications
Dimensions | 120*120*218mm |
Weight | 1200g |
Standard | NSA/SA/TDD-LTE/FDD-LTE/HSPA+ |
Network mode | NR FR1,SA/NSA |
CA/EN-DC | NSA: 1 NR + 4 LTE / 2 NR + 3 LTE |
MIMO | DL MIMO 4*4 |
Peak Throughput | 7.01Gbps (DL) /2.5Gbps (UL) |
Wi-Fi | Dual Band Wi-Fi 7 / BE7200 / MIMO 4*4 |
Wi-Fi Concurrent | 2.4G: 256 Users / 5.8G: 256 Users |
MESH/WPS | MESH/WPS |
NFC Wi-Fi | NFC One-Touch Wi-Fi only for Android |

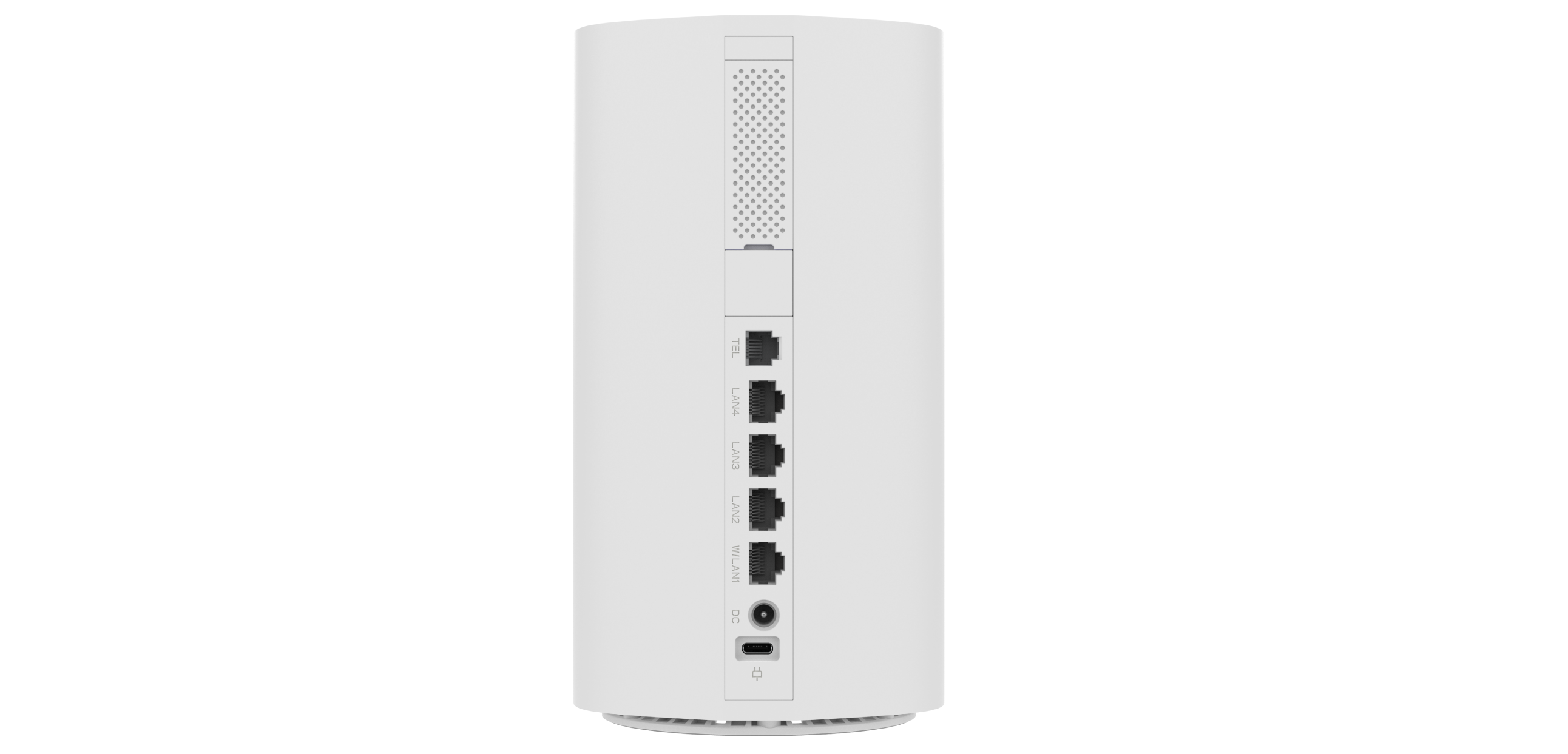

Port | 5GE * 1 / GE * 3 |
