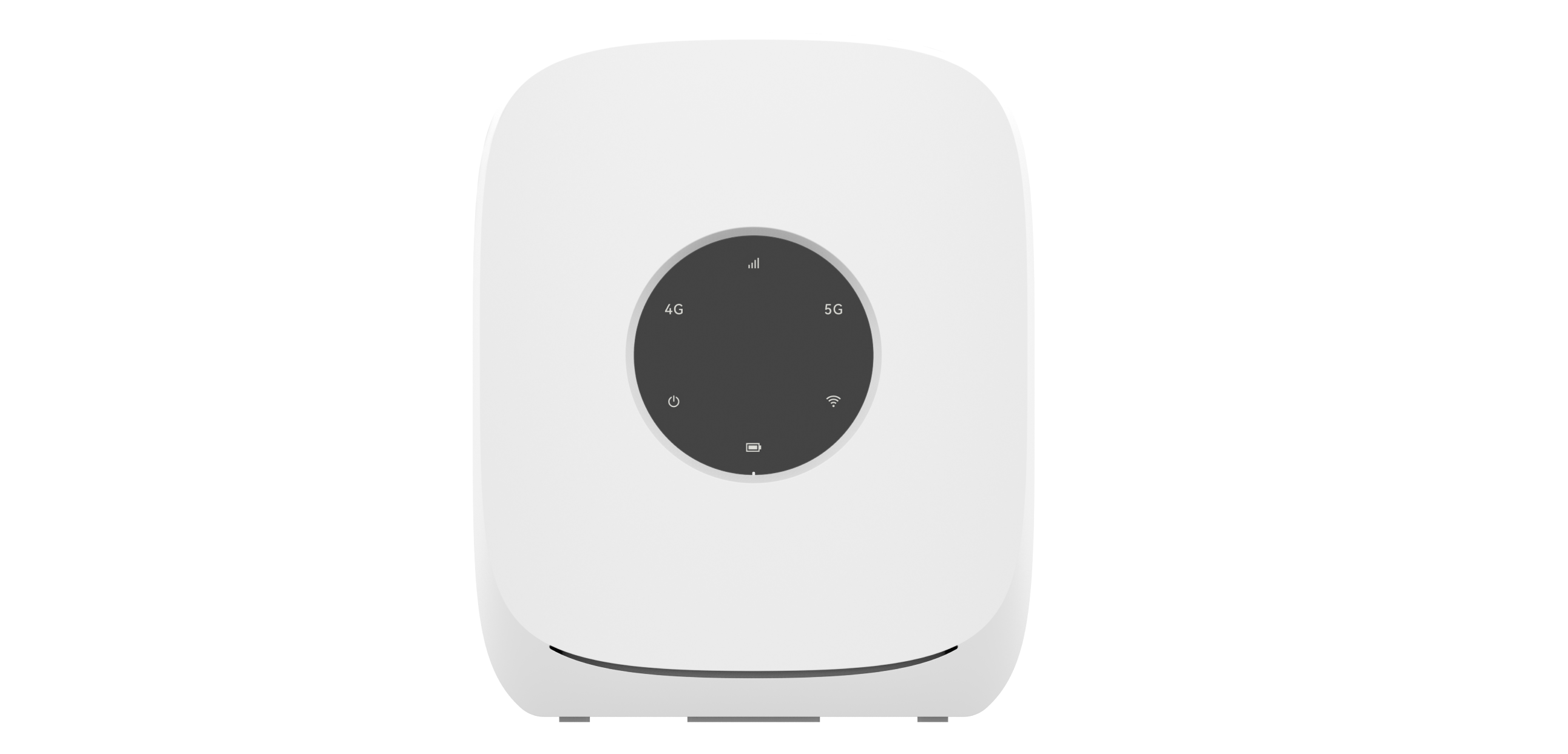

ZLT S100

5G Indoor CPE

dual-band Wi-Fi 6 (AX3000) 160MHz bandwidth, built-in 4*GE Ethernet ports. Optional battery power supply.

Introduction

ZLT S100 is an indoor Wi-Fi 6 5G CPE that supports 4/5G communication, dual-band Wi-Fi6 (AX3000), supports 802.11AX protocol, 160MHz bandwidth, and is configured 4*1Gbps Ethernet ports. The device battery power supply to ensure that users can continue to connect to the Internet when power is off. The software supports NAT, DHCP, firewall and VPN functions.
It is suitable for various scenarios such as enterprises, homes, and industry applications with high network requirements, providing users with reliable and high-speed 5G wireless broadband network access.

Specifications

Dimensions	16065196mm
Weight	500g
Standard	5G NR SA/NSA、LTE:CAT 19(DL) CAT 18(UL)
Network mode	NR FR1,SA/NSA
CA/EN-DC	NSA: 1 NR + 4 LTE / 2 NR + 3 LTE SA:2 NR CA / 4G CA:5CC
MIMO	DL MIMO 44 / UL MIMO 22
Peak Throughput	4.7Gbps (DL) / 1.25Gbps (UL)
Wi-Fi	Dual Band Wi-Fi 6 /AX3000 / MIMO 2*2
Wi-Fi Concurrent	2.4G: 64 Users / 5.8G: 64 Users
MESH/WPS	MESH
NFC Wi-Fi	NFC One-Touch Wi-Fionly for Android
Port	2.5GE * 1 / GE * 3 / SD CARD Slot x 1 SMA external Antenna (optional) DC/TYPE-C Quick Charge
Battery	3.7V/10000mAH (Optional) Working Hour:6H
